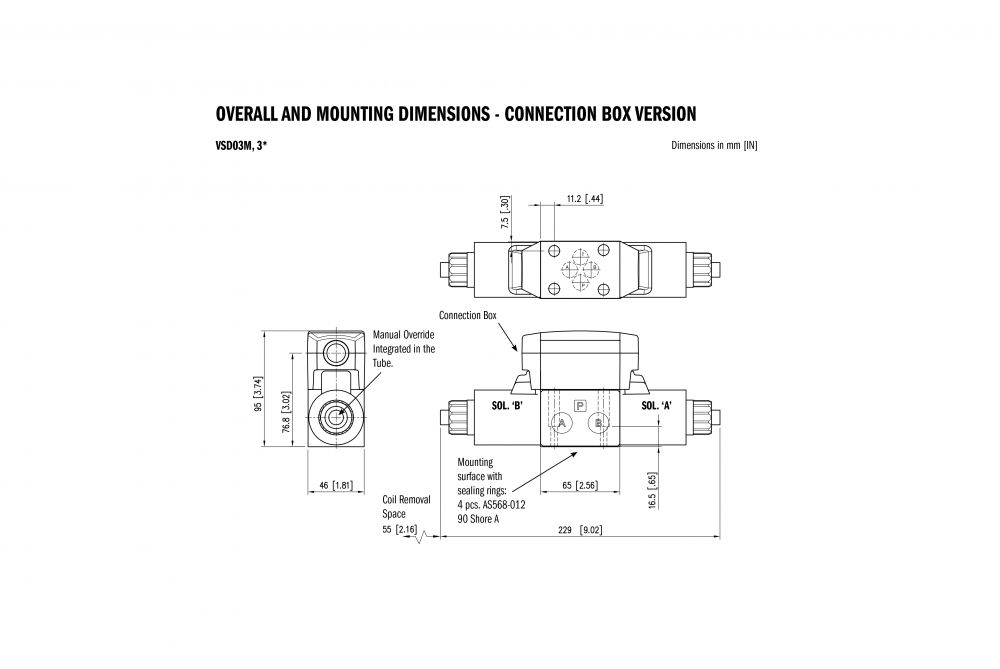

  • VSD03M-S Directional Control Valve Overall Dimensions

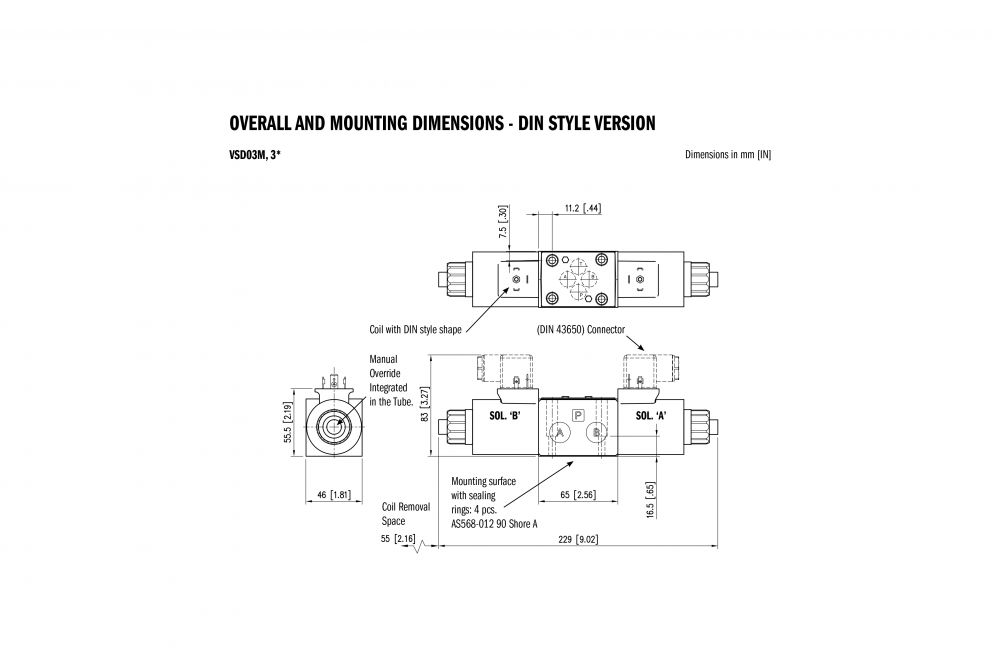

  • VSD03M-S Directional Control Valve Overall Dimensions

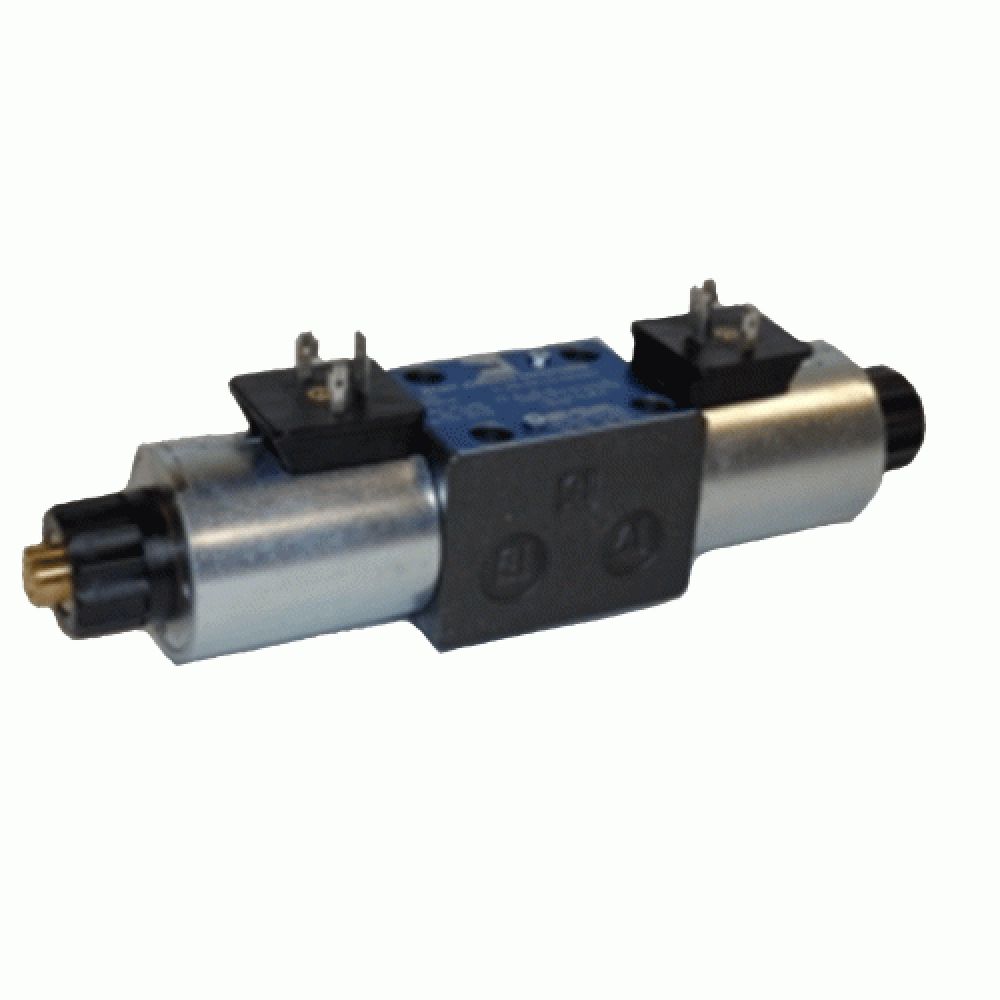

Continental Hydraulics VSD03M*-S – Directional Control Anti-Shock Valve

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VSD03M*-S valves conform to NFPA D03 and ISO 4401 mounting standards. As the valve spool shifts, the spool lands cross-over the valve body ports. This can produce high instantaneous flow rates.
The anti-shock valve provides a slow spool movement; slower than that of a standard directional valve. This results in reduction or elimination of hydraulic system shock produced by the spool
movement and high flow rates.

Product Specification

Description Units
Maximum Operating Pressure P – A – B Ports 5000 psi / 350 bar
Maximum Operating Pressure T Ports 3000 psi / 210 bar
Flow Rate  20gpm / 76 l/min
Mounting Surface NFPA D03
ISO 4401-03-02-0-03
Maximum Weight 4.6lbs / 2.1kg
Ambient Temperature Range -4 to +130°F / 20 to 54°C
Fluid Temperature Range -4 to 180°F / -20 to +82°C
Fluid Viscosity Range 60 – 1900 SUS / 10 -400cSt
Recommended Fluid Viscosity 120 SUS / 25cSt
Fluid Contamination ISO 4406:1999 Class 20/18/15

Continental Hydraulics – VSD03M*-S – Directional Control Anti-Shock Valve Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Directional Control Valves

Direct Solenoid Operated
