  • Daikin KSPS - Direct Type Servo Valve

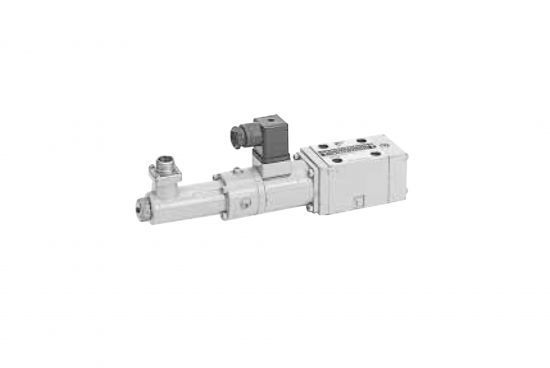

Daikin KSPS – Direct Type Servo Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

  • The Daikin KSPS Direct Type Valve has a exclusive driver, it can have a high response and suits the closed loop controls of position, speed and pressure for a main machine's actuator. (Frequency response: 130Hz/-3dB=10% amplitude)
  • Since a proportional solenoid directly drives a spool, the leak volume can keep a smaller value compared to a nozzle flapper type servo valve.
  • When an exclusive driver is used, it becomes all port block (fail safe function) at power off.

Product Specification

Model Code Max
Operating
Pressure
Rated
Flow Rate
Permissible
Back
Pressure
Solenoid
Rated Voltage
Max
Current
Weight
 KSPS-G02-1*-10  35 MPa {350 kg/cm²} 10 L/min 2.5 MPa {25 kgf/cm²} DC12 V 1700 mA 2.5 kg
 KSPS-G02-2*-10  35 MPa {350 kg/cm²} 20 L/min 2.5 MPa {25 kgf/cm²} DC12 V 1700 mA 2.5 kg
 KSPS-G02-4*-10  35 MPa {350 kg/cm²} 40 L/min 2.5 MPa {25 kgf/cm²} DC12 V 1700 mA 2.5 kg
 KSPS-G02-1*-10-E  35 MPa {350 kg/cm²} 10 L/min 16 MPa {160 kgf/cm²} DC12 V 1700 mA 2.5 kg
 KSPS-G02-2*-10-E  35 MPa {350 kg/cm²} 20 L/min 16 MPa {160 kgf/cm²} DC12 V 1700 mA 2.5 kg
 KSPS-G02-4*-10-E  35 MPa {350 kg/cm²} 40 L/min 16 MPa {160 kgf/cm²} DC12 V 1700 mA 2.5 kg

Daikin – KSPS – Direct Type Servo Valve – Datasheet

Additional Information

Manufacturer

Daikin

Proportional Products

High Response Servo Proportional Valves
