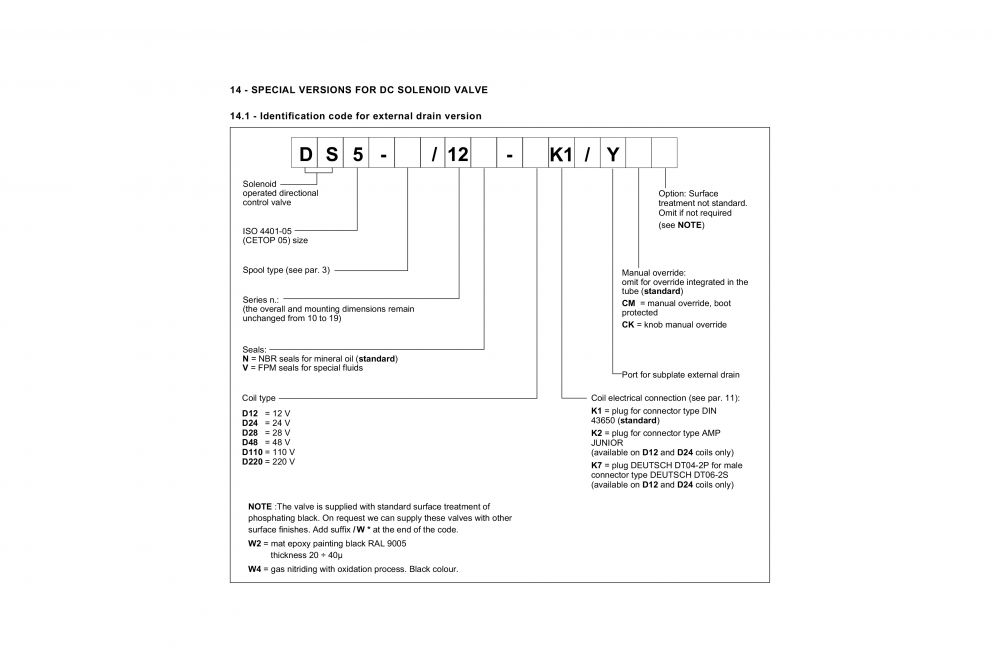

  • Duplomatic DS5 - Special Version Ordering Information

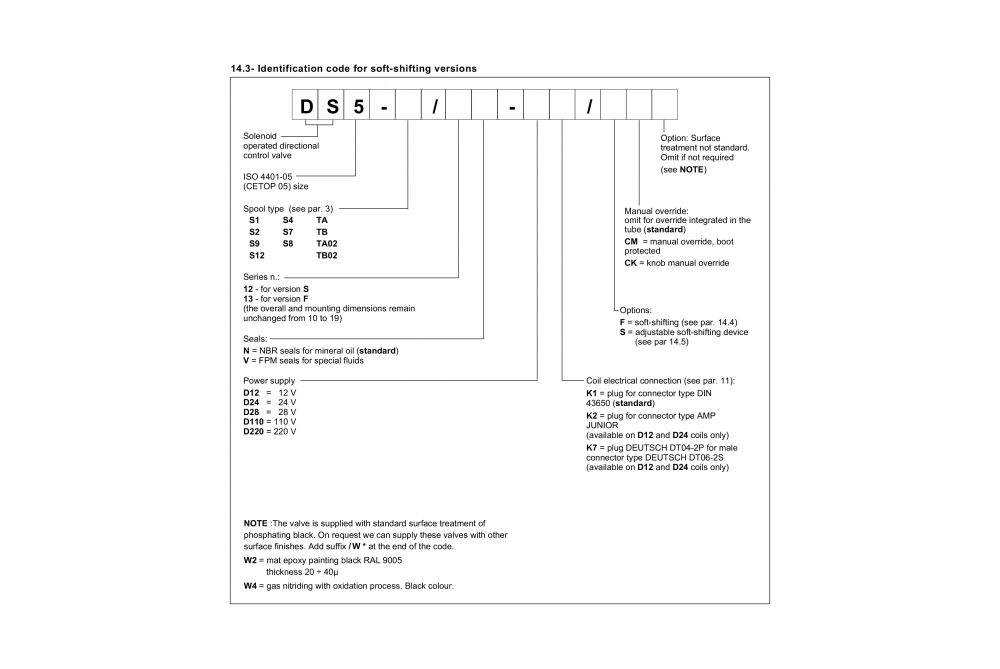

  • Duplomatic DS5 - Soft Shifting Ordering Information
  • Duplomatic DS5 - Ordering Information
  • Duplomatic DS5 - DC Mounting Dimensions
  • Duplomatic DS5 - AC Mounting Dimensions

Duplomatic DS5 – Solenoid Operated Directional Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

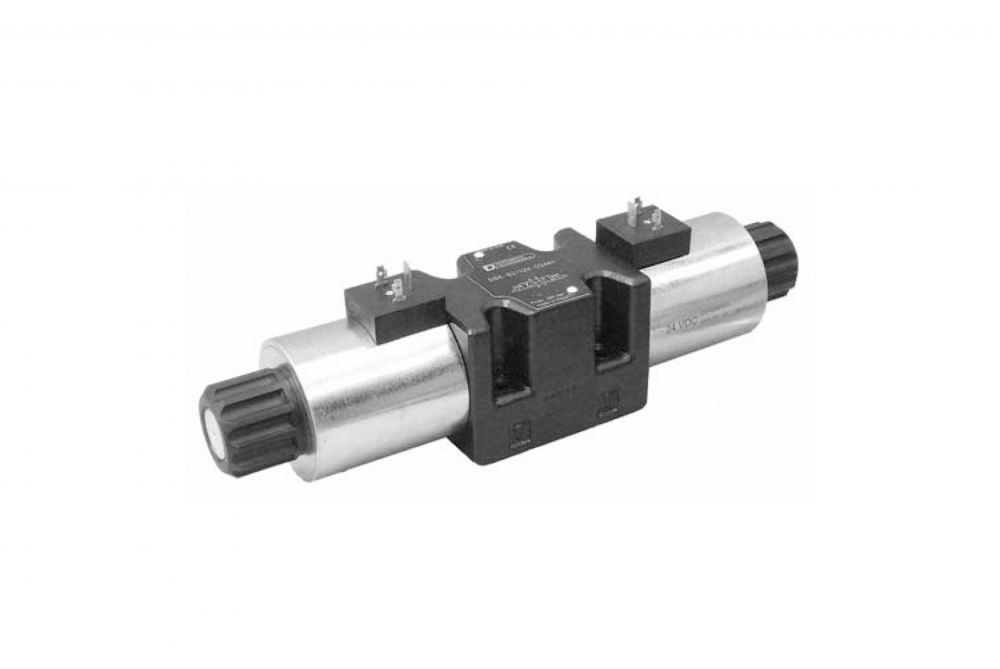

The Duplomatic DS5 Direct acting, subplate mounting directional control hydraulic valve, CETOP 05, with mounting surface according to ISO 4401 (CETOP RP121H).

The valve is supplied with 3 or 4 way designs and with several interchangeable spools with different porting arrangements.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with interchangeable coils are used.

The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built-in rectifier bridge.

The DC solenoids DS5 directional valve is available in the following special versions:

– version with Y external subplate drain port
– version with soft-shifting
– version with adjustable “soft-shift” device.

Product Specification

Description DC AC
Maximum Operating Pressure – Ports P – A – B 320 bar 320 bar
Maximum Operating Pressure -T Port Standard Version 210 bar 140 bar
Maximum Operating Pressure -T Port version with Y Port (Ext Drain) 320 bar
Maximum Flow Rate  150 l/min 120 /min
Ambient Temperature Range -20 / +50°C  -20 / +50°C
Fluid Temperature Range  -20 / +80°C   -20 / +80°C
Fluid Viscosity Range 10 ÷ 400 cSt  10 ÷ 400 cSt
Fluid Contamination Degree  According to ISO 4406:1999
Class 20/18/15
According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity  25 cSt   25 cSt
Single Solenoid Valve Mass  4,5 kg 3,6 kg
Double Solenoid Valve Mass  6,1 kg  4,3 kg

Duplomatic – DS5 – Solenoid Operated Directional Control Valve – Data Sheet
