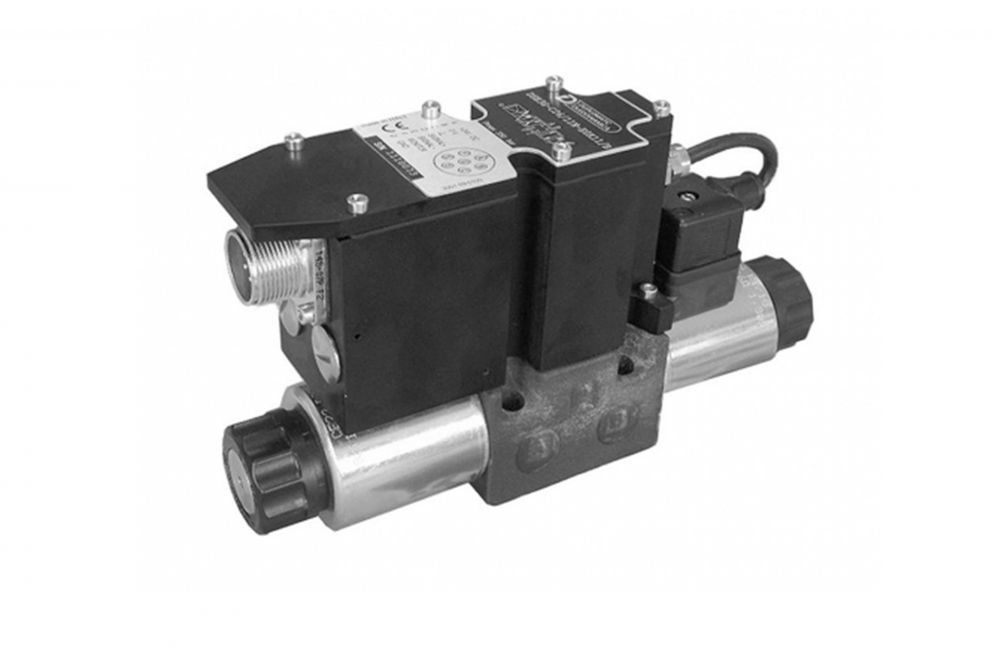

Duplomatic DSE3G - Directional proportional valve - On Board Electronics

Auburn Gear
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

The DSE3G is a direct operated directional proportional valve, CETOP 03, with integrated electronics and mounting interface in compliance with ISO 4401 (CETOP RP 121H) standards. It is normally used to control the positioning and the speed of hydraulic actuators. The valve opening and hence flow rate can be modulated continuously in proportion to the reference signal. The valve is controlled directly by an integrated digital amplifier.


Description Units
Max Operating Pressure P - A - B Ports 350 bar
Max Operating Pressure T Port 210 Bar
Maximum Flow with 10 Bar P - T 4 - 8 - 16 - 26 l/min
Hysteresis (with PWM 200 Hz) < 3 % Q Max
Repeatability < 1 % of Q Max
Ambient Temperature Range -20 / 60°C
Fluid Temperature Range - 20 / 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 18/16/13
Recommended Viscosity 25 cSt
Mass Single Solenoid Valve 1.9 Kg
Mass Double Solenoid Valve 2.4 Kg
