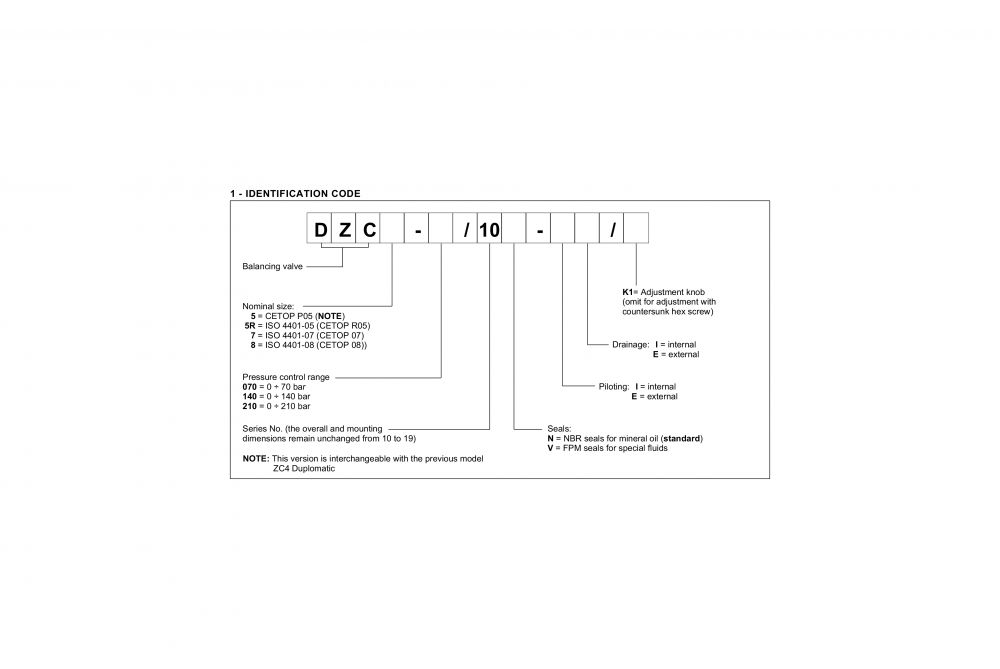

  • Duplomatic DZC - Ordering Information

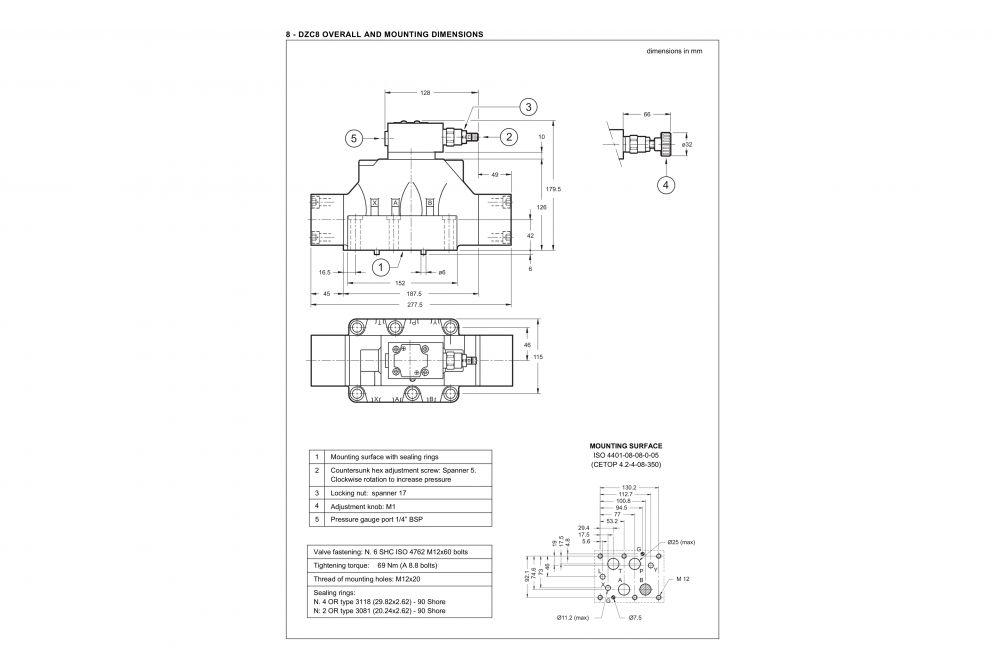

  • Duplomatic DZC8 - Mounting Dimensions
  • Duplomatic DZC7 - Mounting Dimensions
  • Duplomatic DZC5 - Mounting Dimensions

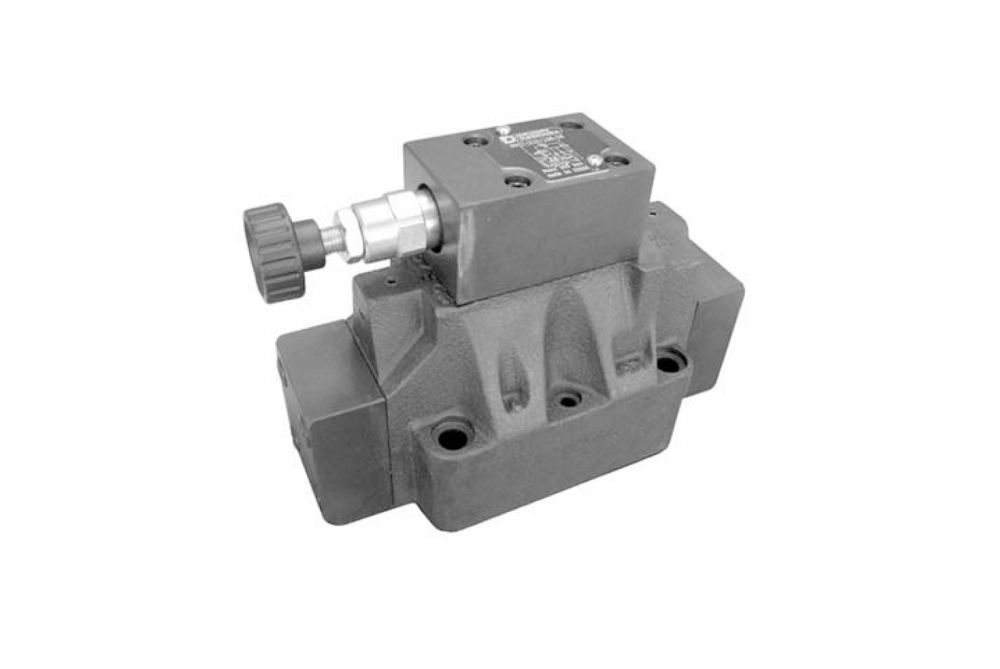

Duplomatic DZC* – Balancing Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic DZC* balancing valves act as pressure reducing valves that, besides reducing the pressure from line P to user A, allow the flow to return from user A to discharge T when a pressure greater than the set value is generated in the downstream circuit (user A) (a typical case of hydraulic counterweight or load balancing).
They have a mounting surface in accordance with ISO 4401 (CETOP RP121H) standards. Port B is never used.
They are available in three different sizes for flow rates up to 500 l/min.

Product Specification

Description DZC5
DZC5R
DZC7 DZC8
Maximum Operating Pressure 350 bar 350 bar 350 bar
Maximum Flow 150 l/min 300 l/min 500 l/min
Ambient Temperature Range -20 / +50ºC -20 / +50ºC -20 / +50ºC
Fluid Temperature Range -20 / +80ºC -20 / +80ºC -20 / +80ºC
Recommended Filtration 10 ÷ 400 cSt 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15 According to ISO 4406:1999 Class 20/18/15 According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt 25 cSt
Mass 6,5 kg 8,7 kg 15 kg

Duplomatic – DZC* – Balancing Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Pressure Relief Valves

Sequence and Balance Valves
