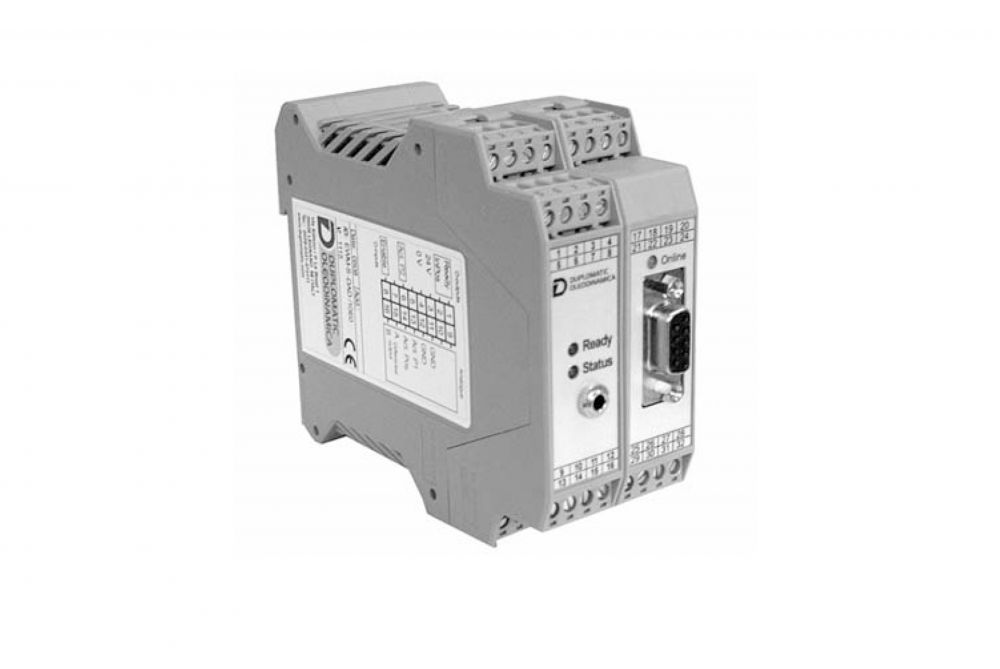

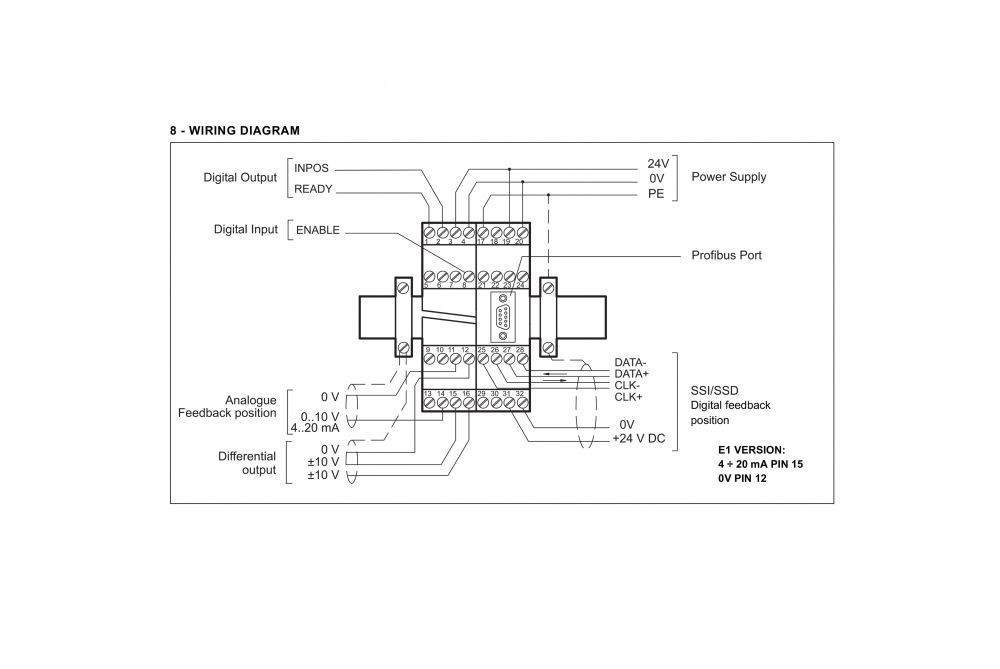

The Duplomatic EWM-S-DAD card has been developed to drive the positioning of the hydraulics actuators where an high accuracy is needed, using a digital sensor with SSI interface to measure the positions, or an analog sensor with an accuracy of up to 0,01% The card works as an axis controller and communicates with the PLC via the integrated Profibus interface.

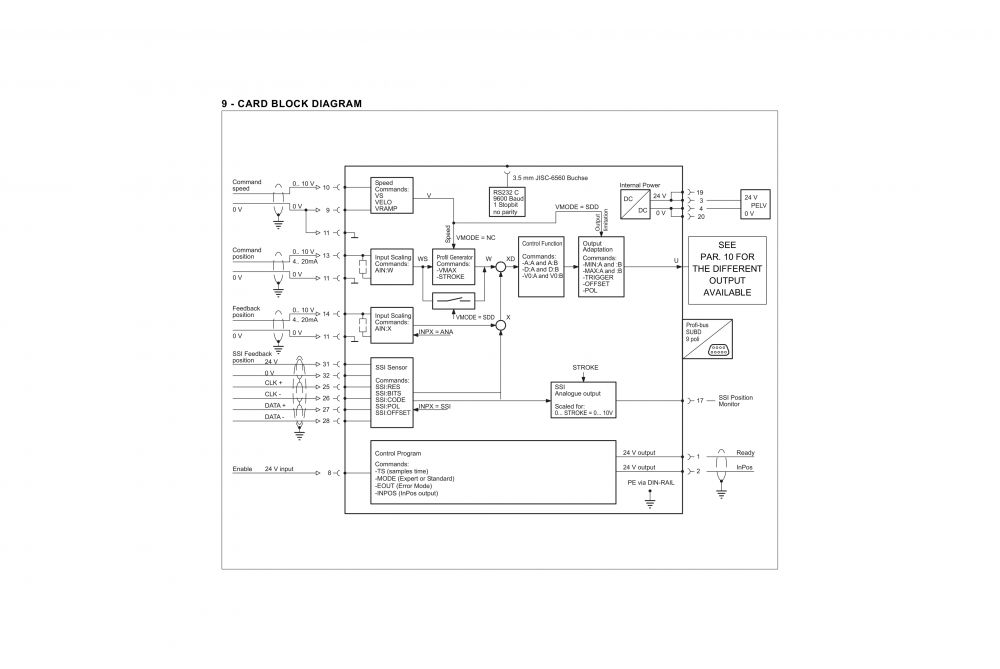

The card works in two ways: stroke depending deceleration or NC mode. The card allows an optimal use of overlapped and zero overlapped proportional valves. The card use the RS232C interface, and is settable via notebook, using the software kit (EWMPC).
| Description | Units |
|---|---|
| Power Supply | 12 ÷ 30 VDC Ripple Included - External Fuse 1.0 A |
| Current Consumption | 100 mA Sensor Power Consumption |
| Command Value | Via Profibus - ID number 1810h |
| Feedback Value - Digital | digital sesnor with any interface SSI |
| Feedback Value - Analogue | 0 ÷ 10 V (Rι = 25 kΩ) |
| Position Accuracy - Digital | 4 ÷ 20 mA (Rι = 250 kΩ) |
| Position Accuracy - Analogue | 2 bits of Sensor Resolution 0.01% |
| Output Value - E0 Version | 10 (Max Load 5 mA) |
| Output Value - E1 Version | 4 ÷ 20 mA (max load 390Ω) |
| Interface | RS 232 C |
| Electromagnetic Compatability (EMC): According to 2004/108/CE standards | Emissions EN 61000-6-3 Immunity EN 61000-6-2 |
| Housing Material | Thermoplastic Polyamide PA6.6 Combustibility Class V0 (UL94) |
| Housing Dimensions | 120 (d) x 99(h) x 46 (w) mm |
| Connector | 4 x 4 Pole Screw Teminals - PE direct via DIN rail |
| Operating Temperature Range | -20 / 60°C |
| Protection Degree | IP20 |
