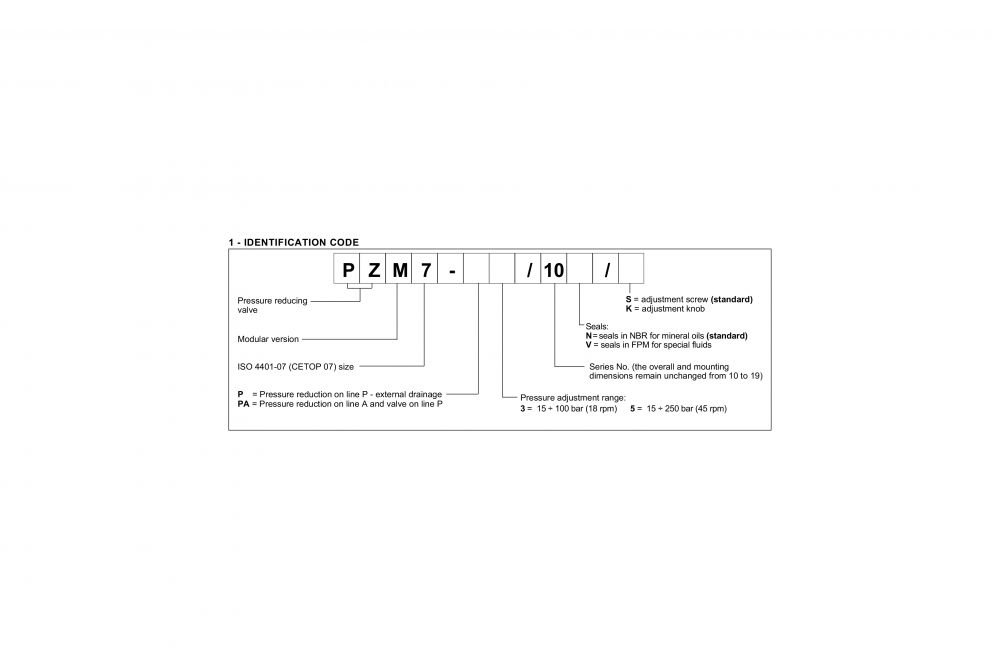

  • Duplomatic PZM7 - Ordering Information

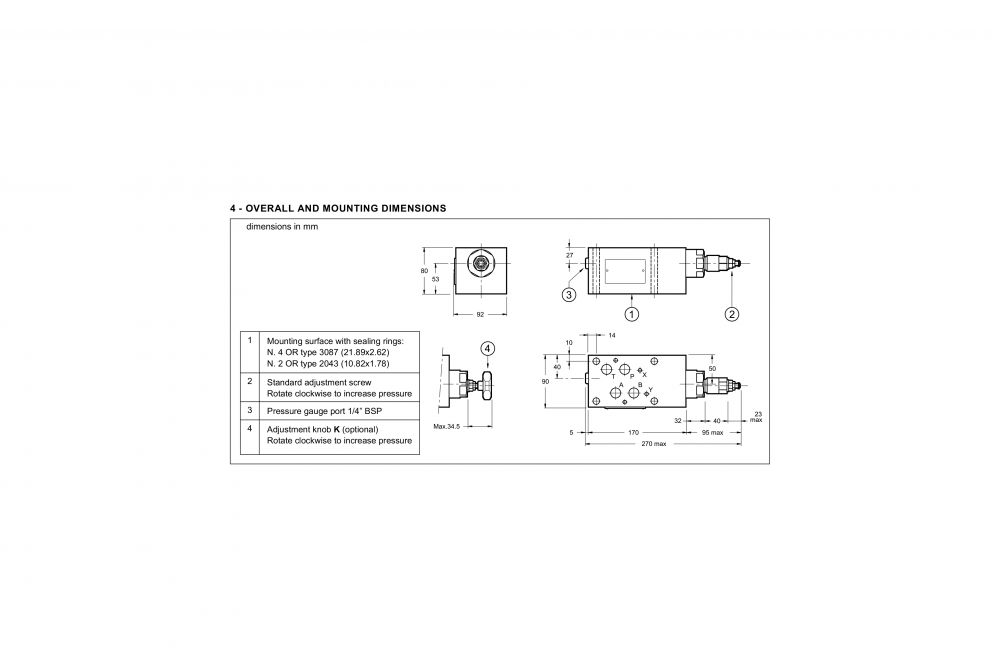

  • Duplomatic PZM7 - Mounting Dimensions

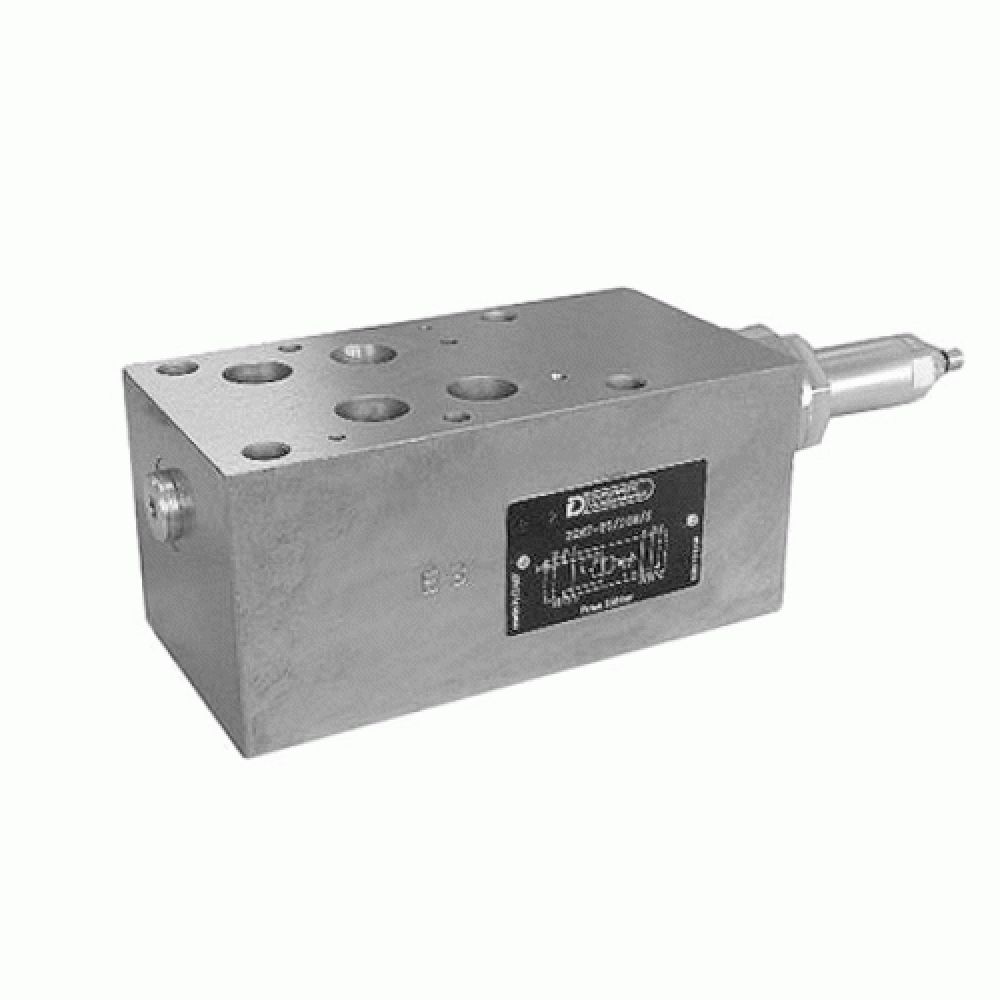

Duplomatic PZM7 – Pressure Reducing Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.The Duplomatic PZM7 valve is made as a modular valve and has a mounting surface according to the ISO 4401 (CETOP RP 121H) standards.
It is a two-stage type and is used to assure stability of the controlled pressure, even changing the flow that travels through the valve.
The PZM7M valve can be assembled quickly under the DSP7 directional valves (see catalogue 41 420) without use of pipes, using suitable tie-rods or bolts, forming compact modular groups.
It is normally supplied with an adjustment knob.

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow Rate 50 l/min
Drainage Flow Rate ≤ 0,8 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 / +80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Mass 8,65 kg

Duplomatic – MZD – Direct Operated Three Way Pressure Reducing Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Pressure Control Relief Valves
