Duplomatic RPCE2-* - Pilot Operated Flow Control Proportional Valves

Duplomatic
Contact us for current availability
View all specifications
~ scroll down to find the part you need ~


Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

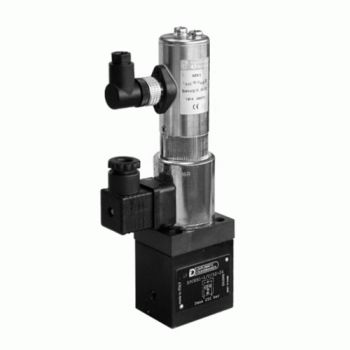

The Duplomatic RPCE2-* are two-way or three-way flow control proportional valves with pressure and thermal compensation, CETOP 06, and mounting interface in compliance with ISO 6263 (CETOP RP 121H) standards. These valves are normally used for flow rate control in hydraulic circuit branches and for speed control of hydraulic actuators. Flow rate can be modulated continuously in proportion to the current supplied to the solenoid. The valve can be controlled directly by a current control supply unit or by means of the relative electronic control units which enable optimal valve performance.

The valves are available in three flow control ranges: two with progressive gain up to 72 l/min and the third with differential gain of 30 l/min. To ensure correct valve operation, maintain a minimum pilot control flow rate of 2 l/min and minimum pressure of 20 bar. Pilot control can be internal, with intake of oil from line E, or external from a line with 1/4” BSP connection on the pilot body. Drainage is always external and must be connected directly to the tank without backpressure by means of subplate connection Y (OR ø 35) or by means of a line (1/4” BSP coupling) on the pilot body.

The three-way version RPCE2-70-T3 allows flow control to the circuit by dumping the exceeding flow to the tank. Maximum pressure in the circuit is limited by means of a manual adjustment relief valve which operates on the compensator pilot. RPCE2-70-T3 valve is also available in M version, which allows, by means of an electric control, to unload the total flow with a minimum pressure drop.


Description Units
Maximum Working Pressure 250 Bar
Minimum P between E and U ports 10 Bar
Min Piloting Pressures 20 Bar
Max Piloting Pressures 160 Bar
Maximum Controlled Flow E → U (RPCE2-*) 30 - 37 - 72 l/min
Maximum Controlled Flow (RPCE2-70-T3) 80 l/min
Minimum Controlled Flow with P=100 bar (Versions 35 and 70) 0.5 l/min
Minimum Controlled Flow with P=100 bar (Versions 30G) 0.2 l/min
Maximum Free Reverse Flow U → E 60 l/min
Hysteresis (with PWM 100 Hz) <8% of Q Max
Repeatability < 3% of Q Max
Ambient Temperature Range -10 / 50 °C
Fluid Temperature Range -20 / 80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 class 18/16/13
Recommended Viscosity 25 cSt
Mass RPCE2-70-T3 7.2Kg
Mass RPCE2-70-T3M 9Kg
