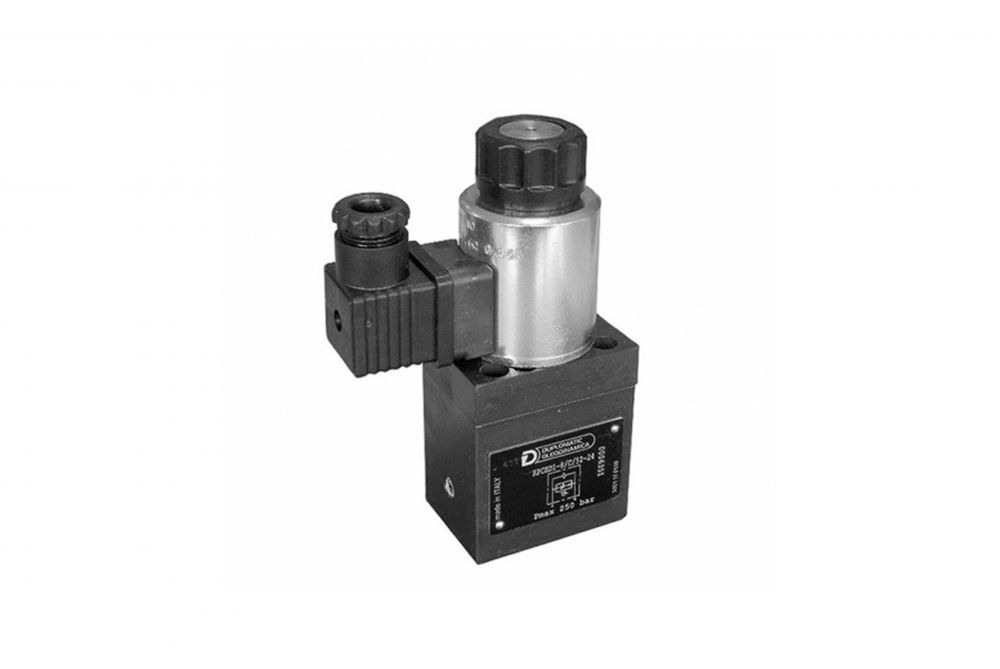

  • Duplomatic RPCED1-*/T3 - 3-Way Flow Control Proportional Valve

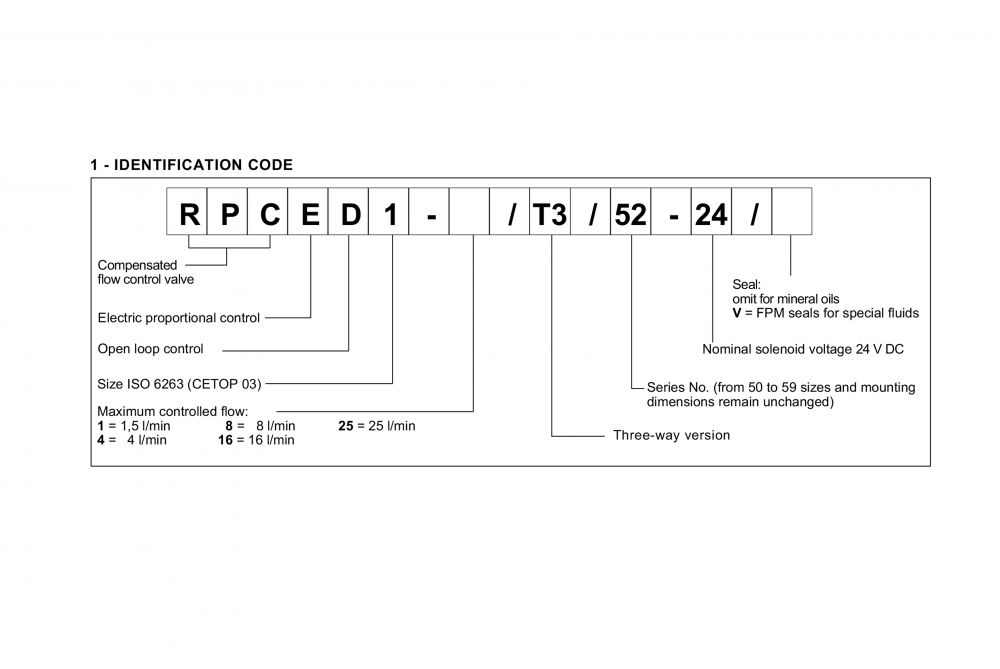

  • Duplomatic RPCED1-*/T3 - 3-Way Flow Control Proportional Valve Ordering Information

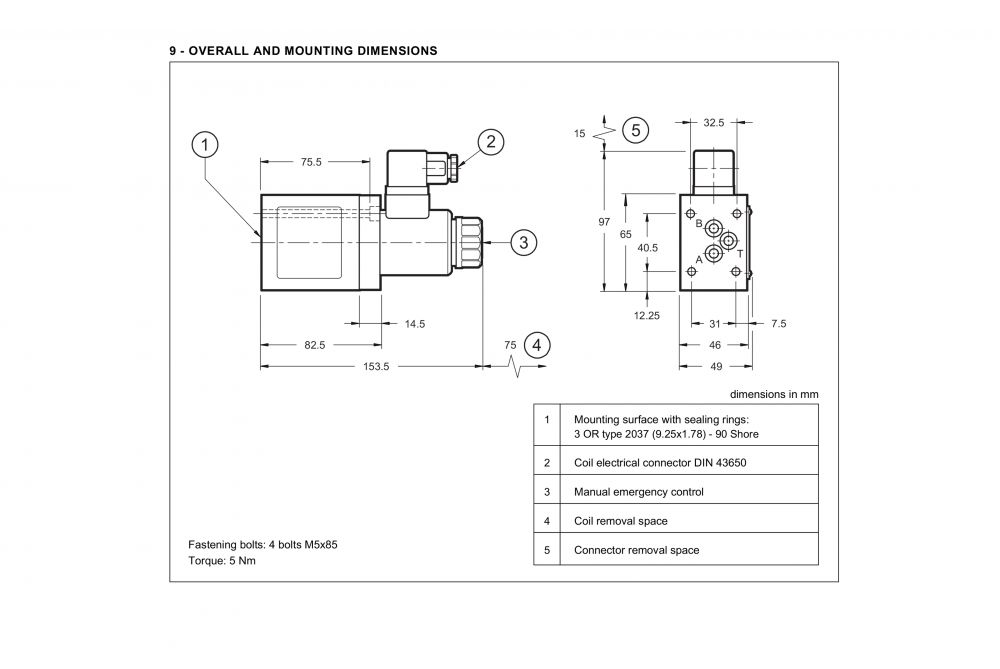

  • Duplomatic RPCED1-*/T3 - 3-Way Flow Control Proportional Valve Mounting Dimensions

Duplomatic RPCED1-*/T3 – 3-way flow control proportional valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

The Duplomatic RPCED1-*/T3 is a three-way flow control proportional valve, pressure and temperature compensated, CETOP 03, with mounting interface in compliance with ISO 6263 (CETOP RP121H) standards.

This valve controls the flow to the circuit, by dumping the exceeding oil flow to the tank.

Flow rate can be modulated continuously in proportion to the current supplied to the solenoid.

The valve can be controlled directly by a current control supply unit or by means of the relative electronic control units to exploit valve performance to the full.

It is available in five flow rate control ranges up to 25 l/min.

Product Specification

Description Units
Maximum Operating Pressure 250 Bar
Minimum P between A and B port 8 Bar
Maximum Controlled Flow 1, 5 – 4 – 8 – 16 – 25 l/min
Min. Controlled Flow (for 1 and 4 l/min. reg.) 0.025 l/min
Hysteresis (PWM 100) <6 % of P nom
Repeatability <+2.5 % of P nom
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range – 20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree
According to ISO 4406:1999
class 18/16/13
(class 17/15/12 for flows < 0,5 l/min)
Recommended Viscosity 25 cSt
Mass 1.5Kg

Duplomatic – RPCED1-*/T3 – 3-way flow control proportional valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Proportional Products

Flow Control Proportional Valves
