Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

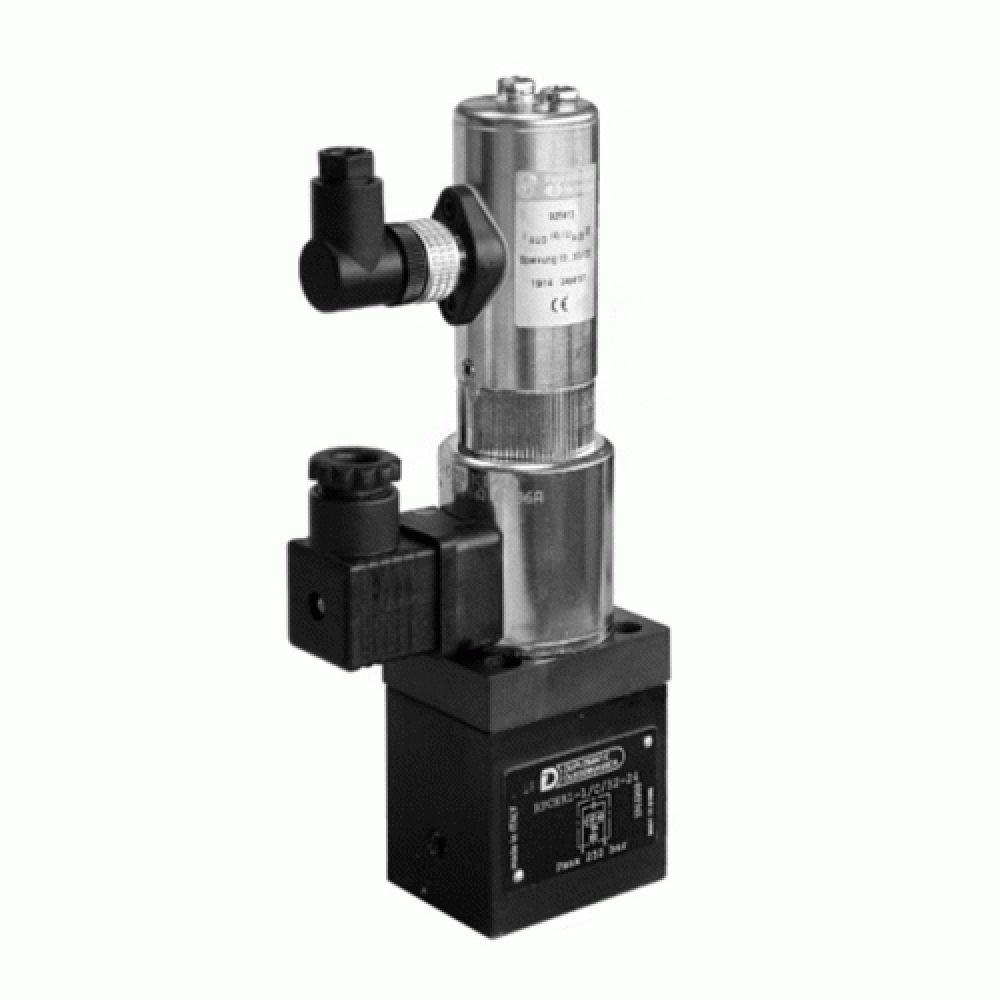

The Duplomatic RPCER1 valves is a pressure and temperature compensated two-way flow control proportional valve, CETOP 03, with mounting interface in accordance with the ISO 6263 (CETOP RP121H) standards. The position feedback of the flow rate controlling throttle gives regulation conditions featuring highly reduced hysteresis and high repeatability. It is normally used to control the flow rate into an arm of the hydraulic circuit or the speed of the hydraulic actuators.
The flow rate can be modulated continuously in proportion to the reference signal sent to the electronic control unit. It is available in five flow rate control ranges up to 25 l/min
| Description | Units |
|---|---|
| Maximum Operating Pressure | 250 Bar |
| Minimum P between A and B port | 10 Bar |
| Maximum Controlled Flow | 1, 5 - 4 - 8 - 16 - 25 l/min |
| Min. Controlled Flow (for 1 and 4 l/min. reg.) | 0.025 l/min |
| Maximum Free-Reverse Flow | 40 l/min |
| Hysteresis (with PWM 100 Hz) | <2.5 % of P nom |
| Repeatability | < 1 % of P nom |
| Ambient Temperature Range | -10 / 50°C |
| Fluid Temperature Range | - 20 / 80°C |
| Fluid Viscosity Range | 10 ÷ 400 cSt |
| Fluid Contamination Degree |
According to ISO 4406:1999
class 18/16/13
(class 17/15/12 for flows < 0,5 l/min)
|
| Recommended Viscosity | 25 cSt |
| Mass | 2.2 Kg |
