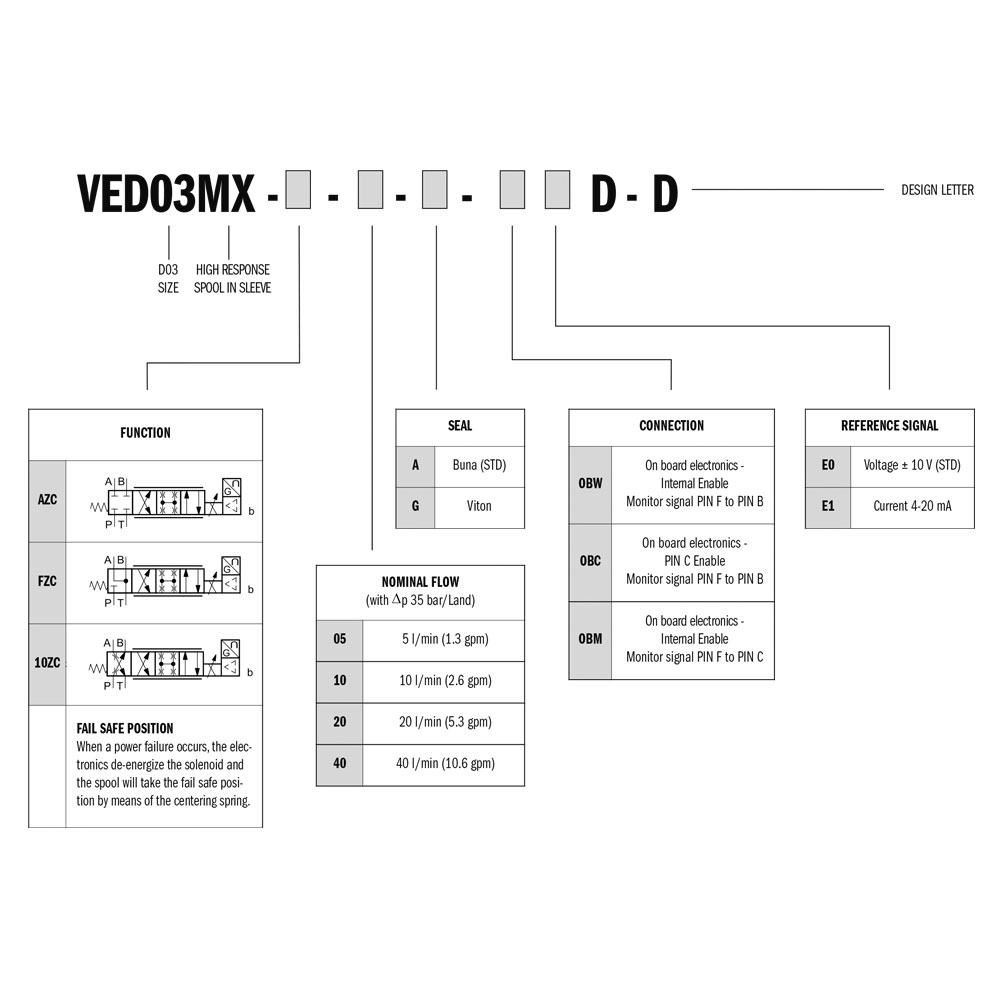

  • Continental Hydraulics VED*MX - Ordering Information

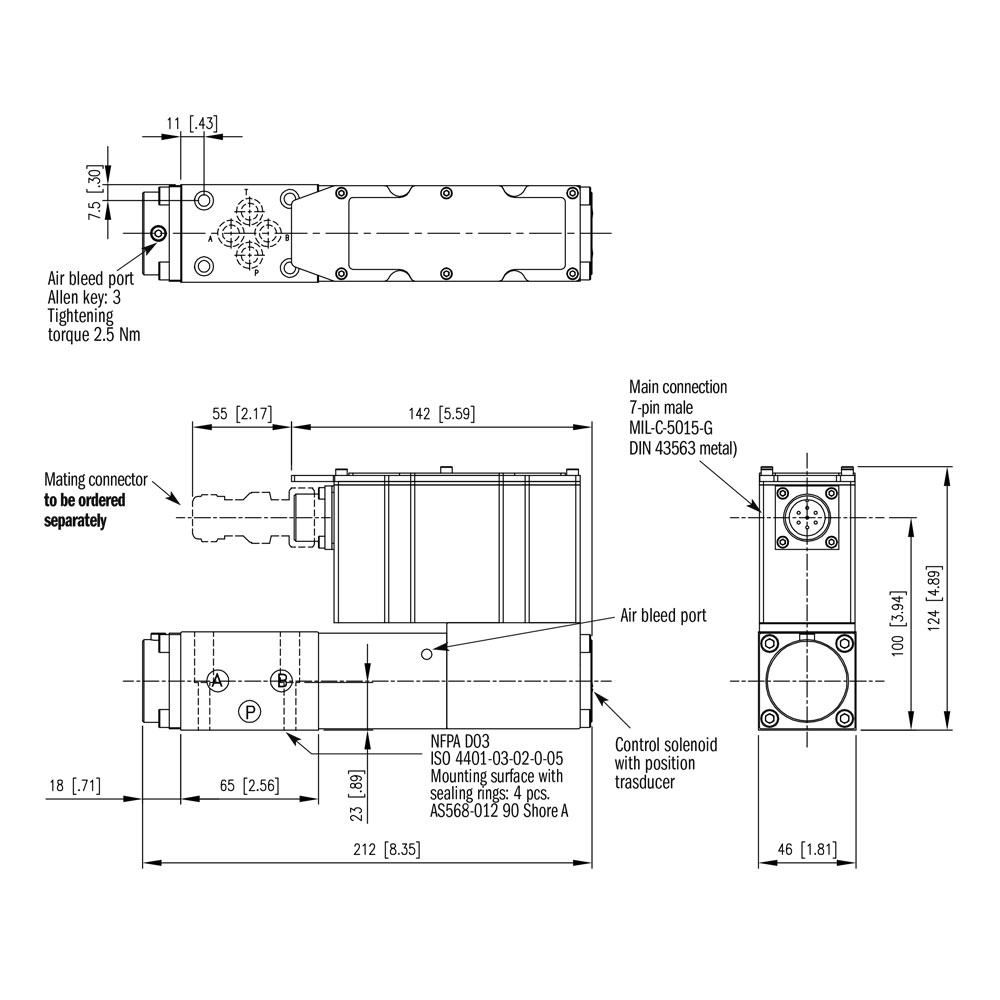

  • Continental Hydraulics VED*MX - Dimensions
  • Continental Hydraulics VED*MX - Dimensions
  • Continental Hydraulics VED*MX - Dimensions

Continental Hydraulics VED*MX – High Performance Proportional Directional Control Valve

~ scroll down to find the part you need ~

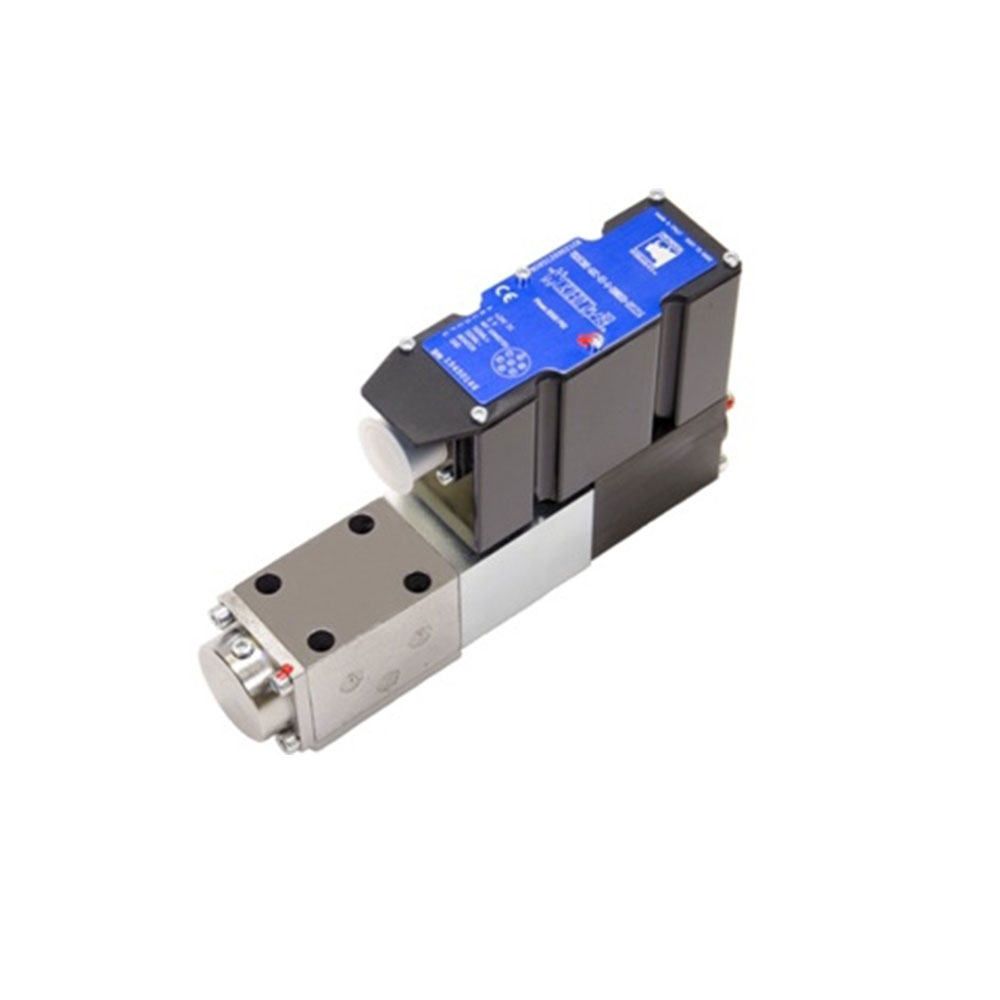

Continental Hydraulics VED03MX, High Response 4-way proportional valve with precision lapped Spool, Dual position sensing LVDT’s and Enhanced On-Board Digital Amplifier.

Features and Operation

The VED*MX pilot operated 4-way Proportional valves, conform to NFPA and ISO 4401:2005 (CETOP RP 121H) mounting standards.

The main spool position is controlled by highly dynamic pilot valve in closed loop via linear transducer LVDT for high precision, repeatability and increased control.

  • High flow pilot valve for high performance over a wide range of pilot pressures

  • On-Board Digital Control resulting in extremely low Phase Lag and high frequency operation
  • High performance Pilot Valve

  • High Precision Lap Spools
  • Dual Spool position feedback

  • Class leading High frequency response

Product Specification

Description VED05MX VED07MX VED08MX
Flow Capacity  100 L/min  120 – 200 L/min  250 – 400 L/min
Max Flow  180L/min  450 L/min  900 L/min
Peak Pilot Flow Requirements  7 L/min  13 L/min  28 L/min
Mounting Surface  NFPA D05
ISO 4401-05-*-0-05
 NFPA D07
ISO 4401-07-07-0-05
 NFPA D08
ISO 4401-08-08-0-05
Weight  8.5 kg  10.5 kg  17 kg

Continental Hydraulics – VED*MX – High Performance Proportional Directional Control Valve

Additional Information

Proportional Products

High Performance Servo-Proportional Directional Control

Manufacturer

Continental Hydraulics
