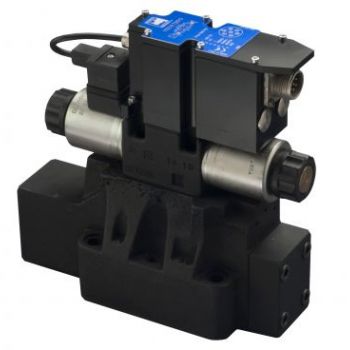

Continental Hydraulics – VED05MG Proportional Directional Control Valves with On Board Electronics

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VED05MG direct operated 4-way proportional valves with On-Board Digital Amplifier conform to NFPA D05/ISO 4401-05 mounting standards.

These valves are designed to control the direction and oil flow rate based on the degree of command signal supplied to the On-Board Amplifier. In event of a loss in electrical power, the centering springs will return the valve spool to the center position.

The On-Board microprocessor controls all the valve functions and is pre-set to optimal valve performance. In-field adjustments can be performed via software to customize the parameters based on your application needs.

Product Specification

Description Units
Maximum Operating Pressure P – A – B Ports 4600 psi / 320 bar
Maximum Operating Pressure T Port 3000 psi / 210 Bar
Flow Capacity with ∆P 145 PSI (10 Bar) AC/FC-30 8 gpm / 30 l/min
Flow Capacity with ∆P 145 PSI (10 Bar) AC/FC-60 16 gpm / 60 l/min
Mounting Surface NFPA D03
ISO 4401-05-04-0-05
Step Response 0 → 100% 50 ms
Step Response 100% → 0% 70ms
Power Supply 24v DC
Connection 7 pin DIN 43563 metal
Protection IEC 60529 IP67
Single Solenoid Weight 11.2 lbs / 5.1 kg
Dual Solenoid Weight 14.6 lbs / 6.6 kg
Ambient Temperature Range -4 to 130 °F / -20 to +54 °C
Fluid Temperature Range -4 to +180 °F / -20 +82 °C
Fluid Viscosity Range 60 – 1900 SUS / 10 -400 cSt
Recommended Fluid Viscosity 120 SUS / 25cSt
Fluid Contamination ISO 4406:1999 Class 18/16/13

VED05MG Proportional Directional Control Valves with On Board Electronics – Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Proportional Products

Directional Control with On-Board Control
