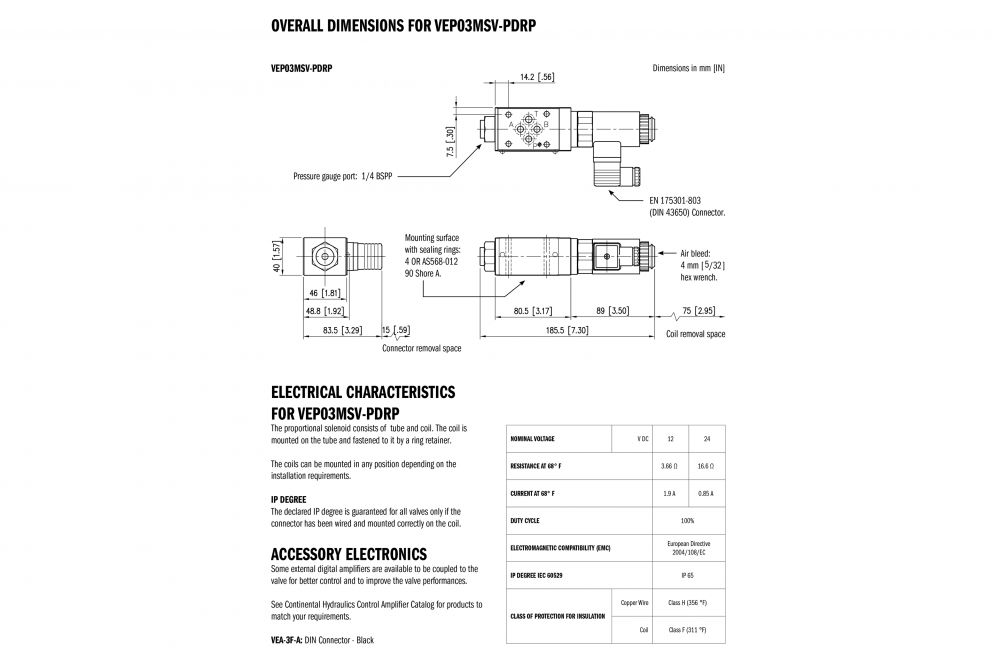

  • VEP03MSV - Modular Pressure Reducing Valve Overall Dimensions

Continental Hydraulics – VEP03MSV 3-WAY Modular Proportional Pressure Reducing/Relieving Valves

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

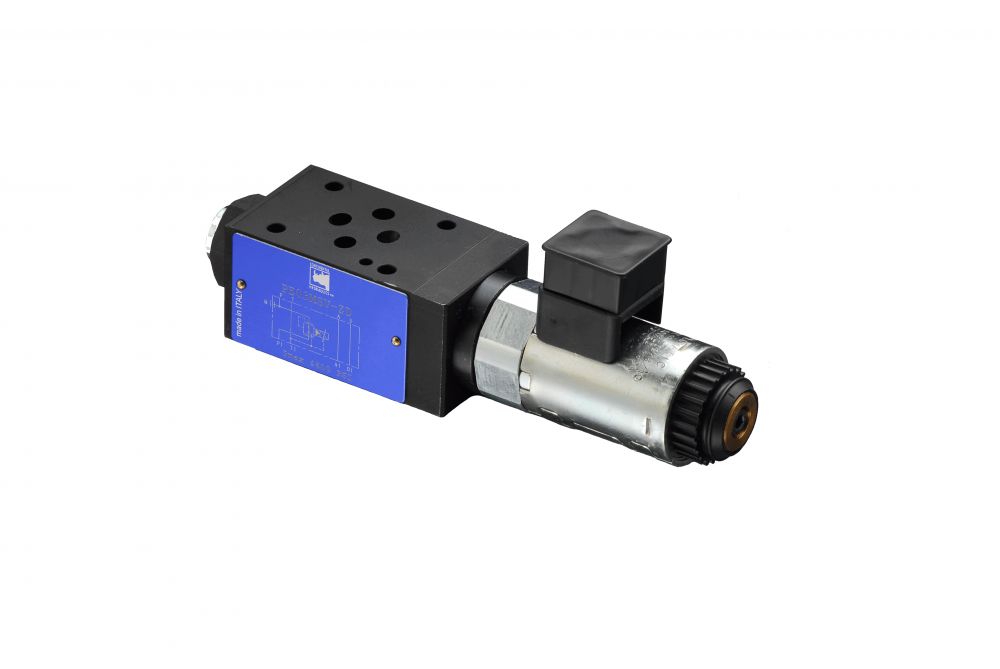

The Continental Hydraulics VEP03MSV-PDRP is a D03 modular three-way proportional pressure reducing/relieving valve which conforms to NFPA D03 and ISO 4401 mounting standards.

These valves are designed to provide remote variable pressure control in the pressure port of a secondary circuit. The controlled pressure is proportional to the amount of current supplied to the solenoid.

As flow demands change, the valve opening will modulate to maintain the circuit pressure. The VEP03MSV-PDRP will also relieve the tank to vent a load induced pressure spike. In event of a loss in electrical power, the valve spool will return to the low pressure condition.

The proportional solenoids can be driven by a variable current power supply or by use of external Power Amplifier Cards designed to maximize the valve’s performance.

Product Specification

Description Units
 Maximum Operating Pressure P – A – B Ports  4600 psi / 320 bar
 Maximum Operating Pressure T Port  30 psi / 2 bar
 Maximum Flow Rate Controlled Line  8 gpm / 30 l/min
 Maximum Flow Rate Free Lines  13.2 gpm / 50 l/min
 Maximum Flow Rate Drainage  24 in³/min / 0.4 l/min
 Mounting Surface  NFPA D03
ISO 4401-03-02-0-05
 Weight  4 lbs / 1.8 kg
 Step Response with Q = 6.6 gpm 0 → 100% 100 ms
 Step Response with Q = 6.6 gpm 100 → 0%  80 ms
 Power Supply 12v DC / 24v DC
 Connection  DIN 43650
 Protection IEC 60529  IP65

Continental Hydraulics – VEP03MSV 3-WAY Modular Proportional Pressure Reducing/Relieving Valves – Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Proportional Products

Pressure Reducing
