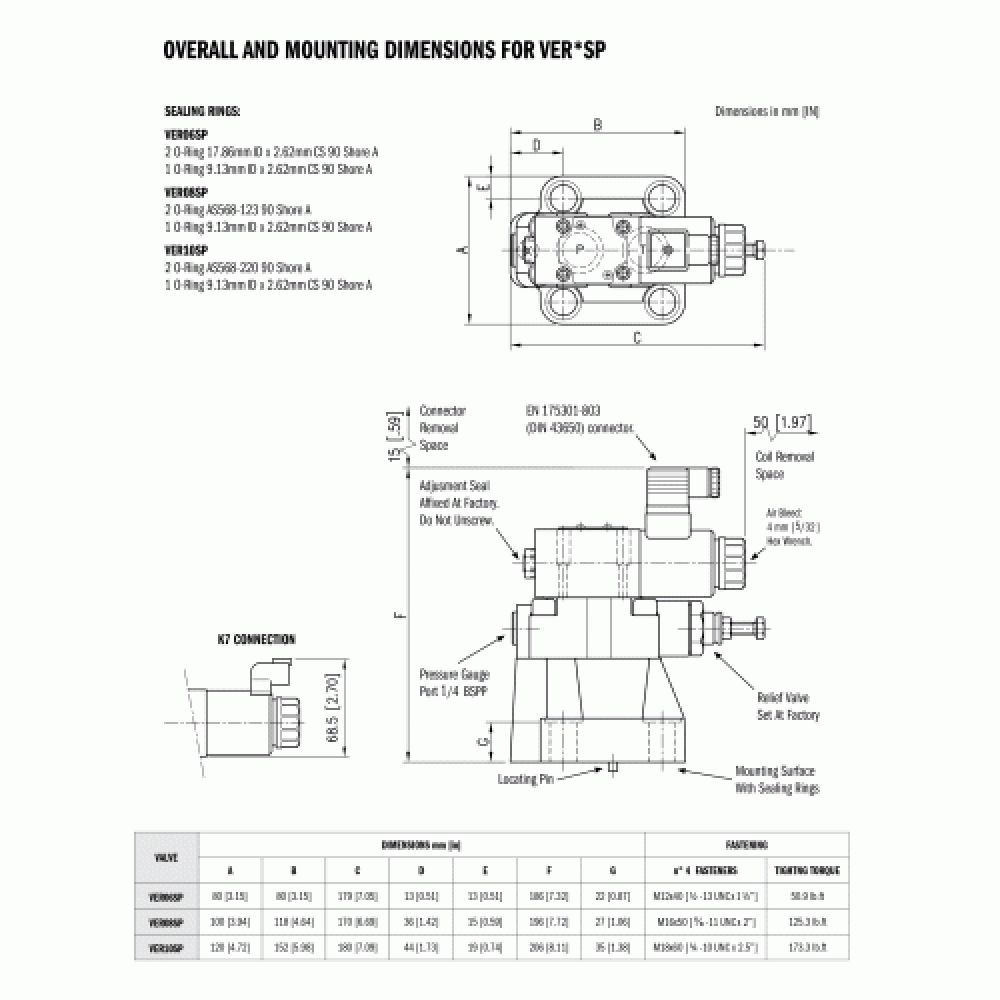

  • Continental Hydraulics VERSP - Pressure Redicing Valve Overall Dimensions

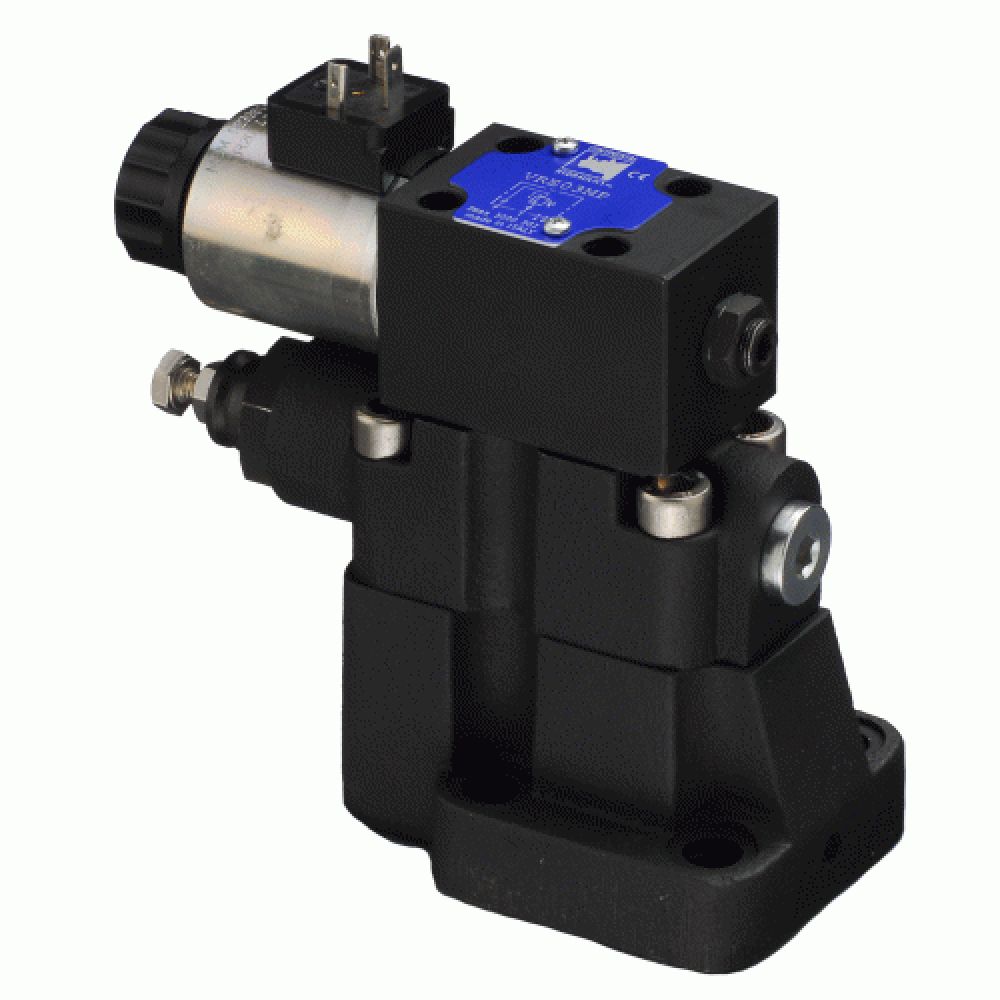

Continental Hydraulics – VER-SP Proportional Pilot Operated Pressure Relief Valves

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VER-SP valves are Proportional pilot operated pressure relief valves with subplate mounting according to NFPA T3.5.1 R2-2002 and ISO 6264:1998 standards.

Available in four proportional pressure ranges up to 5000 psi and in three nominal sizes for flow rates up to 132 gpm.

The VER-SP valves are used to provide remote and variable pressure control in a hydraulic circuit. The pressure setting is directly proportional to the input current to the solenoid.

The valve solenoid can be driven by a variable current power supply or by use of an external Power Amplifier Card designed to maximize the valves performance.

They have a built-in manual relief valve that is factory set to the maximum value of the pressure control range.

Product Specification

Description Units
 Maximum Operating Pressure  5000 psi / 350 bar
 Maximum Flow Rate VER06SP  53 gpm / 200 l/min
 Maximum Flow Rate VER08SP  105 gpm / 400 l/min
 Maximum Flow Rate VER10SP  132 gpm / 500 l/min
 Mounting Surface VER06SP  R06 NFPA – ISO 6264-06
 Mounting Surface VER08SP  R08 NFPA – ISO 6264-08
 Mounting Surface VER10SP  R10 NFPA – ISO 6264-10
 Maximum Weight VER06SP  11 lbs / 5 kg
 Maximum Weight VER08SP  12.8 lbs / 5.8 kg
 Maximum Weight VER10SP  17.6 lbs / 8 kg
 Step Response with Q = 50 l/min 0 → 100 %  120 ms
 Step Response with Q = 50 l/min 100 → 0 %  90 ms
 Power Supply  12v DC / 24v DC
 Connection  DIN 43650 / DT04-2P
 Protection IEC 60529  IP65 / IP69K

Continental Hydraulics – VER-SP Proportional Pilot Operated Pressure Relief Valves – Data Sheet
