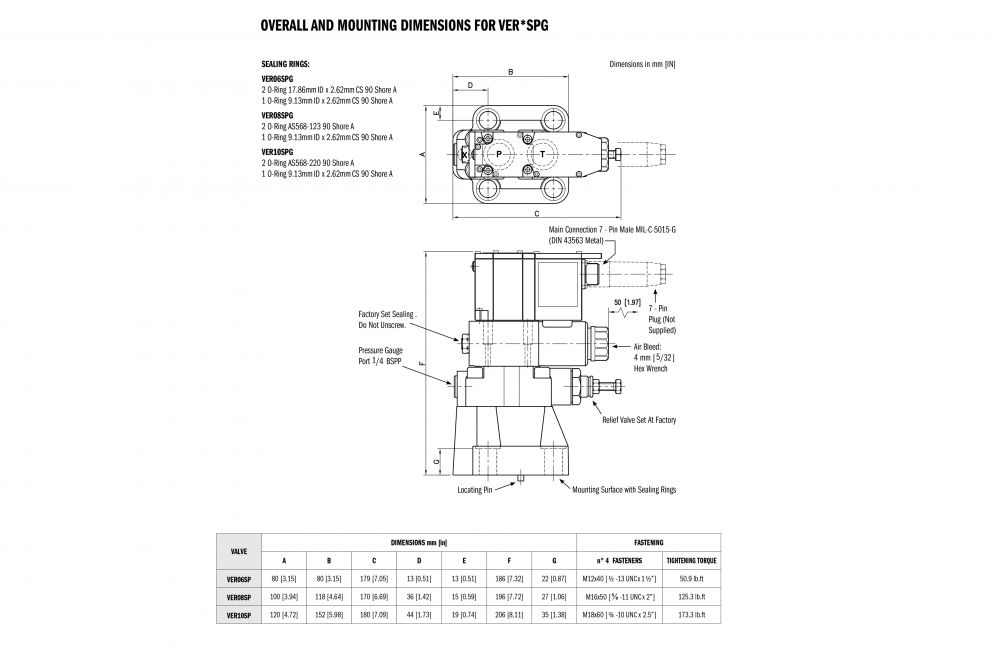

  • VERSPG Proportional Pressure Relief Valve Overall Dimensions

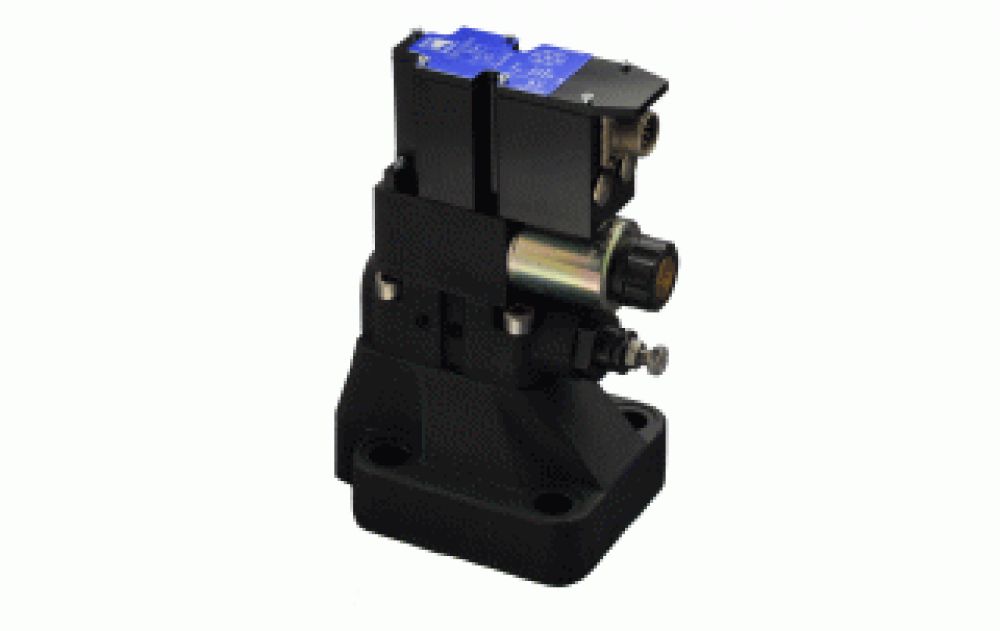

Continental Hydraulics – VER-SPG Proportional Pressure Relief Valves with on Board Electronics

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VER-SPG valves are Proportional pilot operated pressure relief valves with On-board Digital amplifier for proportional pressure control and are subplate mounted according to NFPA T3.5.1 R2-2002 and ISO 6264:1998 standards.

Available in four proportional pressure ranges up to 5000 psi and in three nominal sizes for flow rates up to 132 gpm.

These valves are used to provide remote and variable pressure control in a hydraulic circuit. The pressure setting is directly proportional to the command input into the On-board Amplifier. In the event of a power failure, the valve will return to low pressure.

They have a built-in manual relief valve that is factory set to the maximum value of the pressure control range.

Product Specification

Description Units
Maximum Operating Pressure 5000 psi / 350 bar
Maximum Flow Rate VER06SPG 53 gpm / 200 l/min
Maximum Flow Rate VER08SPG 105 gpm / 400 l/min
Maximum Flow Rate VER10SPG 132 gpm / 500 l/min
Mounting Surface VER06SPG R06 NFPA – ISO 6264 -06
Mounting Surface VER08SPG R06 NFPA – ISO 6264 -08
Mounting Surface VER10SPG R06 NFPA – ISO 6264 -10
Maximum Weight VER06SPG 12 lbs / 5.5 kg
Maximum Weight VER08SPG 14 lbs / 6.3 kg
Maximum Weight VER10SPG 18.7 lbs / 8.5 kg
Step Response @ 140 Bar 0 → 100 % 50 ms
Step Response @ 140 Bar 100 → 0 % 30 ms
Step Response @ 210 Bar 0 → 100 % 70 ms
Step Response @ 210 Bar 100 → 0 % 40 ms
Power Supply 24v DC
Connection 7 pin DIN 43563 Metal
Protection IEC 60529 IP67

Continental Hydraulics – VER-SPG Proportional Pressure Relief Valves with on Board Electronics – Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Proportional Products

Pressure Relief
