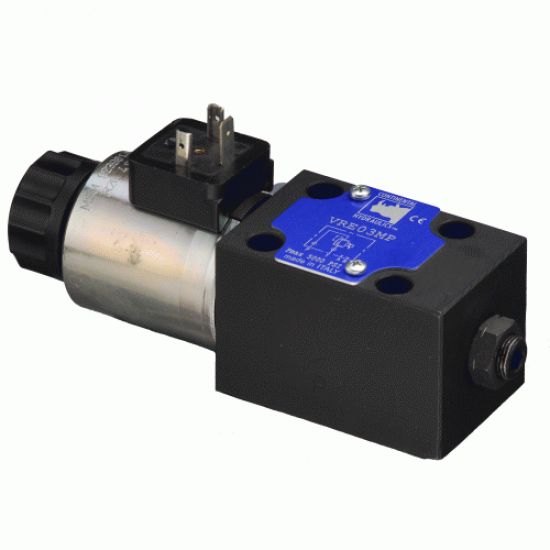

Continental Hydraulics – VER03M Proportional Pressure Relief Valves

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VER03M is a direct operated proportional relief valve, with mounting in compliance with NFPA/T3.5.1 R2-2002 and ISO 6264:1998 standards.

The VER03M valves are designed to modulate pressure in a hydraulic circuit directly proportional to the input current to the valve.

The valve consists of a poppet, seat, spring and proportional solenoid. The spring and solenoid force acts on the poppet holding the valve closed. When system pressure exceeds the spring and solenoid forces, the valve begins to open and modulate P port pressure by discharging excess flow to tank. System pressure can be changed by changing the current to the solenoid.

There are four pressure ranges available: 70 bar, 140 bar, 210 bar and 350 bar with flow up to 1.32 gpm.

Any back pressure in T port is added to the controlled pressure in P port. The maximum recommended T port pressure is 30 psi while the valve is controlling pressure.

The valve can be driven by a variable current power supply or an external power amplifier card designed to maximize the valve’s performance.

Product Specification

Description Units
Maximum Operating Pressure P Port 5000 psi / 350 bar
Maximum Operating Pressure T Port 30 psi / 2 bar
Maximum Flow 30 psi / 2 bar
Rated Flow 30 psi / 2 bar
Pressure Stages VER03M-070 10 – 1000 psi / 0.7 – 70 bar
Pressure Stages VER03M-140 15 – 2000 psi / 1.1 – 140 bar
Pressure Stages VER03M-210 26 – 3000 psi / 1.8 – 210 bar
Pressure Stages VER03M-350 40 -5000 psi / 2.8 – 350 bar
Mounting Surface NFPA R03 (D03)
ISO 6254-03-04-*-97
Step Response @ 140 Bar 0 → 100% 80 ms
Step Response @ 140 Bar 100 → 0% 40 ms
Power Supply 12v DC or 24v DC
Connection DIN 43650 / DT04-2p
Protection IEC 60529 IP65 / Ip69K
Weight Single Solenoid 3.5 lbs / 1.6 kg

Continental Hydraulics – VER03M Proportional Pressure Relief Valves – Data Sheet
