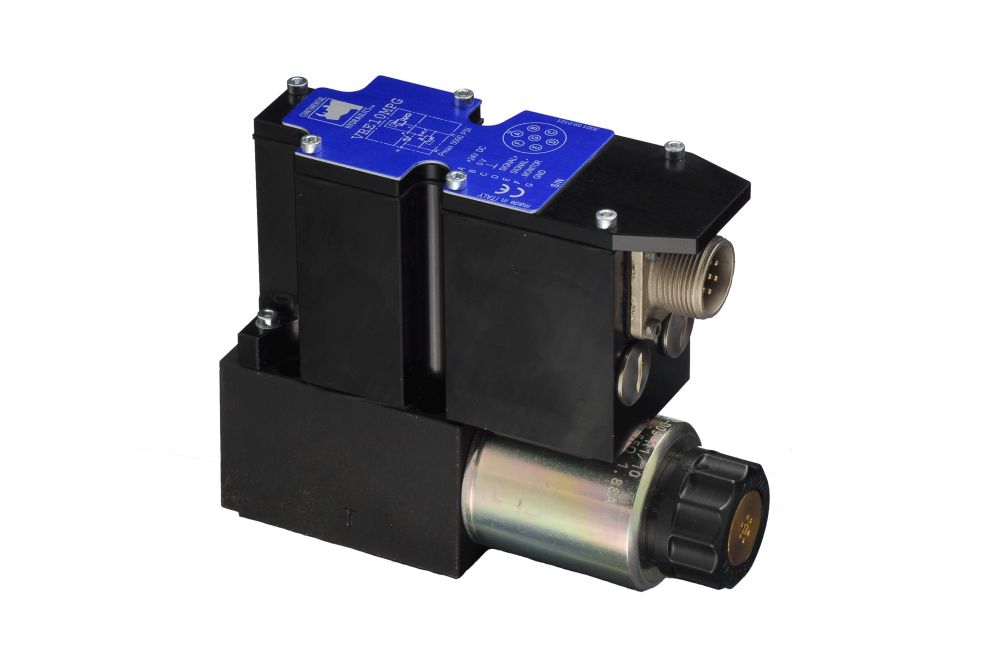

Continental Hydraulics – VER03MG Proportional Pressure Relief Valves with on Board Electronics

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VER03MG direct operated Proportional Relief Valve, with On-Board Digital Amplifier conforms to NFPA D03 / ISO 6264 standards.

VER03MG valves are designed to control maximum pressure in low flow systems or as the proportional pressure pilot valve of larger two-stage pressure control valves.

Output pressure is controlled proportional to the input command reference signal supplied to the On-Board Digital Amplifier.

Four pressure ranges are available to help match your requirements.

The On-Board microprocessor controls all the valve functions and is preset to optimal valve performance. In field adjustments can be performed, via software, to customize the parameters based on your application needs.

Product Specification

Description Units
Maximum Operating Pressure P Port 5000 psi / 350 bar
Maximum Operating Pressure T Port  30 psi / 2 bar
Maximum Flow  1.32 gpm / 5 l/min
Rated Flow  0.26 gpm / 1 l/min
Pressure Stages VER03MG-070  10-1000 psi / 0.7 – 70 bar
Pressure Stages VER03MG-140  16 – 2000 psi / 1.1 – 140 bar
Pressure Stages VER03MG-210  26 – 3000 psi / 1.8 – 210 bar
Pressure Stages VER03MG-350  40 – 5000 psi / 2.8 – 350 bar

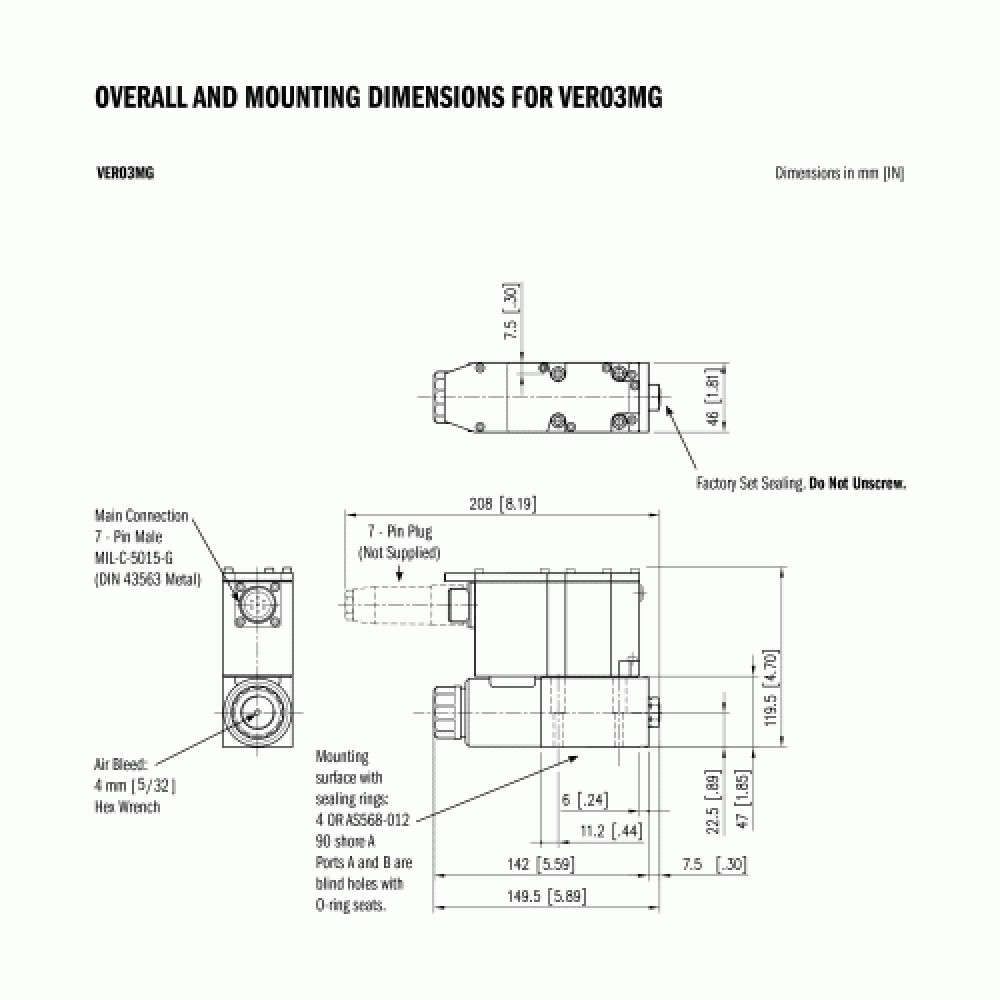

Mounting Surface  NFPA R03 (D03)
ISO 6264-03-04-*-97
Step Response 0 → 100% @ 140 bar  50 ms
Step Response 100 → 0% @ 140 bar  30 ms
Step Response 0 → 100% @ 210 bar  70 ms
Step Response 100 → 0% @ 210 bar  40 ms
Power Supply  24v DC
Connection  7 Pin DIN 43563 Metal
Protection IEC 60529  IP67
Weight Single Solenoid  4.4 lbs / 2 kg

Continental Hydraulics – VER03MG Proportional Pressure Relief Valves with on Board Electronics – Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Proportional Products
