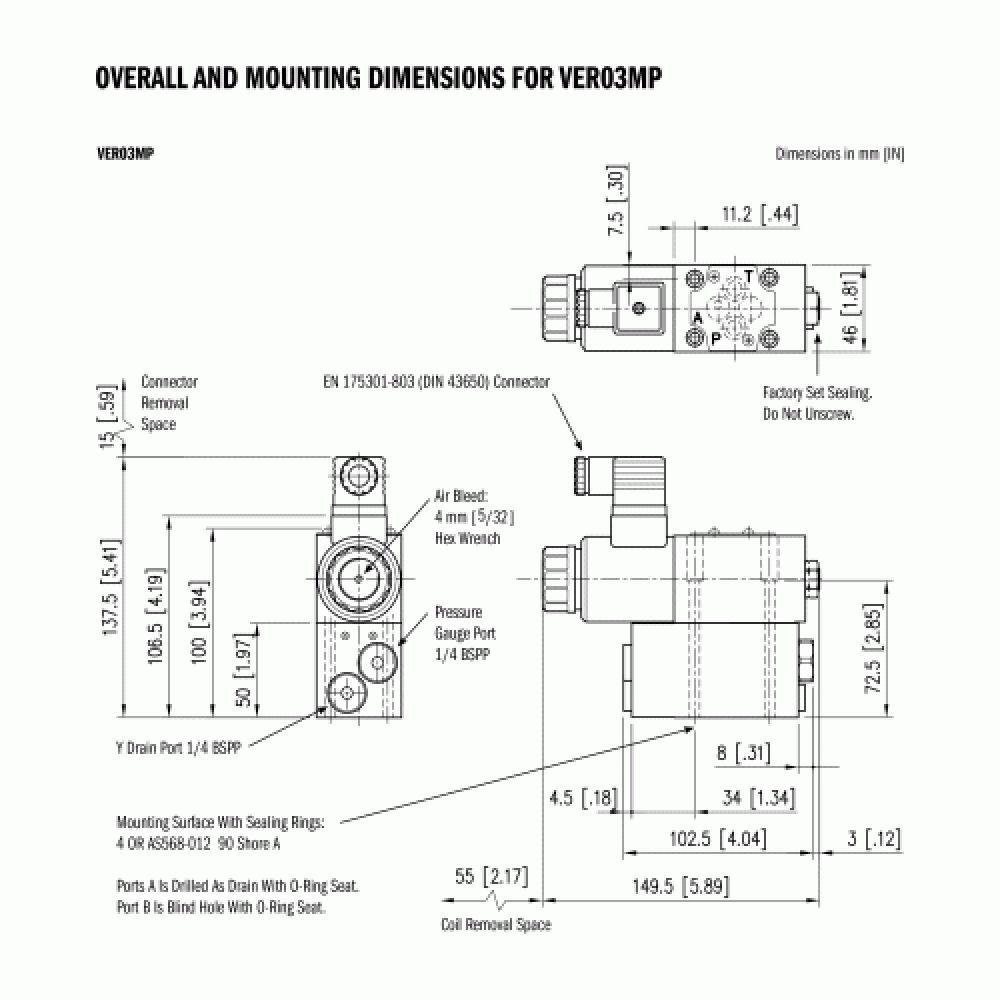

  • VER03MP Proportional Pressure Relief Valve Overall Dimensions

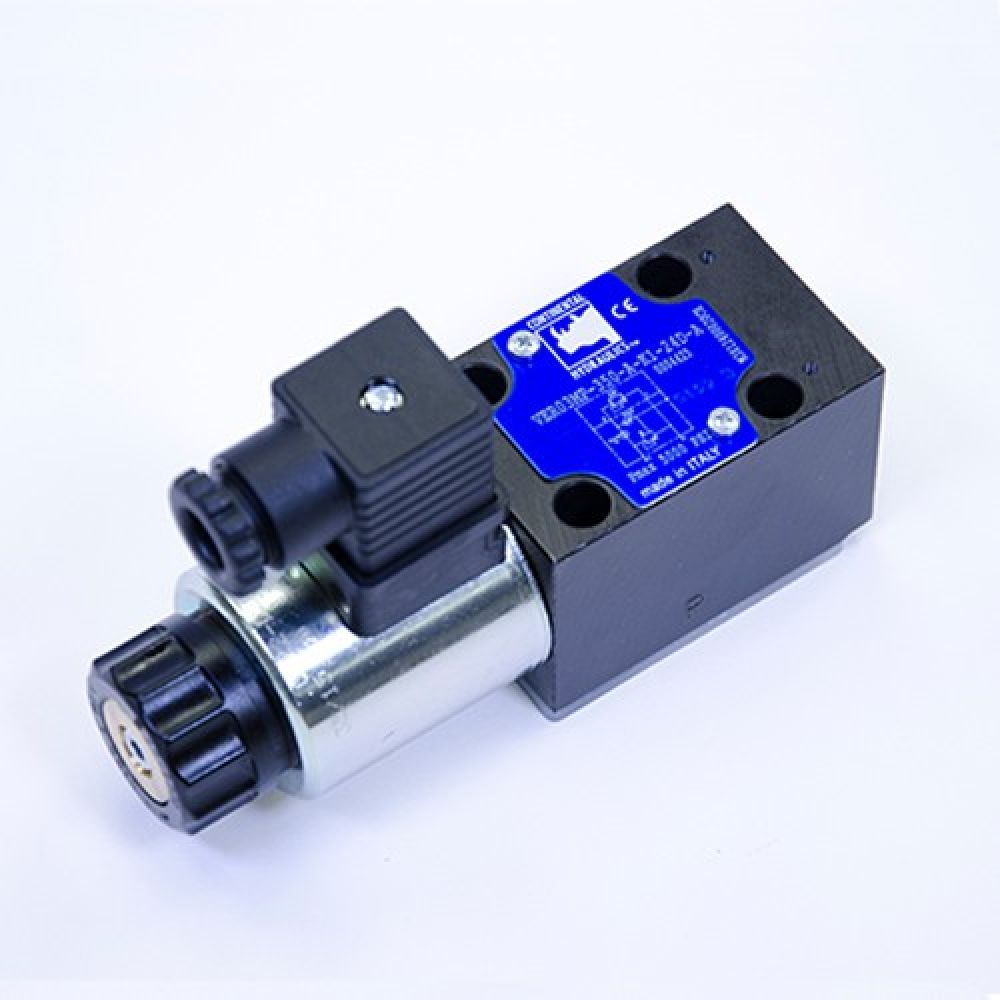

Continental Hydraulics – VER03MP Proportional Pressure Relief Valves Pilot Operated

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VER03MP pilot operated proportional relief valves conform to NFPA R03/D03 and ISO 6264:1998 mounting standards.

The VER03MP valves are designed to modulate pressure in a hydraulic circuit directly proportional to the input current to the valve. The valve consists of a proportional pilot relief stage and a main relief stage. The main stage has a spool which is held closed by a spring. System pressure acts on the opposite end of the spool opposing the spring force. When system pressure exceeds the spring force, the valve begins to open. The spring preload sets the minimum controlled pressure. System pressure can be increased from minimum by increasing the pilot pressure which adds to the spring force. The spool will tend to close until the system pressure reaches its new setting.

There are four pressure ranges available: 70 bar, 140 bar, 210 bar and 350 bar with flow up to 13.2 gpm.

It is an internally piloted valve with three drain options – internal through T port, external through A port and external through Y port.

The valve can be driven by a variable current power supply or an external power amplifier card designed to maximize the valve’s performance.

Product Specification

Description Units
Maximum Operating Pressure P Port 5000 psi / 350 bar
Maximum Operating Pressure T Port 30 psi / 2 bar
Minimum Flow 0.5 gpm / 2 l/min
Maximum Flow 13.2 gpm / 50 l/min
Rated Flow 8 gpm / 30 l/min
Pressure Stages VER03P-070 100 – 1000 psi / 7 -70 bar
Pressure Stages VER03P-140 100 – 2000 psi / 7 – 140 bar
Pressure Stages VER03MG-210 116 – 3000 psi / 8 -210 bar
Pressure Stages VER03MG-350 145 – 5000 psi / 10 – 350 bar
Mounting Surface NFPA R03 (D03)
ISO 6264-03-04-*-97
Step Response 0 → 100% @ 140 bar 80 ms
Step Response 100 → 0% @ 140 bar 40 ms
Power Supply 12v DC / 24v DC
Connection DIN 43650 / DT04-2P
Protection IEC 60529 IP65 / IP69K
Weight Single Solenoid 7.3 lbs / 3.3 kg

Continental Hydraulics – VER03MP Proportional Pressure Relief Valves Pilot Operated – Data Sheet
