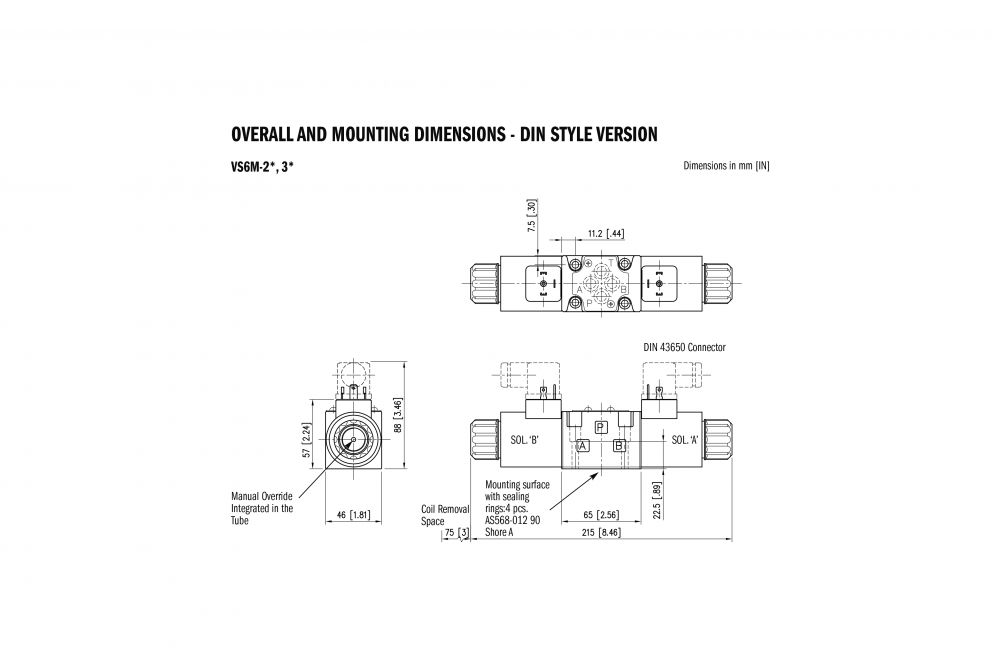

  • VS6M Solenoid Operated Directional Control Valve Overall Dimensions

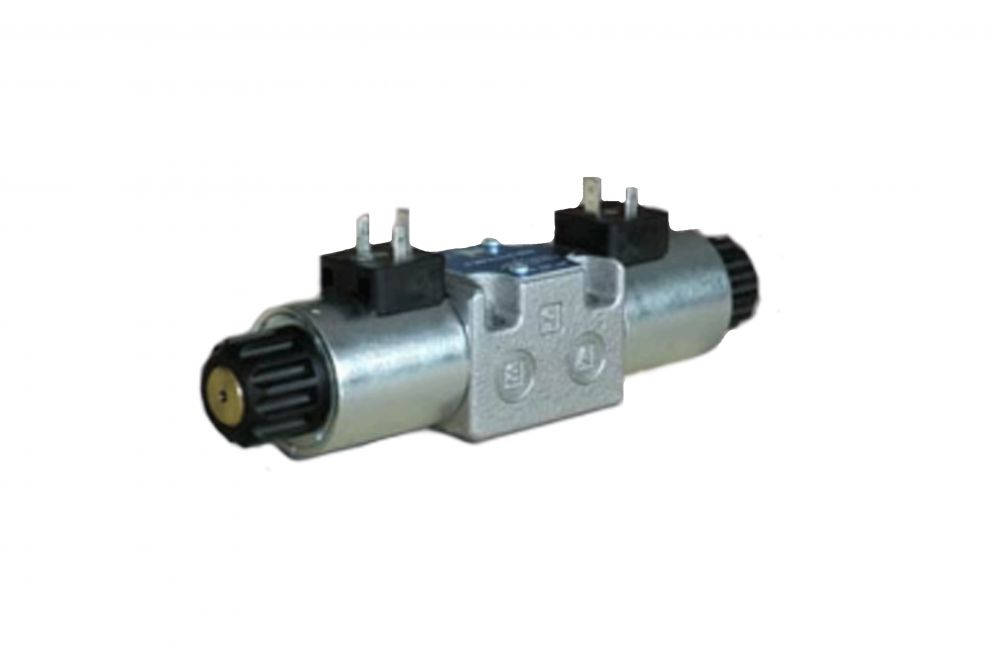

Continental Hydraulics – VS6M Solenoid Operated Directional Valve

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VS6M valves are supplied with a ZINC-NICKEL PLATING making them the perfect choice for mobile and environmental applications that require better protection.

Direct acting, subplate mounted directional control valve, with mounting surface according to NFPA D03 ISO 4401-03.

The valve body is made with high strength iron castings with internal passages designed to minimize pressure drop.

The valve can be supplied for valve functions requiring 2 positions or 3 positions, as well as 3 way or 4 way flow functions.

This valve is designed using DC voltage core tubes.

The DC core tubes will accept any one of the DIN 43650, AMP junior, DEUTSCH DT04-2P coil connections.

These valves are supplied with a zinc-nickel surface treatment suitable to ensure a salt spray resistance up to 600h (test operated according to UNI EN ISO 9227 standards and test evaluation operated according to UNI EN ISO 10289 standards).

Product Specification

Description Units
Maximum Operating Pressure P – A – B Ports 5000 psi / 350 bar
Maximum Operating Pressure T Port 3000 psi / 210 Bar
Flow Rate 20 gpm / 76l/min
Mounting Surface NFPA D03
ISO 4401-03-02-0-03
Single Solenoid Weight 3.3lbs / 1.5kg
Dual Solenoid Weight 4.4lbs / 2.0kg
Ambient Temperature Range -4 to 130 °F / -20 to +54 °C
Fluid Temperature Range -4 to +180 °F / -20 +82 °C
Fluid Viscosity Range 60 – 1900 SUS / 10 -400 cSt
Recommended Fluid Viscosity 120 SUS / 25cSt
Fluid Contamination ISO 4406:1999 Class 20/18/15

Continental Hydraulics – VS6M Solenoid Operated Directional Valve Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Directional Control Valves

Direct Solenoid Operated
