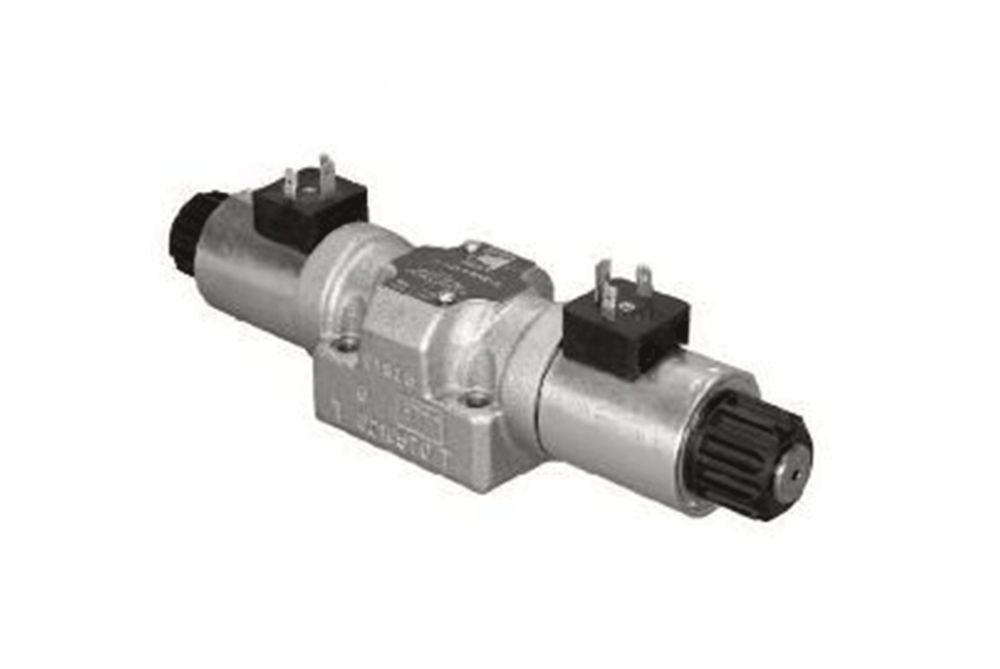

Continental Hydraulics VSNG10 – Solenoid Operated Directional Control Valve

~ scroll down to find the part you need ~
Continental Hydraulics are at the forefront of engineering hydraulic solutions for over 50 years-a testament to a long-standing reputation built upon your challenges and opportunities. A worldwide leader- a one-stop-shop for valves, pumps, power units and proportional products-all assembled in the USA.

The Continental Hydraulics VSNG10 valves are supplied with a ZINC-NICKEL PLATING making them the perfect choice for mobile and environmental applications that require better protection.

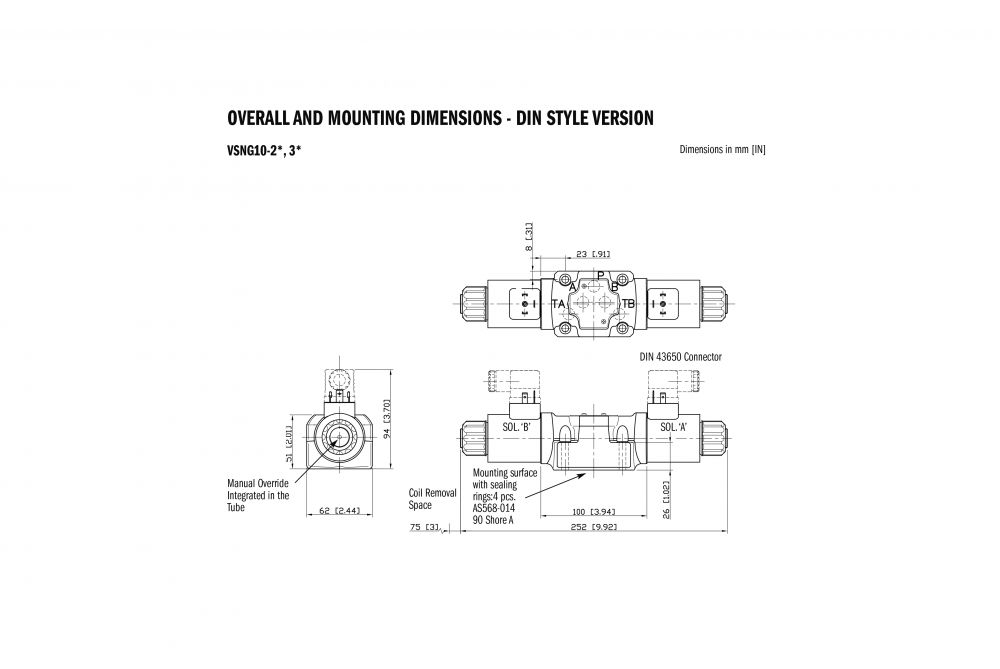

Direct acting, sub-plate mounted directional control valve, with mounting surface according to the NFPA D05 ISO 4401-05. The body of the valve is made with high strength cast iron with internal passages designed to minimize pressure drop.



The valve can be supplied for valve functions requiring 2 positions or 3 positions, as well as 3 way or 4 way flow functions.

DIN 43650, AMP junior, DEUTSCH DT04-2P coil connections are available.

Salt spray resistance up to 600h (test according to UNI EN ISO 9227 and UNI EN ISO 10289 tests and standards)

Product Specification

Description Units
Maximum Operating Pressure P – A – B Ports 4600 psi / 320 bar
Maximum Operating Pressure T Port 3000 psi / 210 Bar
Flow Rate 33 gpm / 125 l/min
Mounting Surface NFPA D03
ISO 4401-05-04-0-05
Single Solenoid Weight 5.3 lbs / 2.4 kg
Dual Solenoid Weight 6.6 lbs / 3 kg
Ambient Temperature Range -4 to 130 °F / -20 to +54 °C
Fluid Temperature Range -4 to +180 °F / -20 +82 °C
Fluid Viscosity Range 60 – 1900 SUS / 10 -400 cSt
Recommended Fluid Viscosity 120 SUS / 25cSt
Fluid Contamination ISO 4406:1999 Class 20/18/15

Continental Hydraulics – VSNG10 Solenoid Operated Directional Control Valve Data Sheet

Additional Information

Manufacturer

Continental Hydraulics

Directional Control Valves

Direct Solenoid Operated
