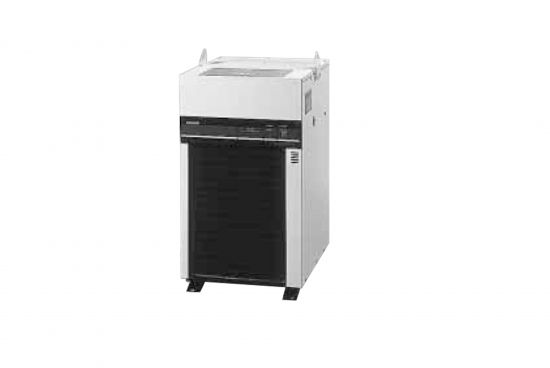

Daikin AKS**5 – Oil Cooling Unit

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

Wide range of applied temperature (No.1 among Industries)

The Daikin AKS – Oil Cooler unit can be used in wide range of applied temperature such as 5~45°C for room temperature and 5~50°C for oil temperature.
Coping with intensive temperature conditions under winter and summer, it exhibits steady cooling capacity.

Multiple function’s microcomputer is mounted

Multiple function’s microcomputer pursuing easy use is mounted.

  •  One touch choice is possible for oil temperature control method (room temperature tuning type, fixed temperature type)
  •  LED displays abnormal situations of individual nine kinds or seven levels of inlet oil temperatures.
  • Turnover switch enables the operation switch to do fool-safe operated and to prevent ceased
    operation.
Slim and compactness

Realized the slim and compactness design matching to the main machine, and it makes it possible to
save space.

To put importa
nce on the characteristics of installation and maintenance

Front suction and upper exhausting system keep superiority for installation and maintenance works.

Enriched self & safety functions

Eleven protection devices give you freedom from cares. (*Note: Refer to the specification table below for AKS303AK.)

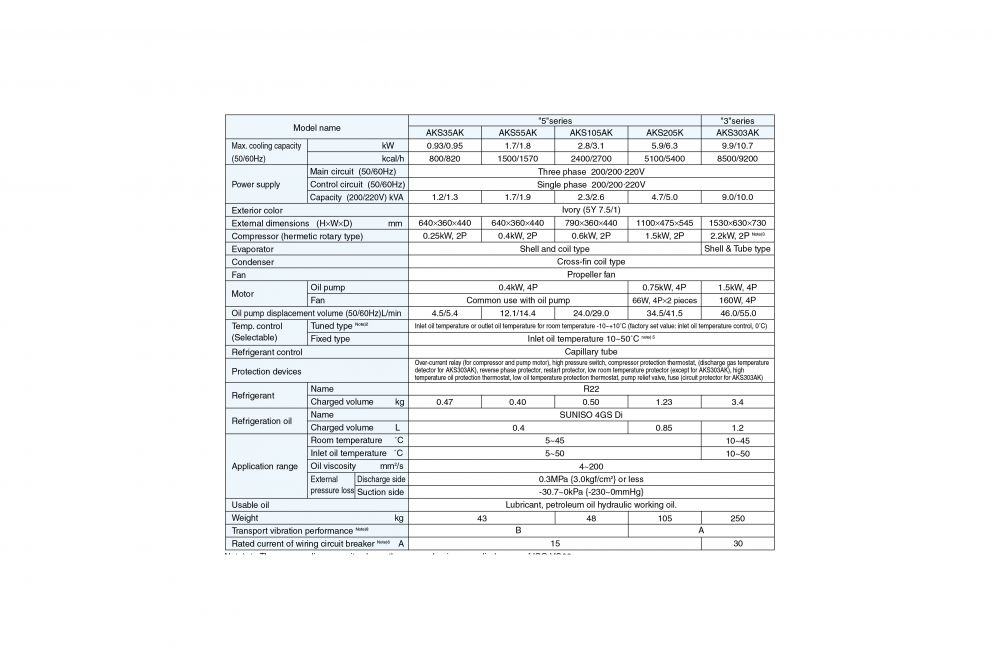

Product Specification

Description AKS35AK AKS55AK AKS105AK AKS205K
Maximum Cooling Capacity 0.93 / 0.95 kW 1.7 / 1.8 kW 2.8 / 3.1 kW 5.9 / 6.3 kW
Power Supply Main Circuit (50/60 Hz) Three Phase
200/200 – 220V
Three Phase
200/200 – 220V
Three Phase
200/200 – 220V
Three Phase
200/200 – 220V
Power Supply Control Circuit (50/60Hz) Single Phase
200/200 – 220V
Single Phase
200/200 – 220V
Single Phase
200/200 – 220V
Single Phase
200/200 – 220V
Power Supply Capacity (200/220V) 1.2 / 1.3 kVA 1.7 / 1.9 kVA 2.3 / 2.6 kVA 4.7 / 5.03 kVA
Oil Pump Displacement Volume (50/60Hz) 4.5 / 5.4 L/min 12.1 / 14.4 L/min 24.0 / 29.0 L/min 34.5 / 41.5 L/min
Compressor (hermetic rotary type) 0.25 kW, 2P 0.4 kW, 2P 0.6 kW, 2P 1.5 kW, 2P
Evaporator Shell and Coil Type Shell and Coil Type Shell and Coil Type Shell and Coil Type
Condenser Cross-fin coil type Cross-fin coil type Cross-fin coil type Cross-fin coil type
Fan Propeller fan Propeller fan Propeller fan Propeller fan
Room Temperature Application Range 5 – 45 °C 5 – 45 °C 5 – 45 °C 5 – 45 °C
Tank Oil Temperature Application Range 5 – 50 °C 5 – 50 °C 5 – 50 °C 5 – 50 °C
Oil Viscosity 4 – 200 mm²/s 4 – 200 mm²/s 4 – 200 mm²/s 4 – 200 mm²/s
External Dimensions (H x W x D) 640 x 360 x 440 mm 640 x 360 x 440 mm 790 x 360 x 440 mm 1100 x 475 x 545 mm
Weight 43 kg 43 kg 48 kg 105 kg

Daikin – AKS- Oil Cooler – Datasheet

Additional Information

Oil Cooler

Refrigeration Cooler

Manufacturer

Daikin
