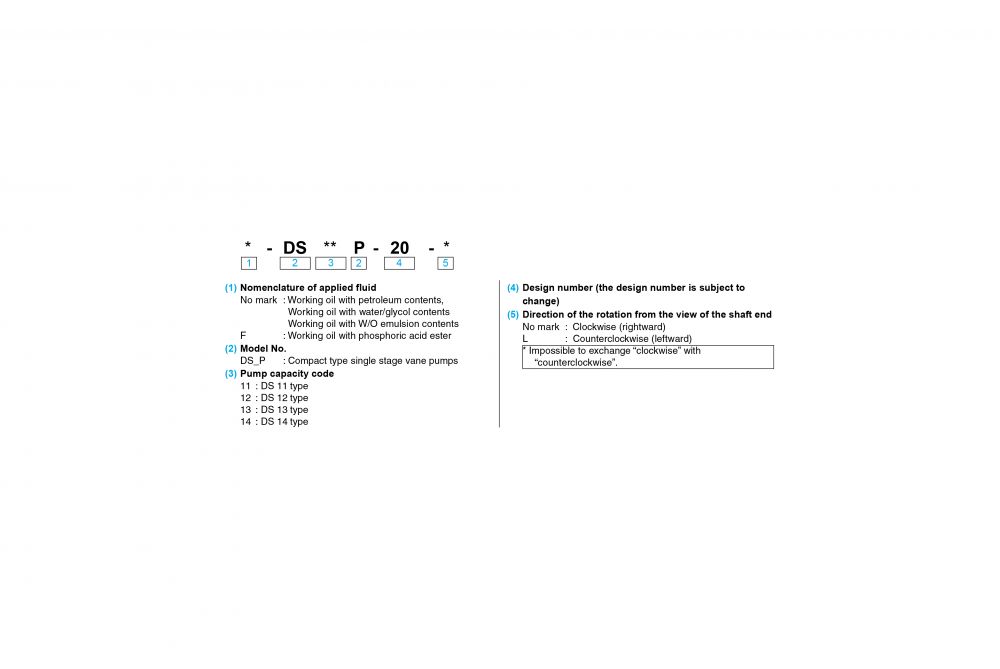

  • Daikin DS - Compact Type Single Stage Vane Pump Ordering Information

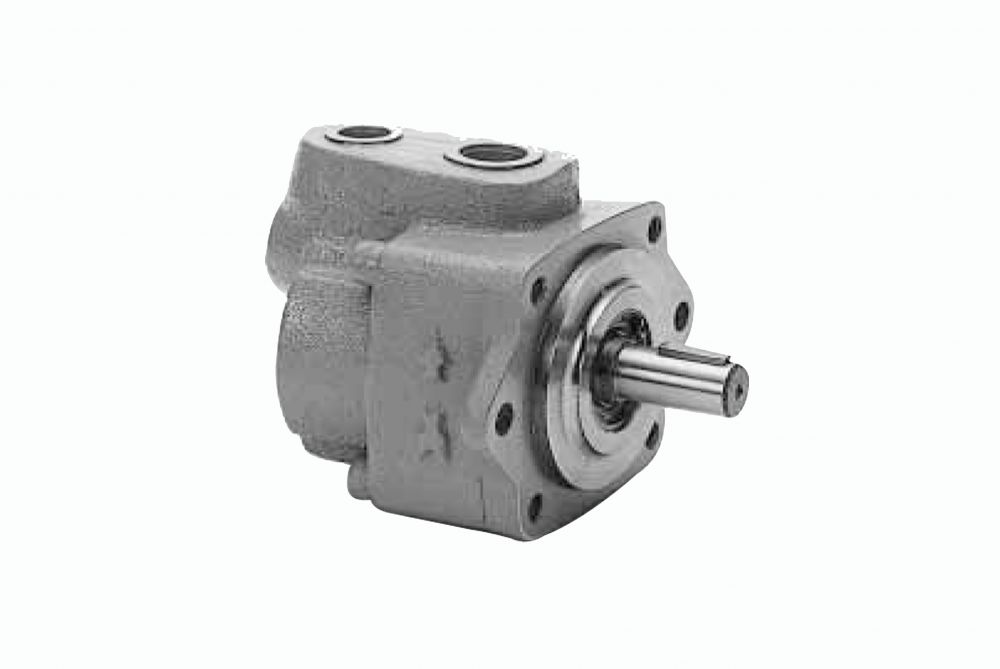

Daikin DS – Compact Type Single Stage Vane Pump

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

  • Low noise

    Since the size of the suction port is wide enough, small resistance through suction port enables to realize low noise.
  • High efficiency

    The side clearance is always kept constant by the cushion plate system. Accordingly, the pump can maintain stable and high efficiency without seizure and abrasion.
  • Low pulsation

    Since the cam ring can minimize the displacement variation, the operation sound is quiet and the pulsation is small, resulting in gaining the stable performance.

Product Specification

Displacment

Model Code 0.4 MPa
{4 kgf/cm²}
3 MPa
{30 kgf/cm²}
5 MPa
{50 kgf/cm²}
7 MPa
{70 kgf/cm²}
 DS 11P 5.0 L/min 4.5 L/min 4.1 L/min 3.9 L/min
 DS 12P 7.7 L/min 7.2 L/min 6.7 L/min 6.5 L/min
 DS 13P 12.6 L/min 11.8 L/min 11.5 L/min 11.0 L/min
 DS 14P 22.1 L/min 21.2 L/min 20.5 L/min 20.0 L/min



Shaft Power Input

Model Code 0.4 MPa
{4 kgf/cm²}
1 MPa
{10 kgf/cm²}
3 MPa
{30 kgf/cm²}
5 MPa
{50 kgf/cm²}
7 MPa
{70 kgf/cm²}
 DS 11P 0.15 kw 0.28 kw 0.55 kw 0.82 kw 1.1 kw
 DS 12P 0.20 kw 0.40 kw 0.75 kw 1.12 kw 1.5 kw
 DS 13P 0.25 kw 0.50 kw 1.05 kw 1.55 kw 2.1 kw
 DS 14P 0.35 kw 0.77 kw 1.65 kw 2.50 kw 3.4 kw

Daikin – DS – Compact Type Single Stage Vane Pump – Datasheet

Additional Information

Manufacturer

Daikin

Hydraulic Pump Units

Vane Pump
