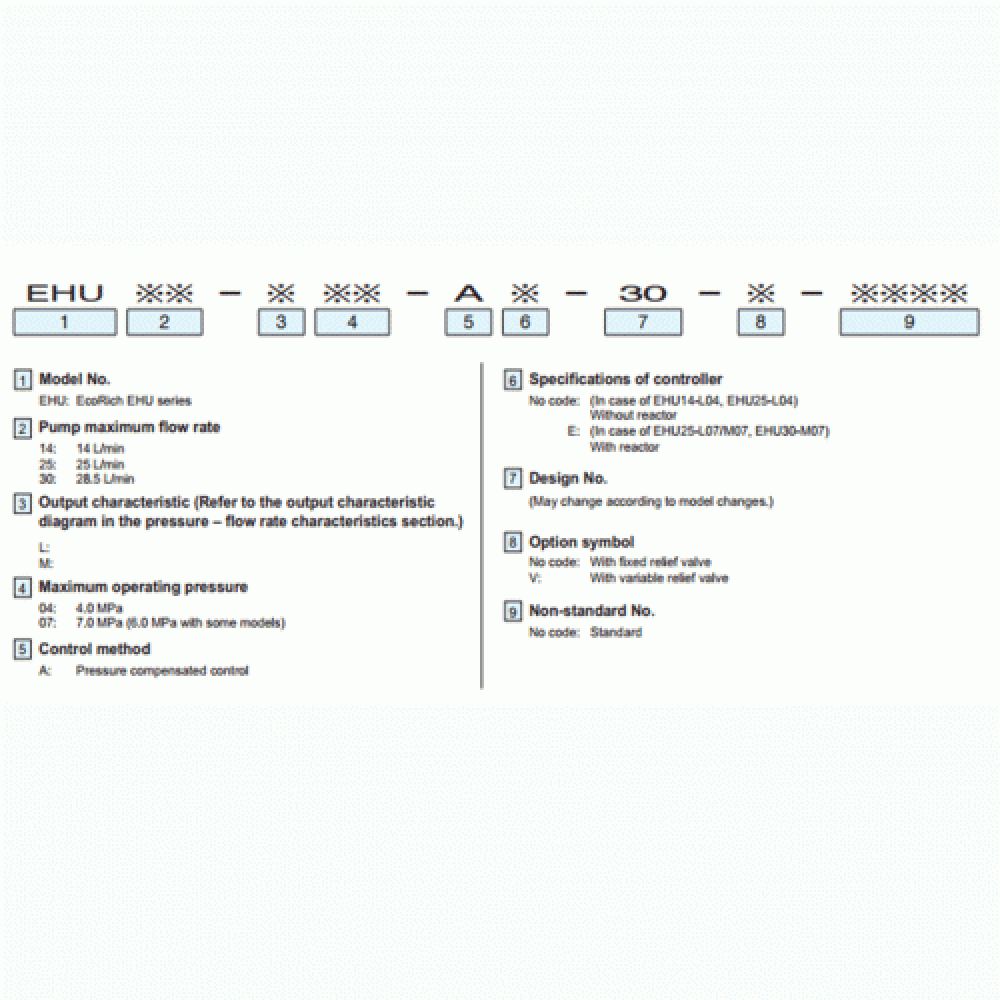

  • Daikin EcoRich - Hydraulic Unit Ordering Information

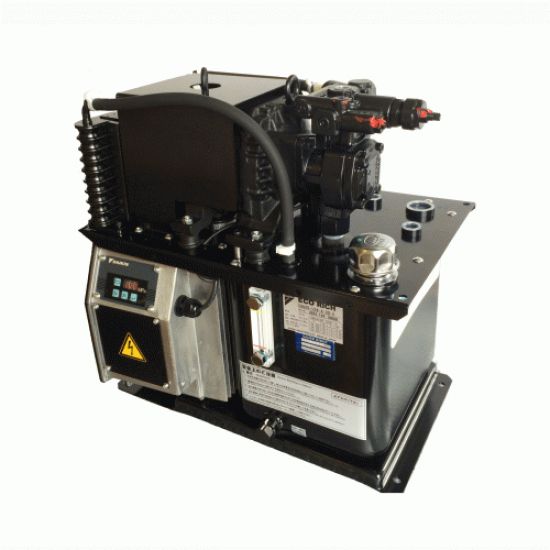

Daikin EHU25-L07-A-30-008A – Power Pack

Daikin’s lightweight design incorporates energy saving motor technology to significantly reduce energy consumption. High performance components deliver strong flow and pressure carefully packaged in a compact design.

IMPORTANT UPDATE: The 30 series shown on this page will no longer be manufactured from September 2017, the 40 series is the direct replacement  – Contact us to confirm the correct part number to replace your old 30 series unit.

The Daikin EHU series power pack units are used extensively in many machine tool centers from the following manufacturers: Doosan, Makino, Citizen, Hyundai, Mazak and Traub Index. The following special versions are also available directly from Zeus Hydratech Ltd.

OEM Specials:

  • EHU30-M07-AE-30-V-169A
  • EHU30-M07-AE-30-V-088
  • EHU30-M07-AE-30-V-024
  • EHU25-M07-AE-30-V344
  • EHU25-M07-AE-30-V-300
  • EHU25-M07-AE-30-V-118
  • EHU25-L07-A-30-008A
  • EHU25-L04-A-30-127E
  • EHU25-L04-A-30-127D
  • EHU25-L04-A-30-127C
  • EHU25-L04-A-30-032
  • EHU25-L04-A-30-019D



*All standard Part Numbers and specifications listed below*

Product Features

Model Code Motor Capacity
(Equivalent)
Tank Capacity Maximum
Operating Pressure
Maximum
Flow Rate
Weight
EHU14-L04 0.75 kw 10 L 4.0 MPa 14.0 L/min 43 kg
EHU25-L04 1.5 kw 10 L 4.0 MPa 25.0 L/min 43 kg
EHU25-M07 2.2 kw 10 L 7.0 MPa 25.0 L/min 45 kg
EHU25-M07 2.8 kw 10 L 7.0 MPa 25.0 L/min 46 kg
EHU30-M07 2.8 kw 10 L 6.0 MPa 28.5 L/min 46 kg

Daikin – EHU Instruction Manual

Daikin – EHU Exploded Diagram

Daikin – EHU – Hydraulic Unit – Datasheet

Daikin – EHU – Hydraulic Unit – Product Literature

Additional Information

Manufacturer

Daikin
