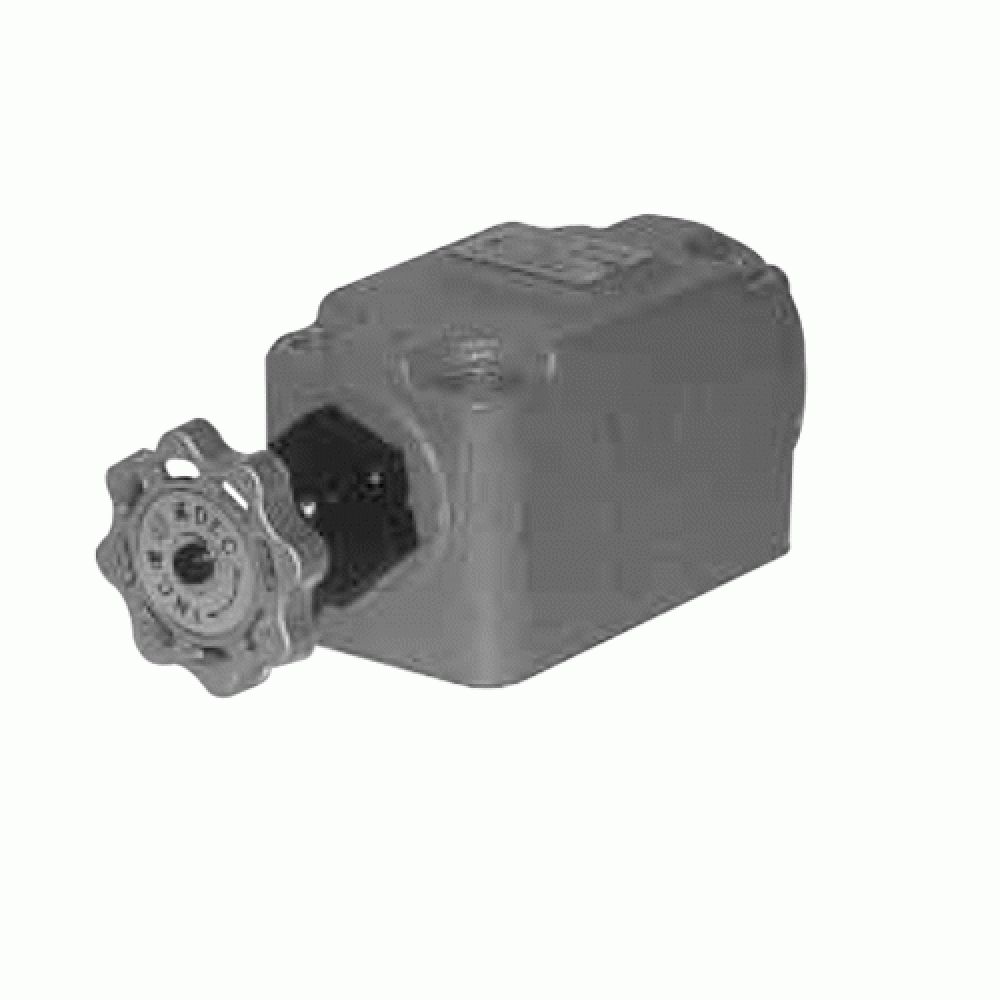

Daikin HDFT G03, T03, G06, T06, F06 – Throttle Valve with Check

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Daikin HDFT Throttle Valve is a structure with good balance of pressure makes it possible to operate a handle easily.

Compact design enables to reduce a installation space.

Easy adjusting of small amount flow rate.

Product Specification

Description HDFT (C)-G03 HDFT (C)-T03 HDFT (C)-G06 HDFT (C)-T06 HDFT (C)-F06
 Nominal Diameter 3/8 3/8 3/4 3/4 3/4
 Max Operating Pressure  21 MPa {210 kgf/cm²}  21 MPa {210 kgf/cm²}  21 MPa {210 kgf/cm²}  21 MPa {210 kgf/cm²}  21 MPa {210 kgf/cm²}
 Max Flow Rate 30 L/min 30 L/min 75 L/min 75 L/min 75 L/min
 Check Valve Cracking Pressure 0.2 MPa {2 kfg/cm²} 0.2 MPa {2 kfg/cm²} 0.2 MPa {2 kfg/cm²} 0.2 MPa {2 kfg/cm²} 0.2 MPa {2 kfg/cm²}
 Weight 2.7 Kg 1.5 Kg 4.2 Kg 3.6 Kg 9.5 Kg

Daikin – HDFT – Throttle Valve with Check – Datasheet

Additional Information

Manufacturer

Daikin

Modular Stack Valves

Check Valves, Throttle Flow Valves
