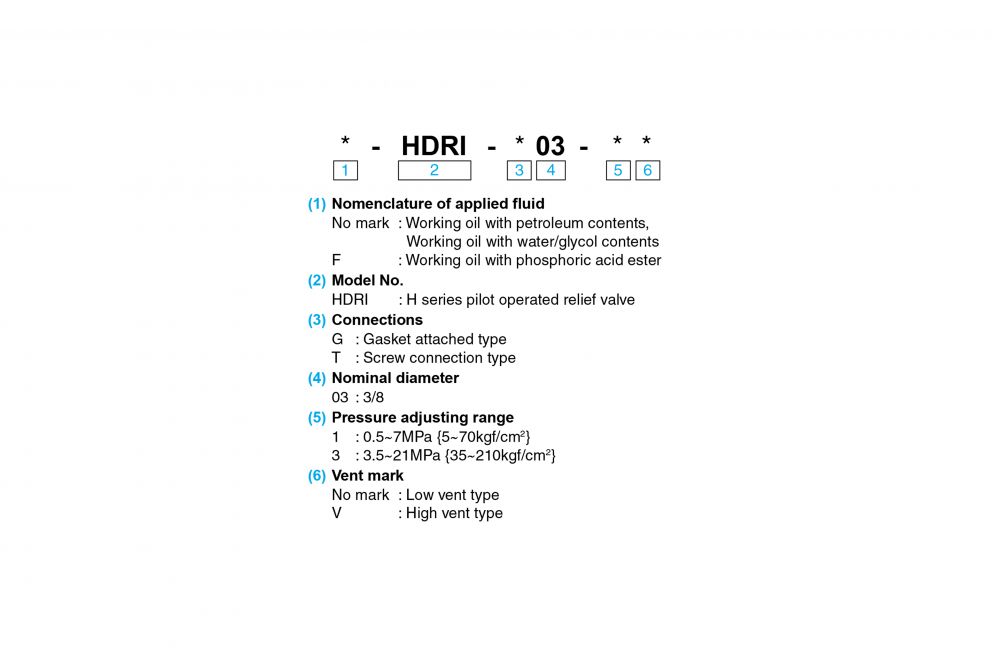

  • Daikin HDRI - Pilot Operated Relief Valve Ordering Information

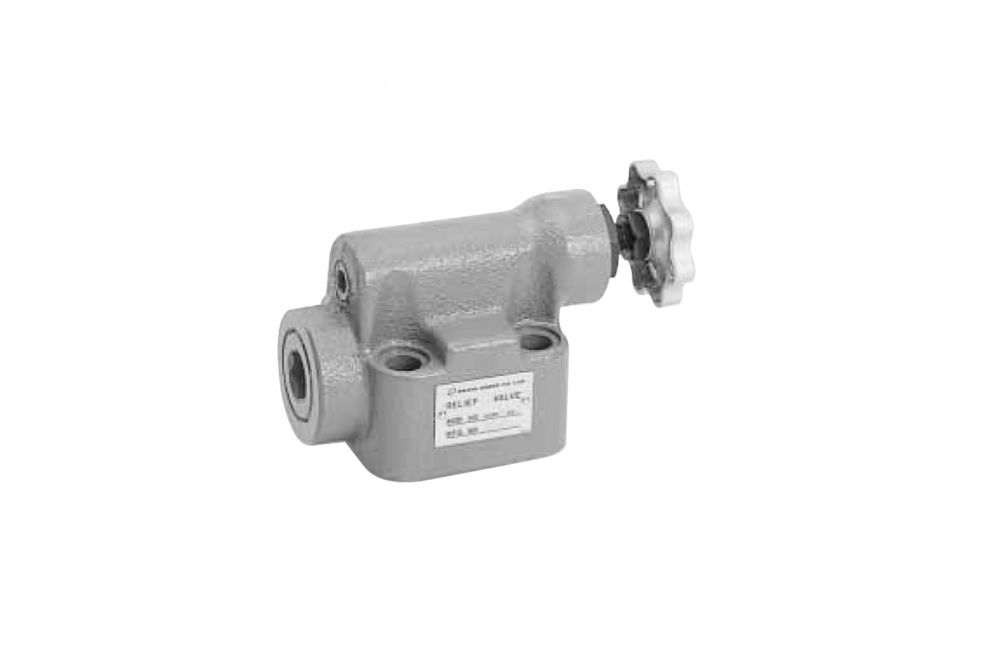

Daikin HDRI – Pilot Operated Relief Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Daikin HDRI – Pilot Operated Relief Valve broad flow rate range enables the steady pressure control and this valve actuates as a safety valve.

If a remote control relief valve is connected to a vent port, the main circuit pressure can be controlled by a remote controller.

This valve will have a function of an unloading valve, if a vent port is used.

Option for high vent type is available.

Product Features

Description HDRI-G03-1 HDRI-G03-3 HDRI-T03-1 HDRI-T03-3
Nom Diameter 3/8 3/8 3/4 3/4
Pressure Adjusting Range 0.5 ~ 7 MPa (5 ~ 70 kgf/cm²) 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²) 0.5 ~ 7 MPa (5 ~ 70 kgf/cm²) 3.5 ~ 21 MPa (35 ~ 210 kgf/cm²)
Max Flow Rate 30 L/min 30 L/min 30 L/min 30 L/min
Weight 3.5 kg 3.5 kg 2.9 kg 2.9 kg

Daikin – HDRI – Pilot Operated Relief Valve – Datasheet

Additional Information

Manufacturer

Daikin

Pressure Relief Valves

Pressure Relief Valves
