Daikin HPF – Prefil Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

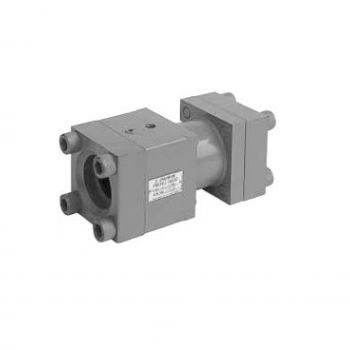

The Daikin HPF Prefil valve is used as a suction/exhaust valve between an oil hydraulic cylinder and a tank. In a quick forward stroke of a large press machine, this valve sucks oil from a tank to an oil hydraulic cylinder, in an pressurization process, it obstructs a reverse flow from a hydraulic cylinder to a tank , and in a return process, exhausting oil from a hydraulic cylinder to a tank.

Product Specification

Description HDIN-T03-** HDIN-T06-** HDIN-F06-** HDIN-F06-**
 Nominal Diameter 2 3 4
 Max Operating Pressure CL Side 25 MPa {250 kgf/cm²} 25 MPa {250 kgf/cm²} 25 MPa {250 kgf/cm²} 25 MPa {250 kgf/cm²}
 Max Operating Pressure R Side 2 MPa {20 kgf/cm²} 2 MPa {20 kgf/cm²} 2 MPa {20 kgf/cm²} 2 MPa {20 kgf/cm²}
 Max Operating Pressure Pilot Pressure 25 MPa {250 kgf/cm²} 25 MPa {250 kgf/cm²} 25 MPa {250 kgf/cm²} 25 MPa {250 kgf/cm²}
 Max Flow Rate R → CL 160 L/min 320 L/min 500 L/min 900 L/min
 Max Flow Rate CL → R 320 L/min 640 L/min 1000 L/min 1800 L/min
 Area ratio Seat: Pilot Position 1.66:1 2.37:1 2.93:1 3.05:1
 Weight 6.1 Kg 12 Kg 15.5 Kg 18.9 Kg

HPF – Prefil Valve – Datasheet

Additional Information

Modular Stack Valves

Prefil Valve

Manufacturer

Daikin
