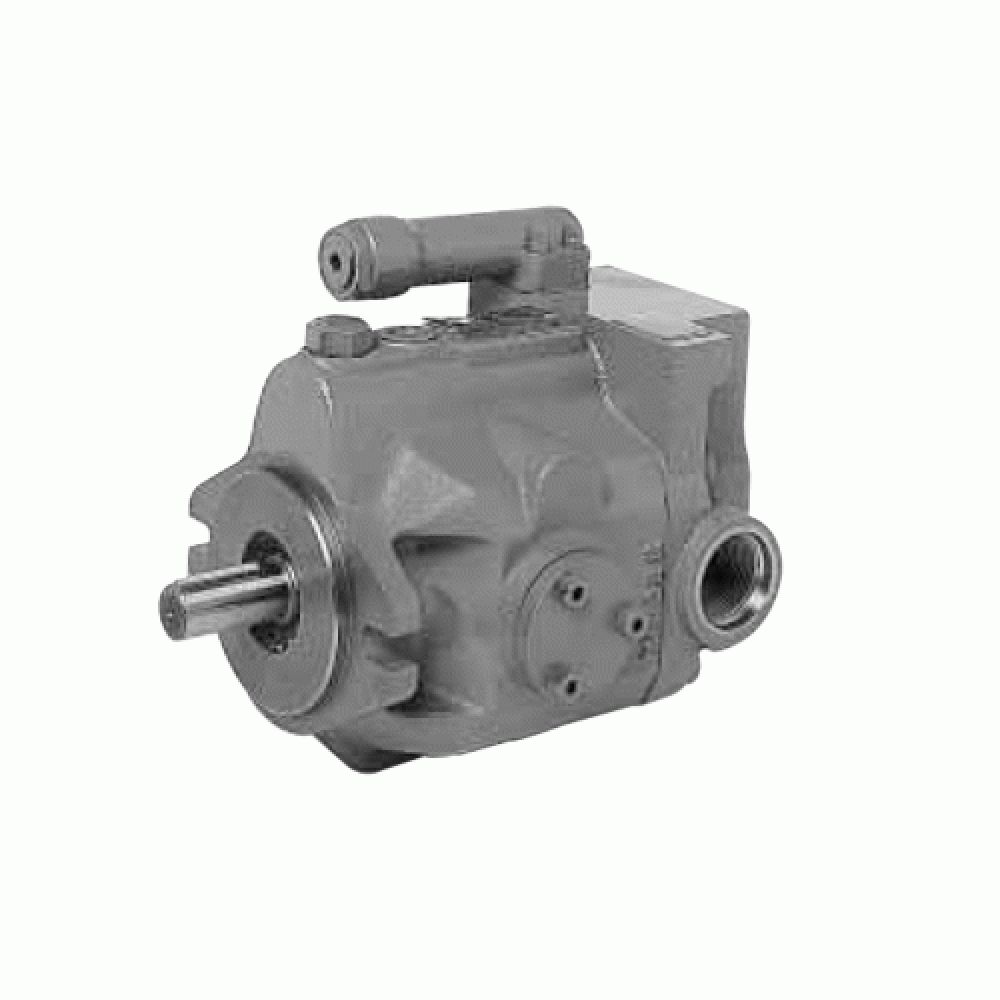

Daikin J-V38 – J-V70 Series – Piston Pump

~ scroll down to find the part you need ~

Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

Low noise

Low noise operation in overall pressure area on each series.
High efficiency

Oil temperature rise can be reduced due to the less power-loss. Making it possible to reduce tank size.
High reliability

High response, stability, and long life make it possible to increase the reliability of the main machine

Product Features



Description J-V38 J-V50 J-V70
 Theoretical Discharge 37.7 cm³/rev 51.6 cm³/rev 69.8 cm³/rev
 Maximum Operating Pressure 25 MPa {250 kgf/cm²} 21 MPa {210 kgf/cm²} 21 MPa {210 kgf/cm²}
 Permissible Rotational Speed 500 to 1800 min 500 to 1800 min 500 to 1800 min
Discharge Rate Adjustment Range 1800 min (Axial Port) 34 to 68 L/min 0 to 93 L/min 13 to 126 L/min
Discharge Rate Adjustment Range 1800 min (Side Port) 36.5 to 68 L/min 0 to 93 L/min 13 to 126 L/min
Weight (Axial Port) 24.4 kg
Weight (Side Port) 26 kg 50 kg 55 kg

Daikin V Series – Piston Pump – Datasheet

Daikin J-V Series – Piston Pump – Datasheet

Daikin J-V & V Series – Design Differences
