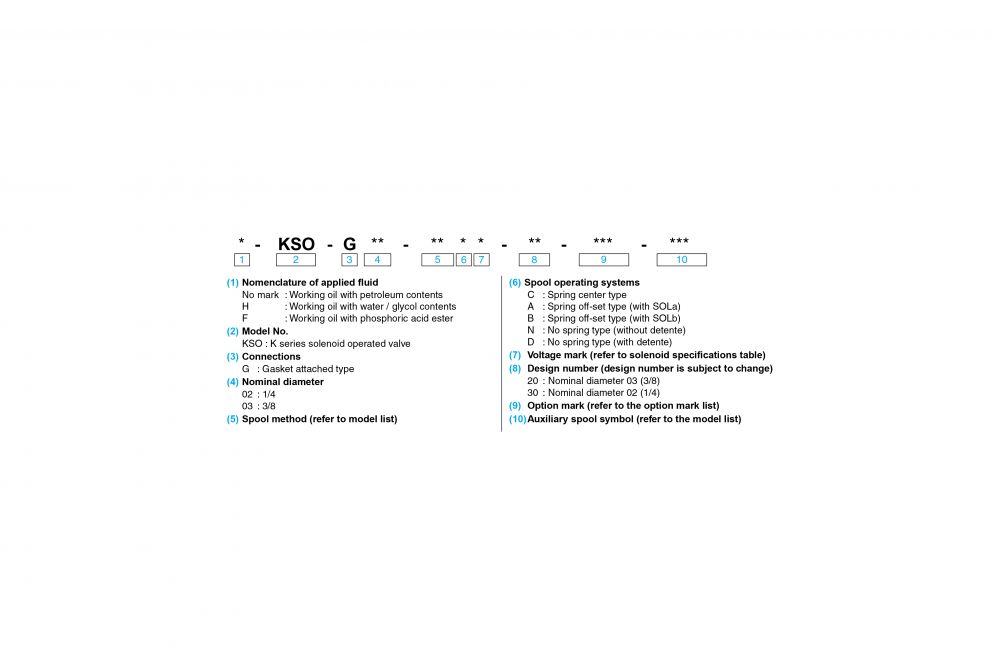

  • Daikin KSO - Solenoid Operated Valve Ordering Information

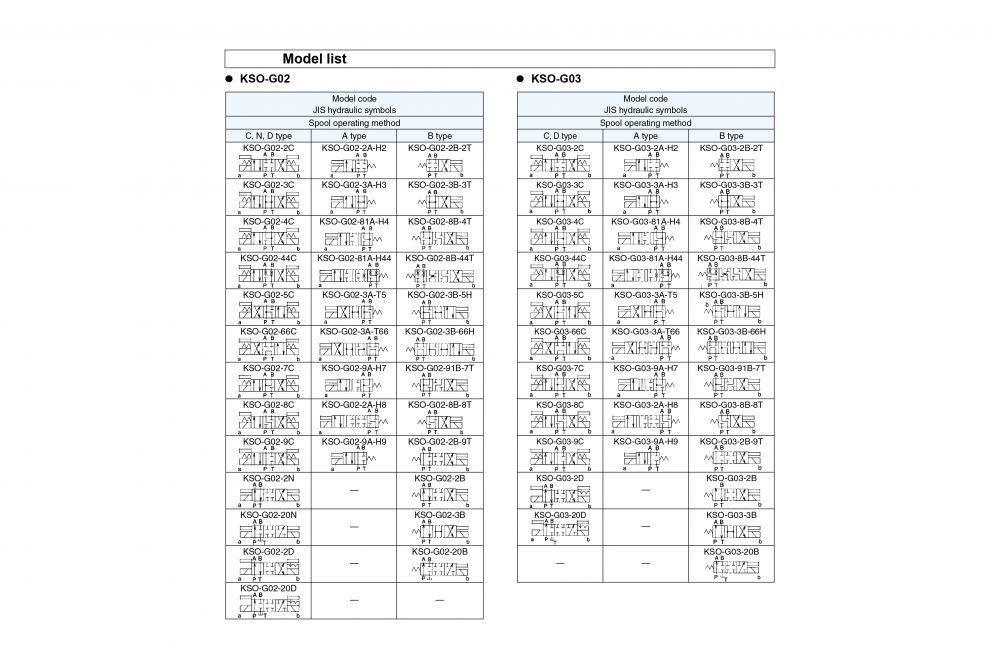

  • Daikin KSO - Solenoid Operated Valve Model List
  • Daikin KSO - Solenoid Operated Valve Option Mark Table
  • Daikin KSO G02 - Solenoid Operated Valve Solenoid Specifications
  • Daikin KSO G03 - Solenoid Operated Valve Solenoid Specifications

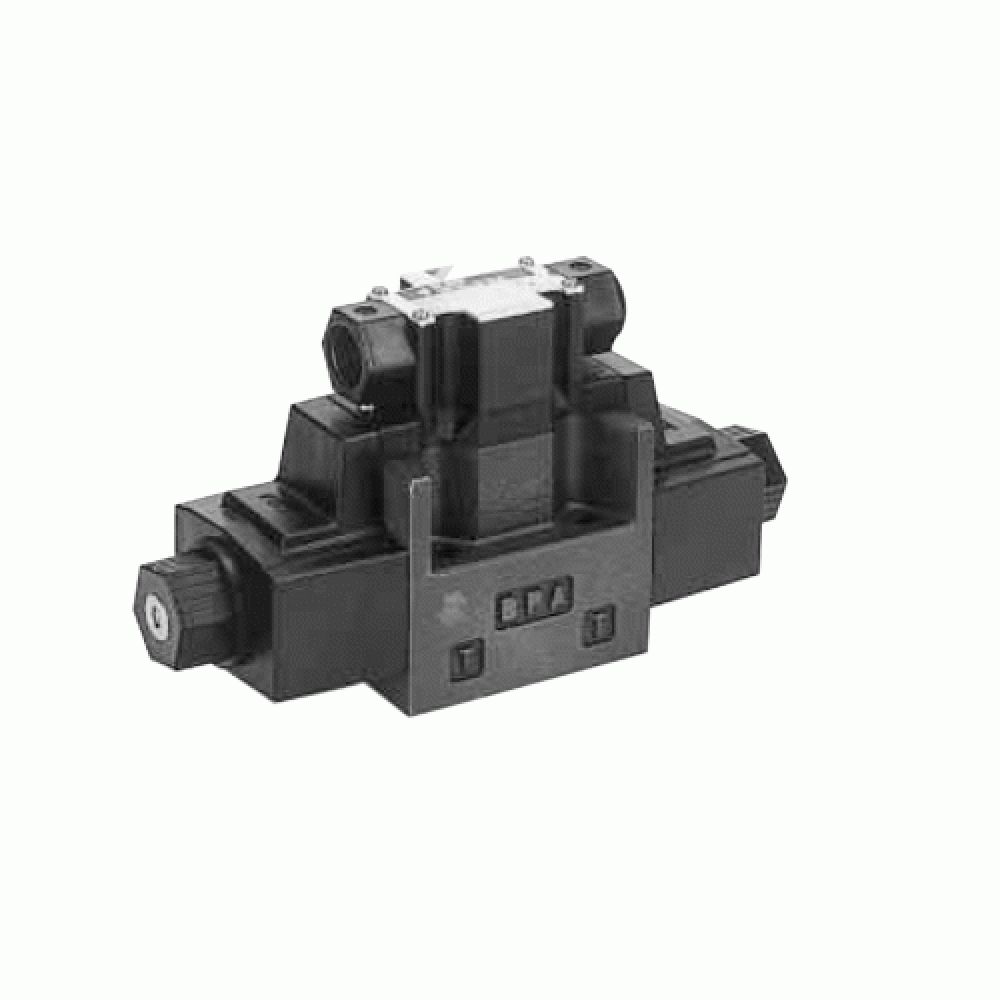

Daikin KSO – Solenoid Operated Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

The Daikin KSO Solenoid Operated Valve sustains high pressure and has a large flow rate such as 35MPa {350kgf/cm2}, 100L/min. (G02), 160L/min. (G03).

This valve suits for the structure not only with dust-proof and water-proof complying with IEC Pub529 IP65, but also coping with Europe safety standards (CE).

Product Specification

Description KSO-G02 KSO-G03
Nom. Dia 1/4 3/8
Max Operating Pressure 35 MPa (350 kgf/cm²) 25 MPa (250 kgf/cm²)
Max Flow Rate 100 L/min 160 L/min (DC), 130 L/min (AC)
Permissible Back Pressure 17.5 MPa {175 kgf/cm²} 16 MPa {160 kgf/cm²}
Max Switching Frequency 240 AC & DC 240 AC & DC
Max Switching Frequency With Rectifier 120 120
Max Switching Frequency with Surge Killer 100 60
Insulation Skin IEC Pub529 IP65 IEC Pub529 IP65

Daikin – KSO – Solenoid Operated Valve – Datasheet

Additional Information

Manufacturer

Daikin

Directional Control Valves

Direct Solenoid Operated
