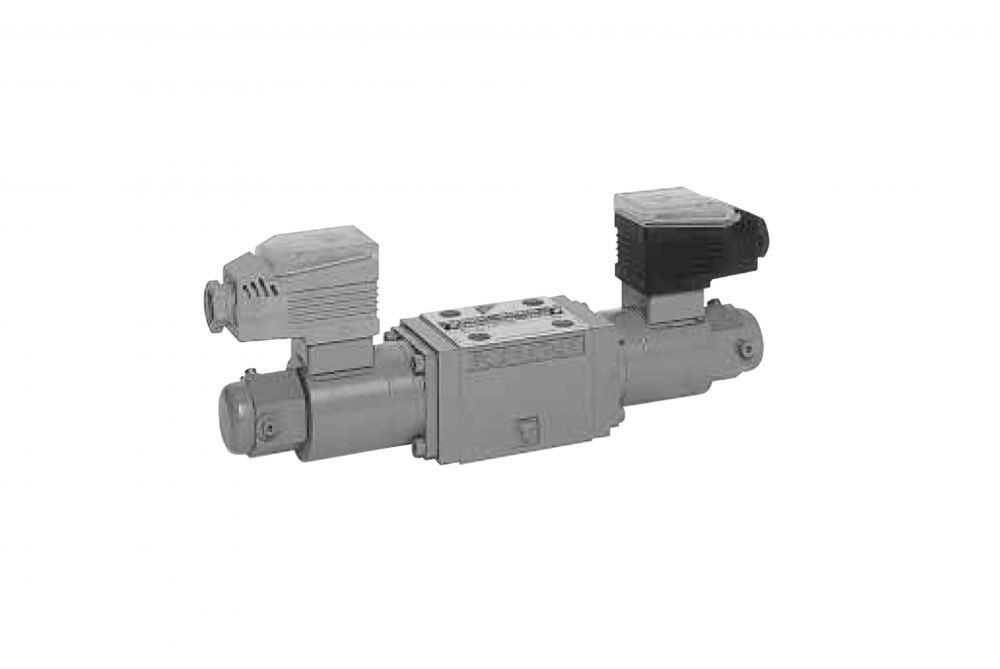

Daikin KSP – Direct Solenoid Proportional Switching Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

  • The Daikin KSP Direct Proportional Switching Valve has the capability of switching in four directions enabling the control of the actuator's round process.
  • This valve itself can be used for a shock-less switching valve.
  • With a differential transformer:
    • A proportional solenoid directly drives a spool and detects the variation of the position, carrying out a feed back control for the spool position.
    • The combination of a pressure compensation valve and an exclusive driver makes it possible to do a proportional flow control in high accuracy.
  • Without differential transformer:
    • Mounts an exclusive driver (ZDN-2-10).
    • The combination with a pressure compensation valve enables it to use as an easy type flow control valve.





Product Specification

Model Code Nom Dia Max
Op Press
Rated
Flow Rate
Permissible
Back Pressure
Single
Solenoid Weight
Double
Solenoid Weight
 KSP-G02-**1-10 1/4″ 35 MPa {350kgf/cm²} 10 L/min 2.5 MPa {25 kgf/cm²} 2.1 kg 2.7 kg
 KSP-G02-**2-10 1/4″ 35 MPa {350kgf/cm²} 18 L/min 2.5 MPa {25 kgf/cm²} 2.1 kg 2.7 kg
 KSP-G02-**1-10-M 1/4″ 35 MPa {350kgf/cm²} 10 L/min 2.5 MPa {25 kgf/cm²} 2.5 kg 3.1 kg
 KSP-G02-**2-10-M 1/4″ 35 MPa {350kgf/cm²} 18 L/min 2.5 MPa {25 kgf/cm²} 2.5 kg 3.1 kg
 KSP-G02-**3-10-M 1/4″ 35 MPa {350kgf/cm²} 30 L/min 2.5 MPa {25 kgf/cm²} 2.5 kg 3.1 kg
 KSP-G03-**4-10 3/8″ 35 MPa {350kgf/cm²} 40 L/min 16 MPa {160 kgf/cm²} 4.8 kg 6.5 kg
 KSP-G02-**1-10 3/8″ 35 MPa {350kgf/cm²} 50 L/min 16 MPa {160 kgf/cm²} 4.8 kg 6.5 kg

Daikin – JKSP – Direct Solenoid Proportional Switching Valve – Datasheet

Additional Information

Manufacturer

Daikin

Proportional Products

Directional Control Without On-Board Control
