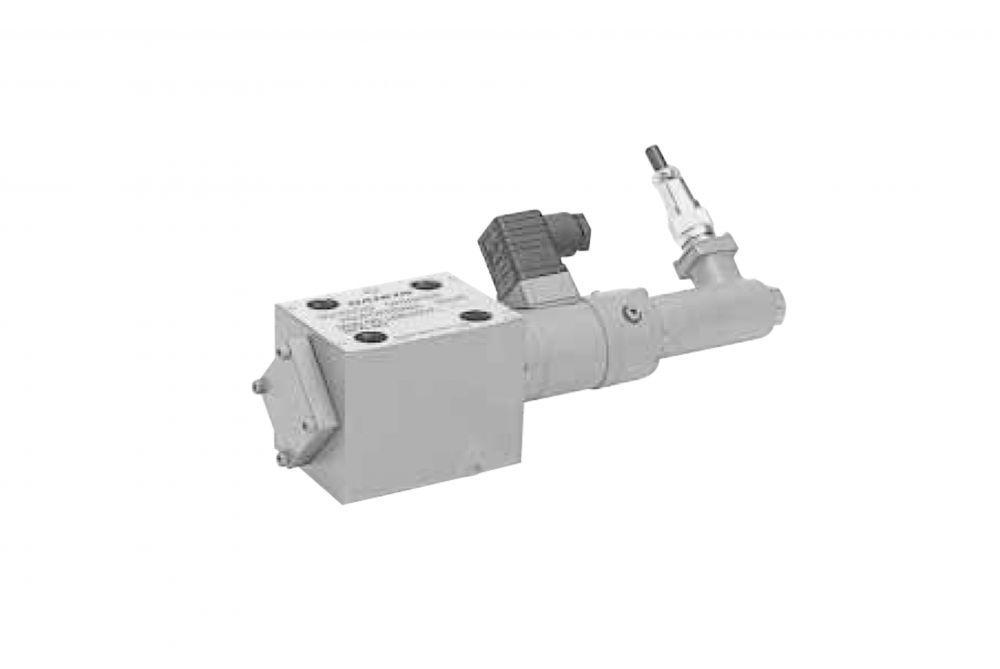

Daikin LEM – Direct Type Solenoid Proportional Throttle Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

  • The Daikin LEM Proportional Throttle Switching valve carries out feedback control of spool position by detecting the variation of the spool with a differential transformer, as the proportional solenoid directly drives the spool.
  • A combination of pressure compensation valve and an exclusive driver makes it possible to create a proportional flow control in high accuracy.
  • The LEM valve is a stack type and can carry out the T port's meter-out control in a proportional flow control system, in high accuracy by means of attaching a stack under a solenoid operated valve creating an exclusive reducing type pressure compensation valve.

Product Specification

Model Code Nom Dia Max
Op Press
Rated
Flow Rate
Coil Resistance Initial Current Rated
Flow Current
 LEM-G02-F-20 1/4″ 21 MPa {210 kgf/cm²} 25 L/min 26 Ω 300 mA 700 mA
LEM-G03-F-20 3/8″ 35 MPa {350kgf/cm²} 50 L/min 26 Ω 300 mA 700 mA
LEMT-G03-F-20 3/8″ 21 MPa {210 kgf/cm²} 50 L/min 26 Ω 300 mA 700 mA
LEMT-G04-F-20 1/2″ 21 MPa {210 kgf/cm²} 130 L/min 13 Ω 500 mA 1540 mA
LEMS-02*-30 1/4″ 21 MPa {210 kgf/cm²} 25 L/min 26 Ω 300 mA 700 mA
LEMS-03T-20 3/8″ 21 MPa {210 kgf/cm²} 50 L/min 26 Ω 300 mA 700 mA

Daikin – LEM – Direct Type Solenoid Proportional Throttle Valve – Datasheet
