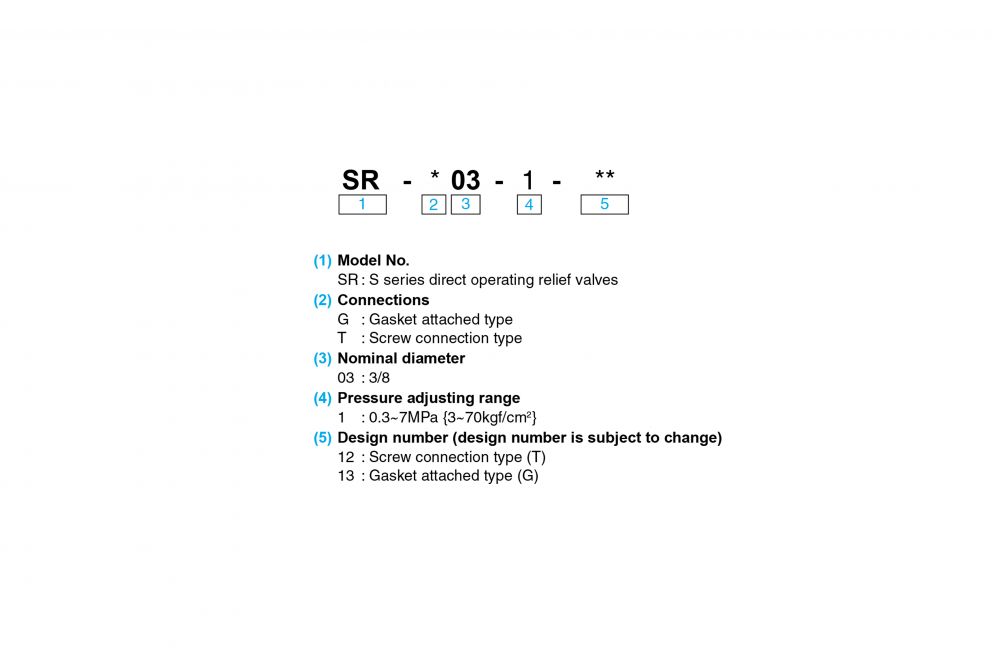

  • Daikin SR - Direct Operated Relief Valve Ordering Information

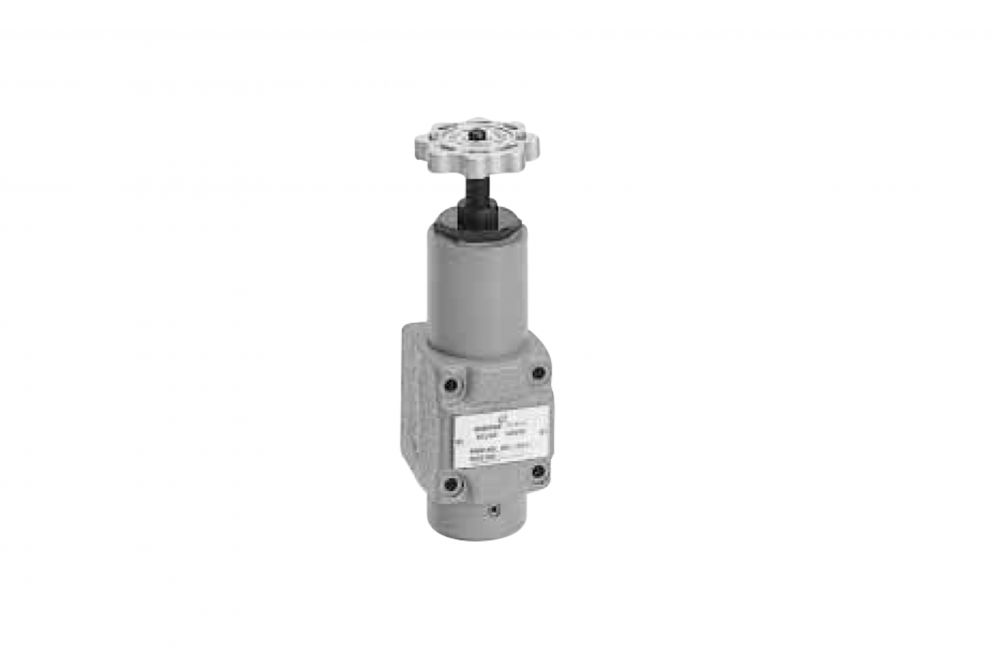

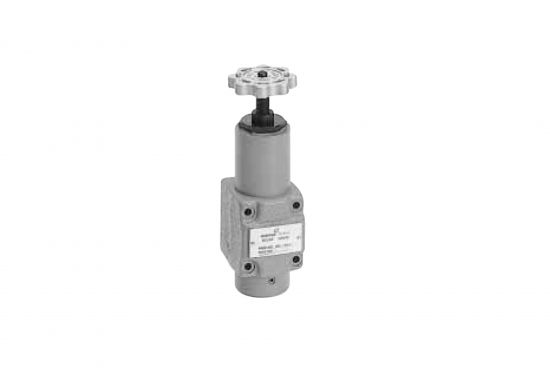

Daikin SR – Direct Operated Relief Valve

~ scroll down to find the part you need ~
Market leaders in environmentally responsible heat pumps, ventilation and air conditioning systems for domestic, commercial and industrial applications.

  • As the override pressure is small, the Daikin SR valve has the equivalent performance to a pilot operated type.
  • The vibration proof structure makes it possible to prevent chattering even in high pressure.
  • Broad range of adjusting is possible and pressure adjusting in low pressure area is easy to do.

Product Specification

Description SR-G03-1-13 SR-T03-1-12
 Nominal Diameter 3/8 “ 3/8 “
 Pressure Adjusting Range  0.3 ~ 7 MPa {3 ~ 70 kgf/cm²} 0.3 ~ 7 MPa {3 ~ 70 kgf/cm²}
 Max Flow Rate 30 L/min 30 L/min
 Weight 2.5 Kg 2 Kg

Daikin – SR – Direct Operated Relief Valve – Datasheet

Additional Information

Manufacturer

Daikin

Pressure Relief Valves

Pressure Relief Valves
