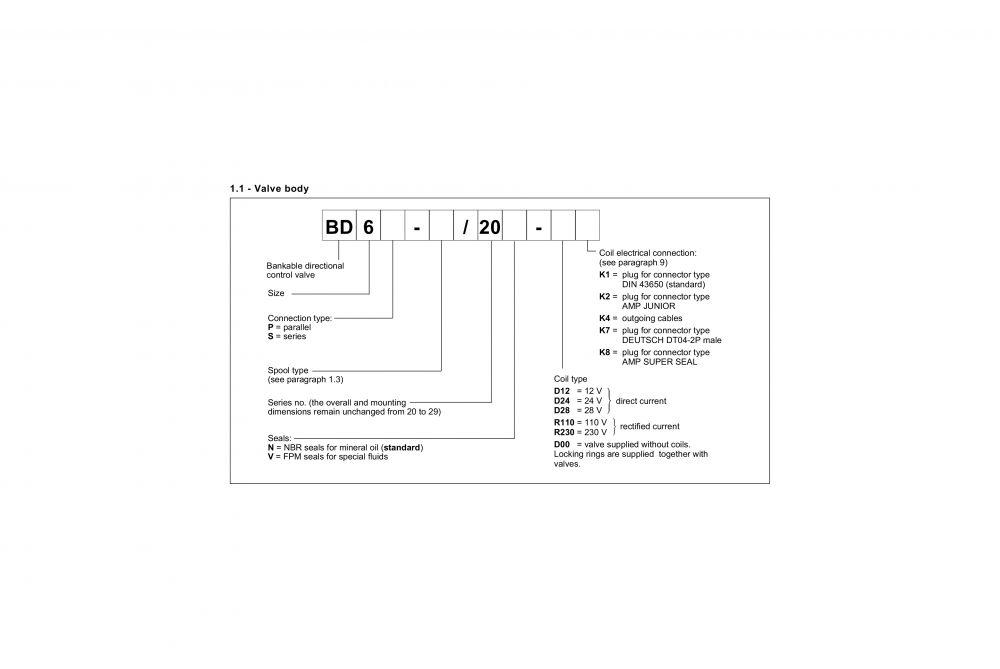

  • Duplomatic BD6 - Ordering Information

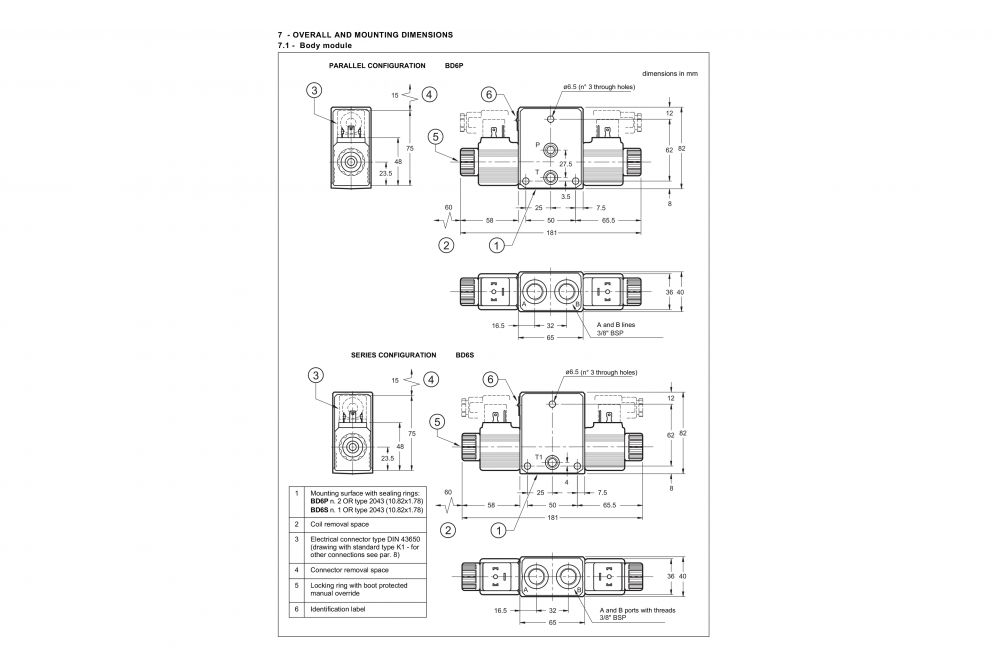

  • Duplomatic BD6 - Mounting Dimensions

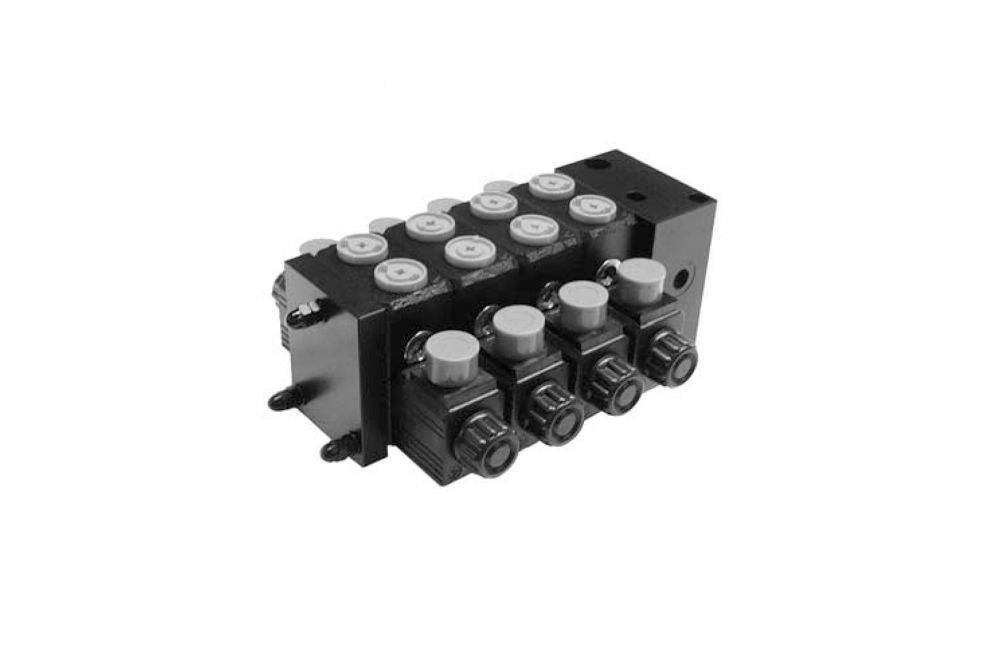

Duplomatic BD6 – Bankable Directional Control Valves

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic BD6 bankable hydraulic valve, very well-rounded thanks to its modular design, up to 6 body-modules, series or parallel connection. The BD6 valve is suitable for compact applications in the mobile and mini-power pack industries. A version with built-in pilot check valves is available for the series configuration.

The directional control valve BD6 is a bankable valve very well-rounded thanks to its modular design.

This valve has been designed to be assembled with series or parallel connection, mounting up to 6 body-modules.

The BD6 valve is suitable for compact applications in the mobile and mini-power pack industries.

The intake ports A and B, the inlet P and the outlet T are 3/8” BSP threaded.

A version with built-in pilot check valves is available for the series configuration.

The series configuration allows a max operating pressure of 250 bar.

Tech pecs: pmax 280 bar – Qmax 40 l/min

Product Specification

Description Units
Maximum Operating Pressure – Ports P – A – B (Parallel) 280 bar
Maximum Operating Pressure – Ports P – A – B (Series) 250 bar
Maximum Operating Pressure – T and T1 Ports 250 bar
Maximum Flow Rate – Parallel 45 l/min
Maximum Flow Rate – Series 20 l/min
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Single Body Mass 1,84 kg
Surface Treatment of Body and Plates Thermochemical Antioxidant

Duplomatic – BD6 – Bankable Directional Control Valves – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Bankable Solenoid Valves
