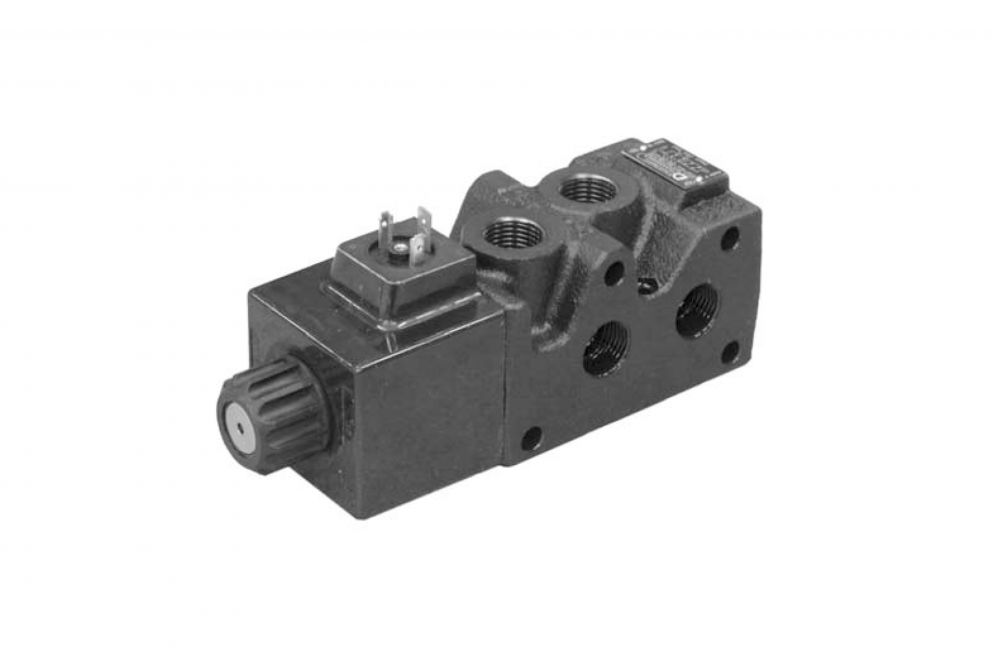

  • Duplomatic BFD - Bankable Six Way Flow Selection Switch

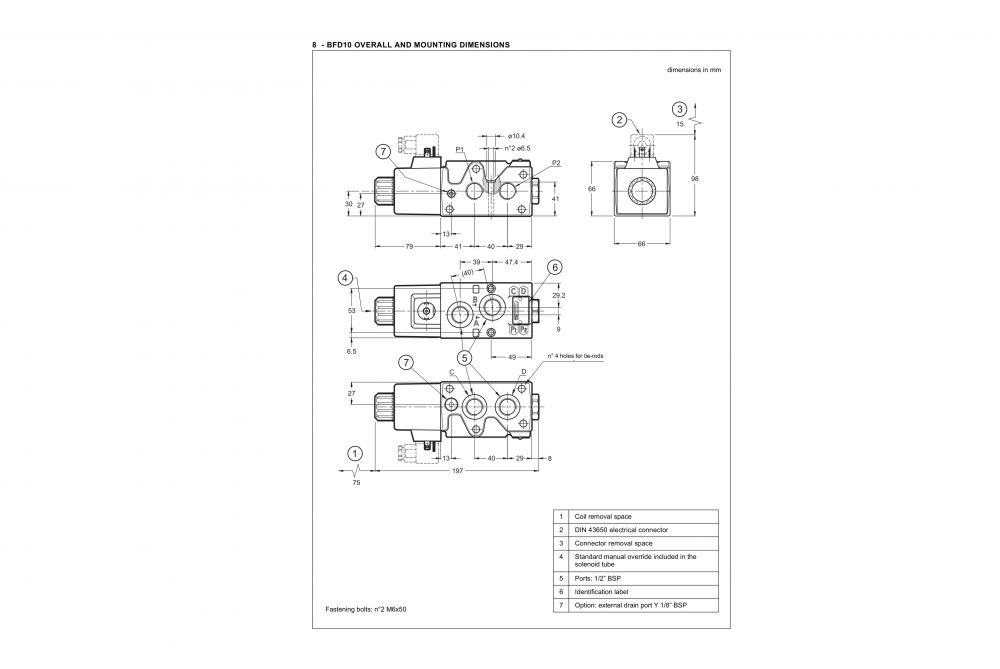

  • Duplomatic BFD10 - Mounting Dimensions

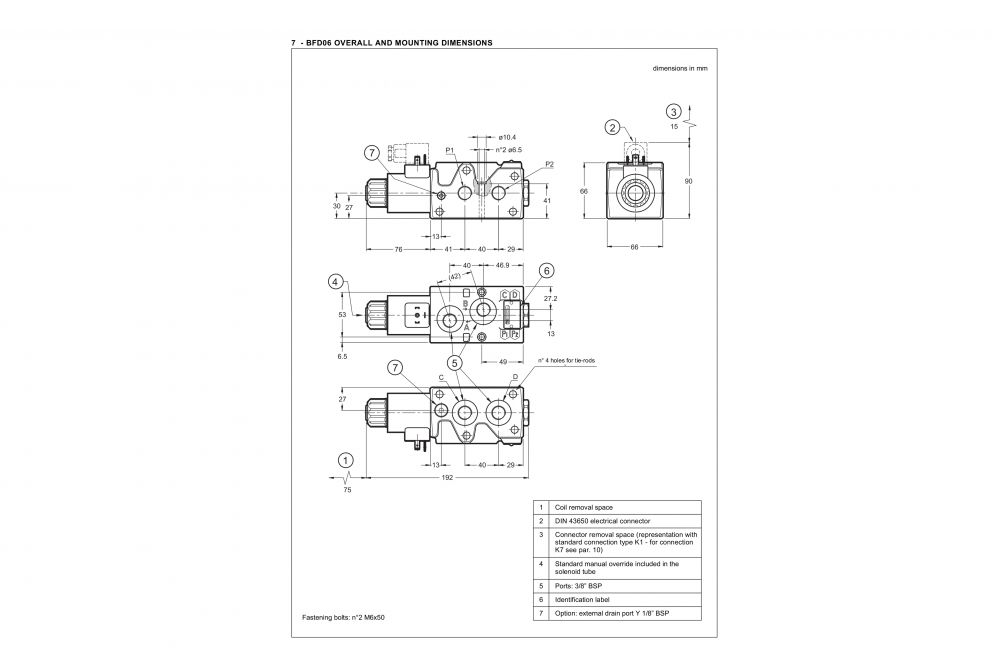

  • Duplomatic BFD06 - Mounting Dimensions
  • Duplomatic BFD - Ordering Information

Duplomatic BFD* – Bankable Six-Way Flow Selection Switch

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic BFD* is a 6 ways bankable flow diverter that allows the simultaneous connection of 2 utilities, alternating the direction of flow through a solenoid operated directional valve.

It is available in two sizes, depending on the requested flow, and is used mainly for compact applications for the mobile sector.

Valve BFD is also suitable for series mounting, lining up to max 5 modules.

The external drain is available as an option on both versions.

Suitable for mobile applications, in particular for agricultural machines. It allows the simultaneous connection of two ports as a single valve. Used as a bankable valve it allows the connection up to five modules and the consequent moving of six different ports, not at the same time. Optional external drainage.

Tech specs: pmax 320 bar – Qmax 60-90 l/min

Product Specification

Description BFD06 BFD10
Maximum Operating Pressure 250 bar 250 bar
Maximum Operating Pressure – with Drain Y 320 bar 320 bar
Maximum Flow Rate 60 l/min 90 /min
Ambient Temperature Range -20 / +50°C -20 / +50°C
Fluid Temperature Range -20 / +80°C -20 / +80°C
Fluid Viscosity Range 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt
Single Solenoid Valve Mass 3 kg 4,2 kg
Surface Treatment Thermochemical Antioxidant Thermochemical Antioxidant

Duplomatic – BFD* – Bankable Six-Way Flow Selection Switch – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Bankable Solenoid Valves
