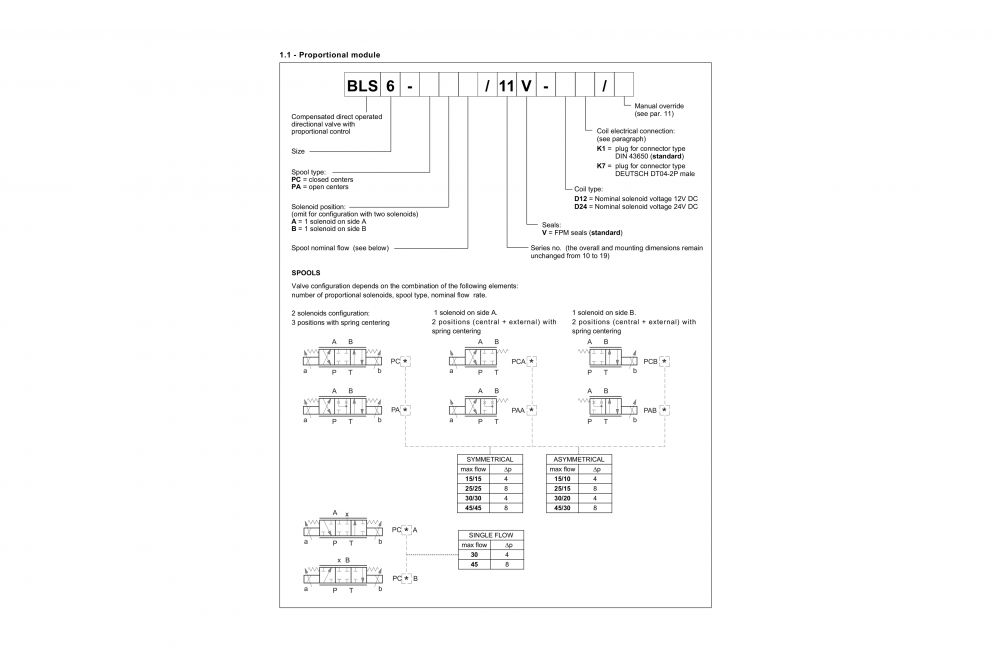

  • Duplomatic BLS6 - Ordering Information

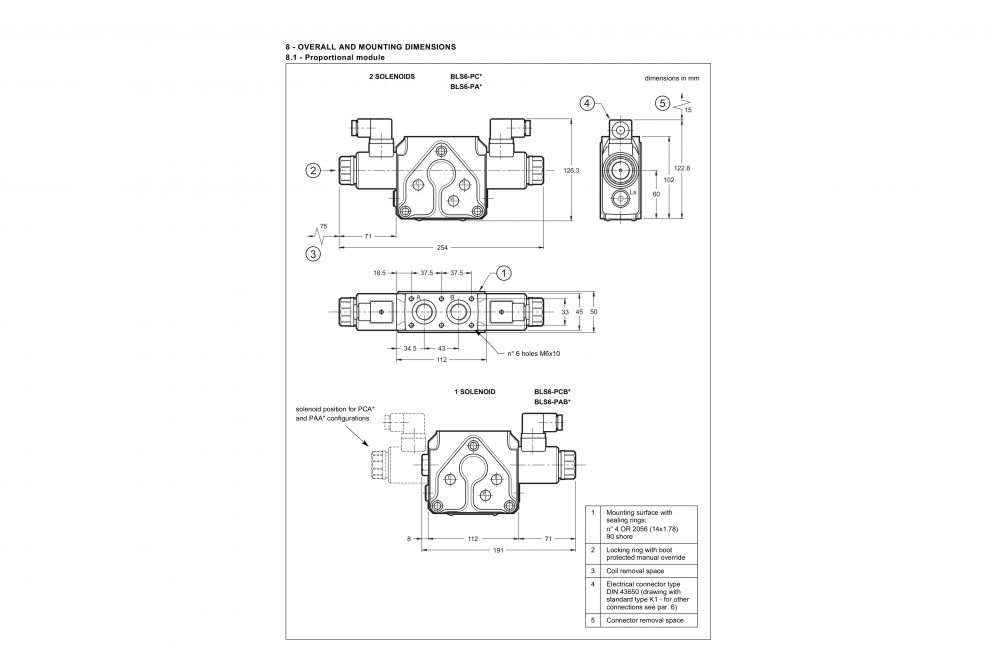

  • Duplomatic BLS6 - Mounting Dimensions
  • Duplomatic BLS6 - Installation Dimensions

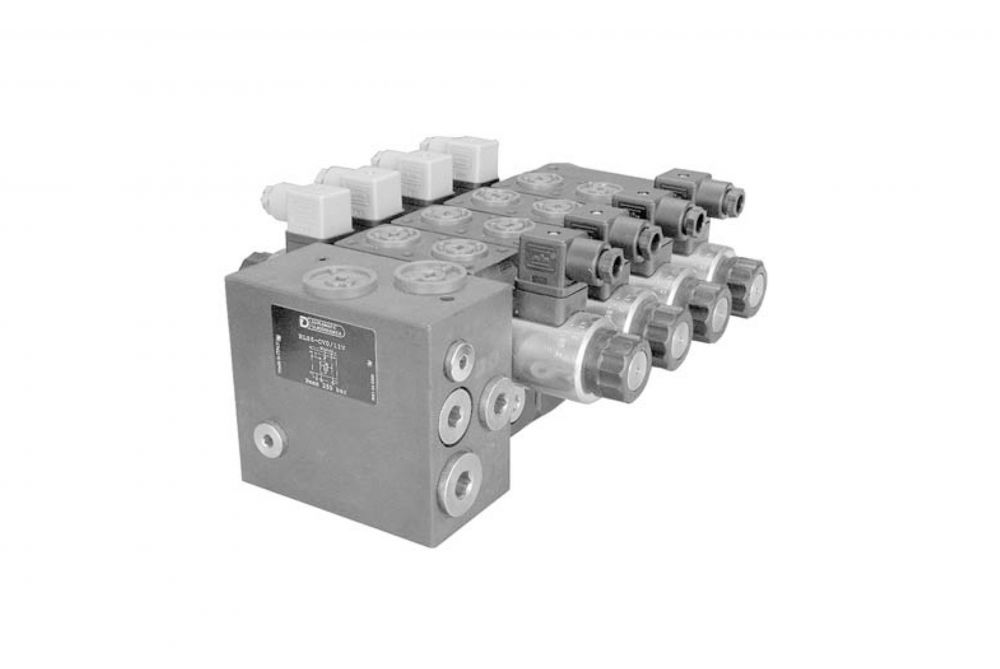

Duplomatic BLS6 – Bankable Load Sensing Proportional Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic BLS6 directional control valve is stackable and can be assembled up to 8 different proportional and on/off modules.

Each module is equipped with a meter-in compensator that keep costant the flow, independently from load changes.

Sections with pressure compensators are not influenced in any way by other operated functions, provided that sufficient pump capacity is available. To correctly work, the sum of the flows contemporarily used must not overcome the 90% of the inlet flow.

The user ports A and B are threaded 1/2” BSP. On the inlet module the ports P1, P2 and T1 are threaded 3/4” BSP.

The manual lever override is available as option.

This is a stackable valve that can be assembled up to 8 different modules. Each module is equipped with a meter-in compensator that keeps costant the flow, independently from load changes. It is particularly suitable for the mobile sector. Wide choice among on-off and proportional spools. Lever command also available.

Tech specs: pmax 300 bar – Qmax 120 l/min

Product Specification

Description Units
Maximum Operating Pressure –  A – B Ports 300 bar
Maximum Operating Pressure – P1 and P2 Ports 250 bar
Maximum Operating Pressure – T1 Ports 20 bar
Maximum Flow Rate – A and B Ports 45 l/min
Maximum Flow Rate – P1 and P2 Ports 100 l/min
Maximum Flow Rate – T1 port 120 l/min
Ambient Temperature Range -20 / + 60°C
Fluid Temperature Range -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Single Body Mass 4,5 kg
Surface Treatment of Body and Plates Thermochemical Antioxidant

Duplomatic – BLS6 – Bankable Load Sensing Proportional Control Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Bankable Solenoid Valves
