Duplomatic CD1-W – Direct Operated Pressure Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

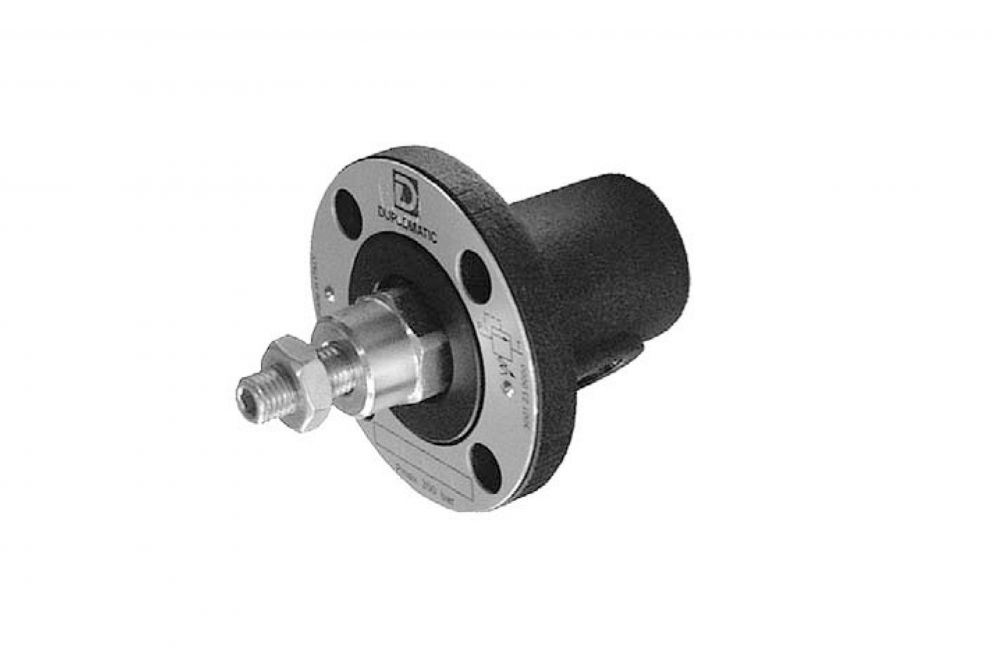

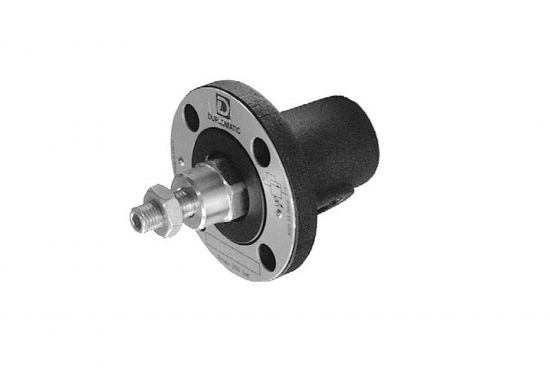

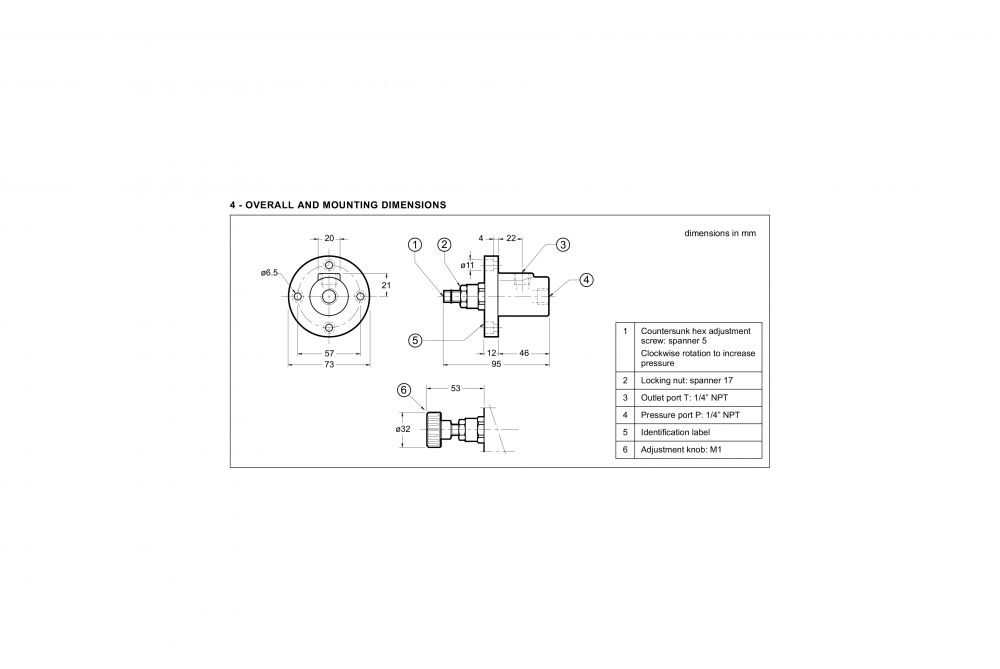

The Duplomatic CD1-W valve is a direct operated pressure control valve with threaded ports and for flange mounting installation.
It is used also for remote piloting of control valves and two-stage pressure reducers.

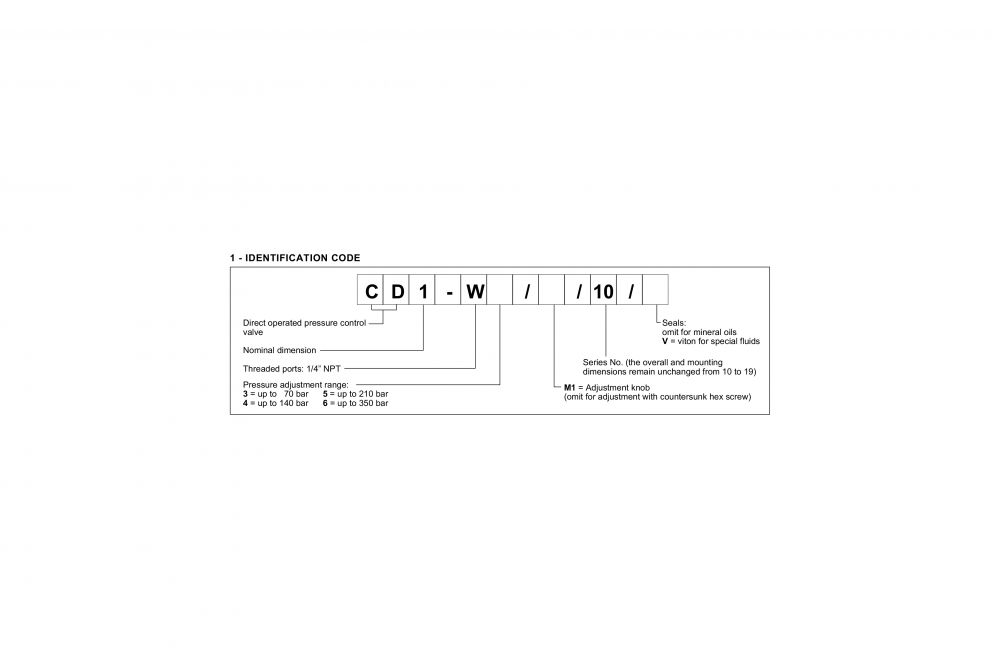

Available in four different pressure control ranges up to 350 bar.
It is normally supplied with a countersunk hex adjustment screw, a locking nut and a maximum adjustment fastener.

Product Specification

Description Units
Maximum Operating Pressure 350 bar
Maximum Flow Rate 3 l/min
Ambient Temperature Range  -20 / +50ºC
Fluid Temperature Range -20 / +80ºC
Recommended Filtration  10 ÷ 400 cSt
Recommended Viscosity  25 cSt
Mass  1,2 kg

Duplomatic – CD1-W – Direct Operated Pressure Control Valve – Data Sheet
