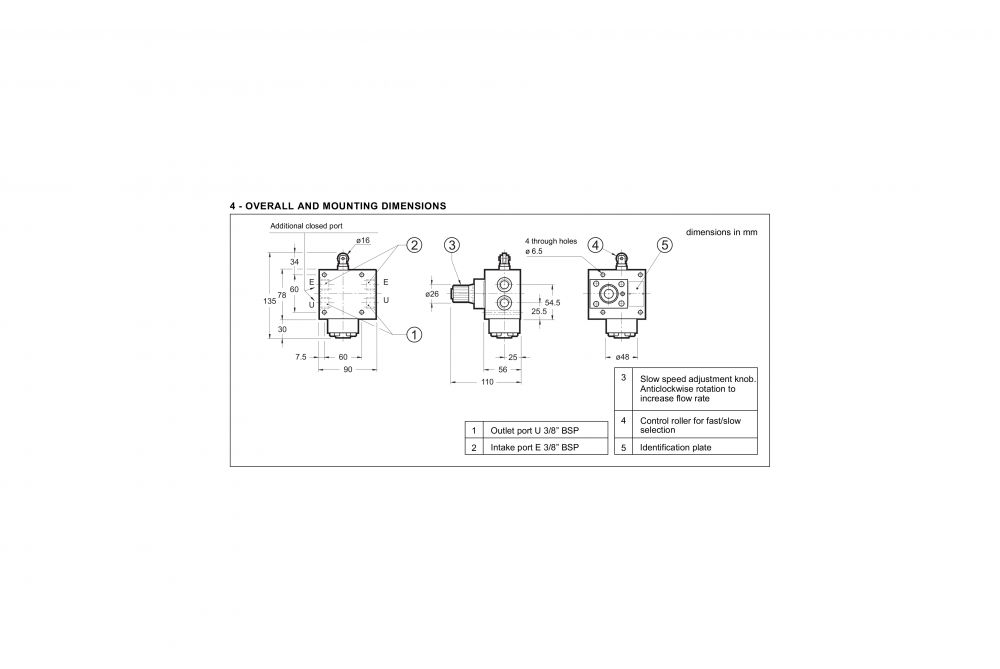

  • Duplomatic CP1R-W - Mounting Dimensions

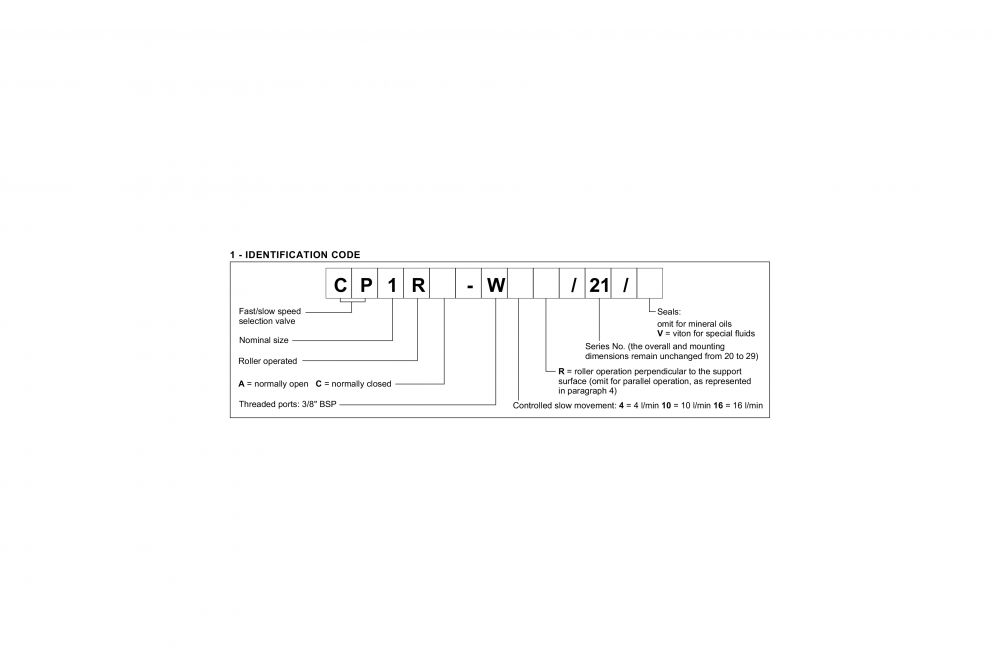

  • Duplomatic CP1R-W - Ordering Information

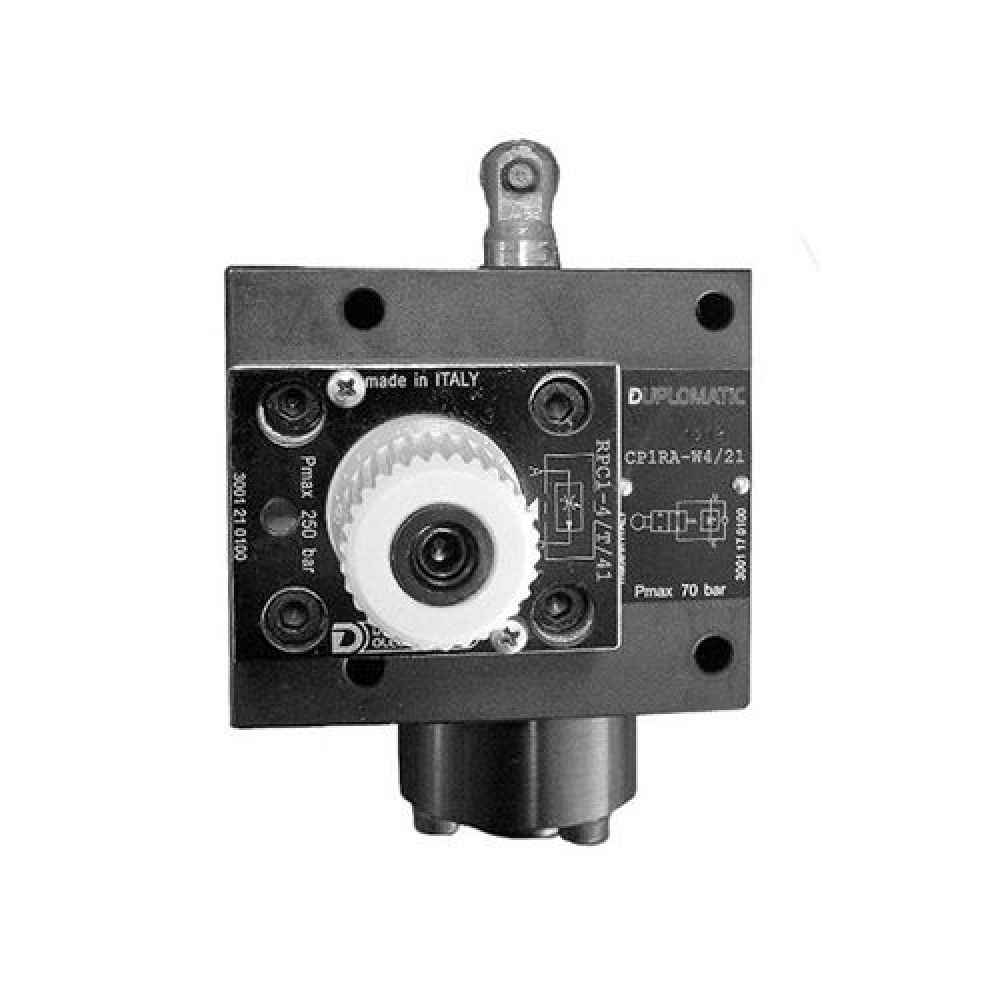

Duplomatic CP1R*-W – Roller Operated Fast/Slow Speed Selection Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.The Duplomatic CP1R*-W valve is used for the selection and control of fast/slow speed of hydraulic axis by mechanical roller operation.
The slow working speed adjustment is obtained by using a pressure compensated flow control valve.
The special shape of the control openings allows fine adjustment even with very low flow rates.
Adjustment of the flow rate is carried out with three turns of the knob that can be locked in any position with a screw.

It is available in two configurations:normally open CP1RA, normally closed CP1RC.

Supplied with an incorporated check valve that allows free passage of the reverse flow.

Product Specification

Description Units
Maximum Operating Pressure 70 bar
Fast Movement Maximum Flow Rate 40 l/min
Maximum Controlled Slow Movement Flow Rate  4 – 10 – 16 l/min
Minimum Controlled Slow Movement Flow Rate 0,1 l/min
Roller Working Movement  6mm
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range  -20 / +80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree
According to ISO 4406:1999
class 20/18/15
Recommended Viscosity  25 cSt
Mass 3,2 kg

Duplomatic – CP1R*-W – Roller Operated Fast/Slow Speed Selection Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Modular Stack Valves

Fast/Slow Speed Selection Valve
