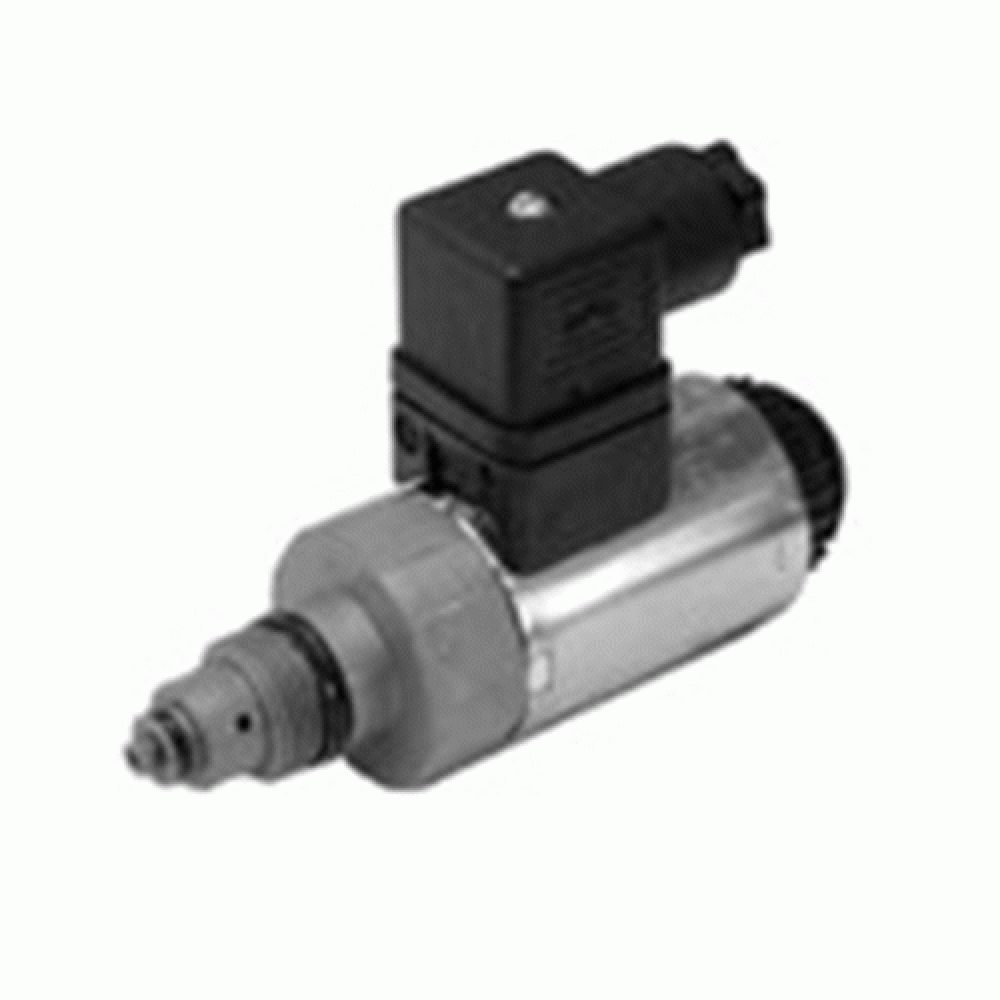

  • Duplomatic CRE direct operated pressure control proportional valve

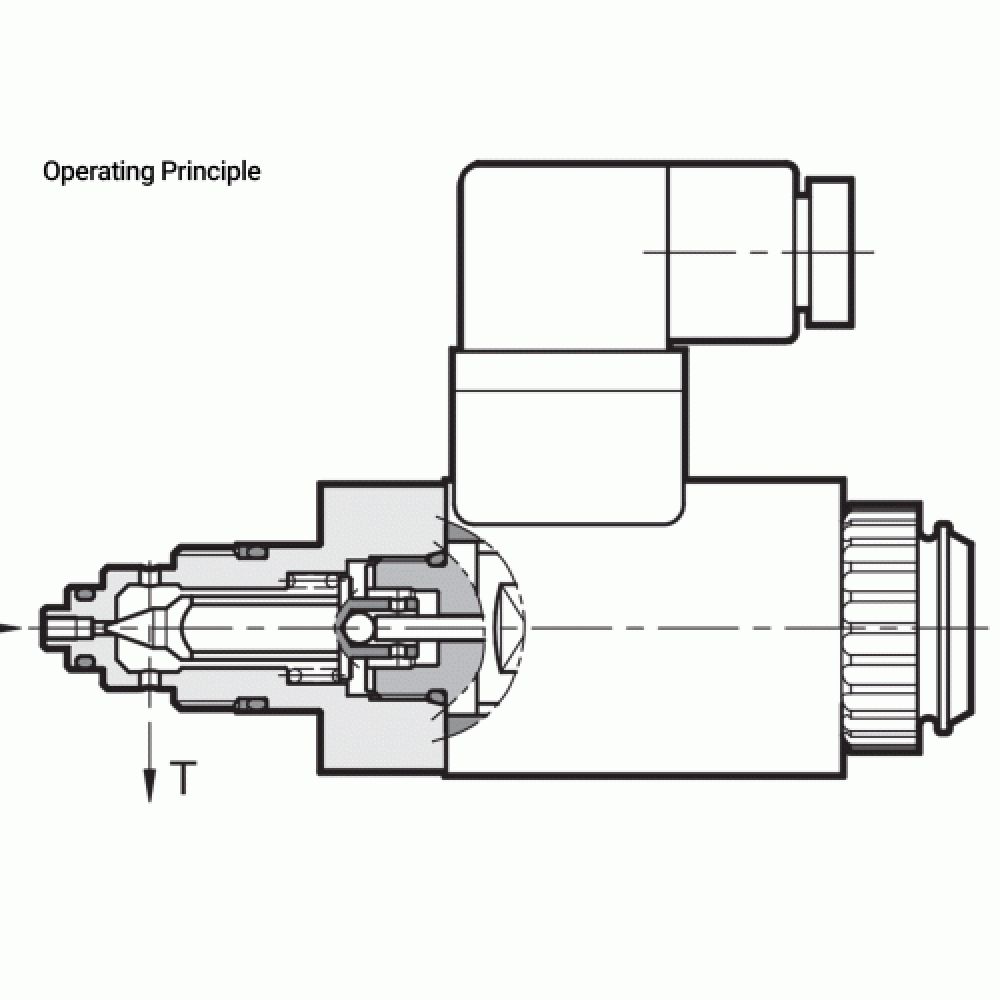

  • Duplomatic CRE direct operated pressure control proportional valve Dimensions
  • Duplomatic CRE direct operated pressure control proportional valve Dimensions

Duplomatic CRE – Directional Operated Pressure Control Proportional Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

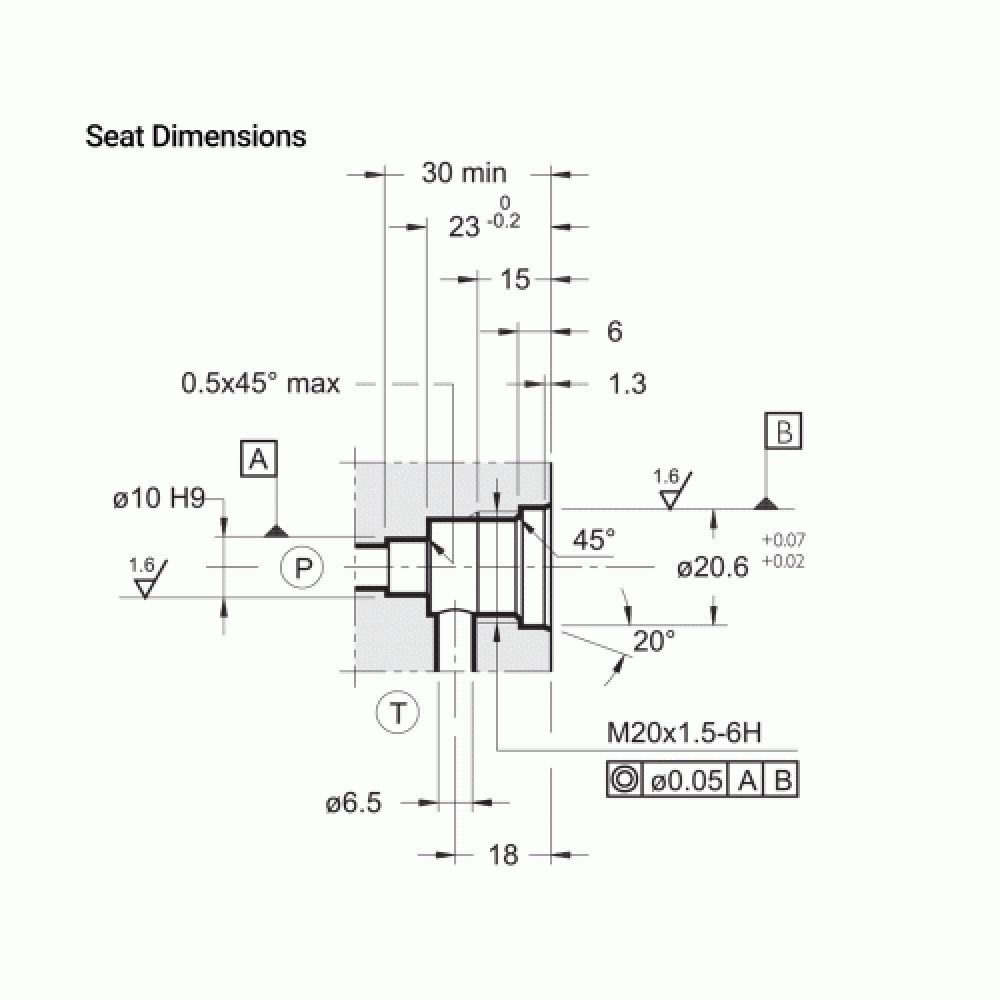

The CRE valve is a direct operated pressure control proportional valve with cartridge execution which can be used in blocks and panels with type D-10A seat.

The valve is suitable as a pilot stage for remote control of two stage pressure control and reducing valves.

Pressure adjustment can be continuous in proportion to the current supplied to the solenoid.

The valve can be controlled directly by a current control power supply unit or by means of the relative electronic control units to exploit valve performance to the full.

The valve is available in three pressure control ranges up to 250 bar.

Product Specification

Description Units
Maximum Operating Pressure P – Port 350 Bar
Maximum Operating Pressure T – Port 2 Bar
Nominal Flow 0.5 l/min
Maximum Flow 1.5 l/min
Hysteresis (with PWM 200 HZ) <5 % of p nom
Repeatability <+1.5 % of P nom
Ambient Temperature Range -10 / + 50°C
Fluid Temperature Range – 20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 18/16/13
Recommended Viscosity 25 cSt
Mass 0.54 Kg

Duplomatic – CRE – Directional Operated Pressure Control Proportional Valve – Data Sheet
