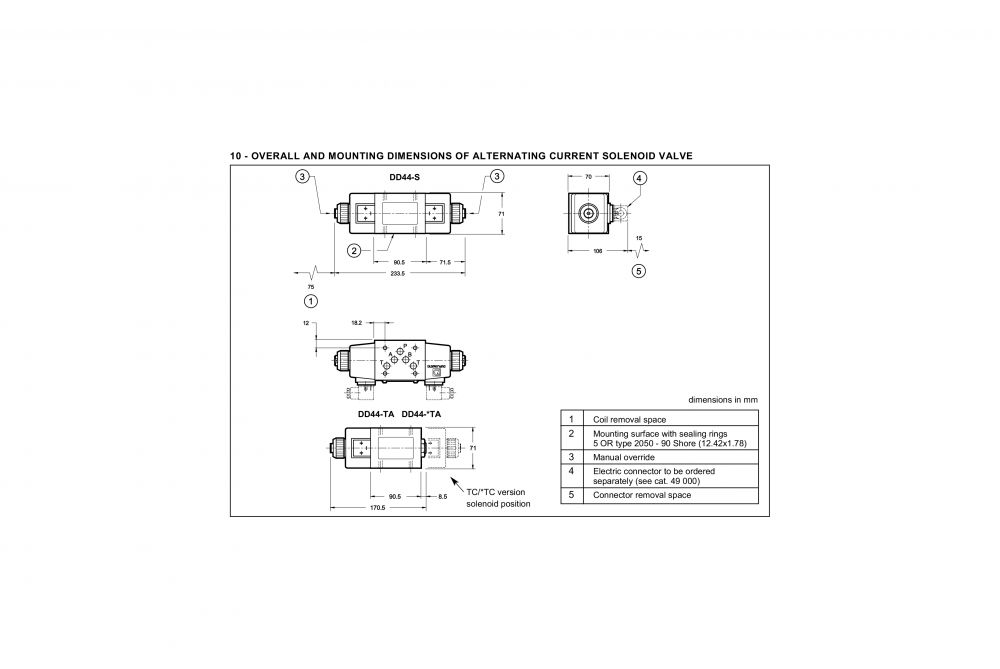

  • Duplomatic DD44 - Alternating Current Overall Mounting Dimensions

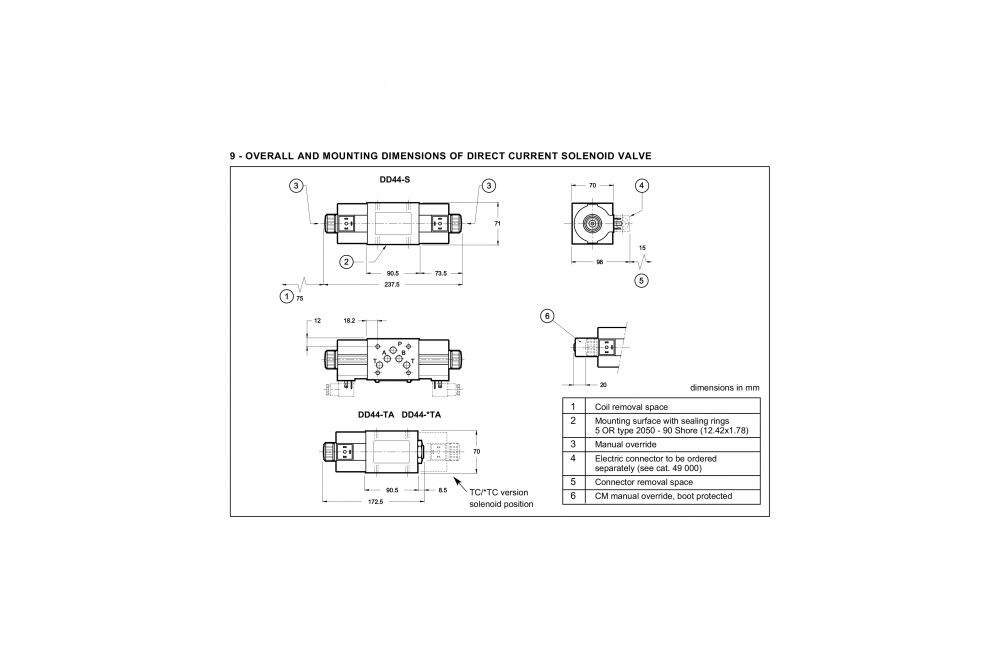

  • Duplomatic DD44 - Direct Current Overall Mounting Dimensions
  • Duplomatic DD44 - Ordering Information

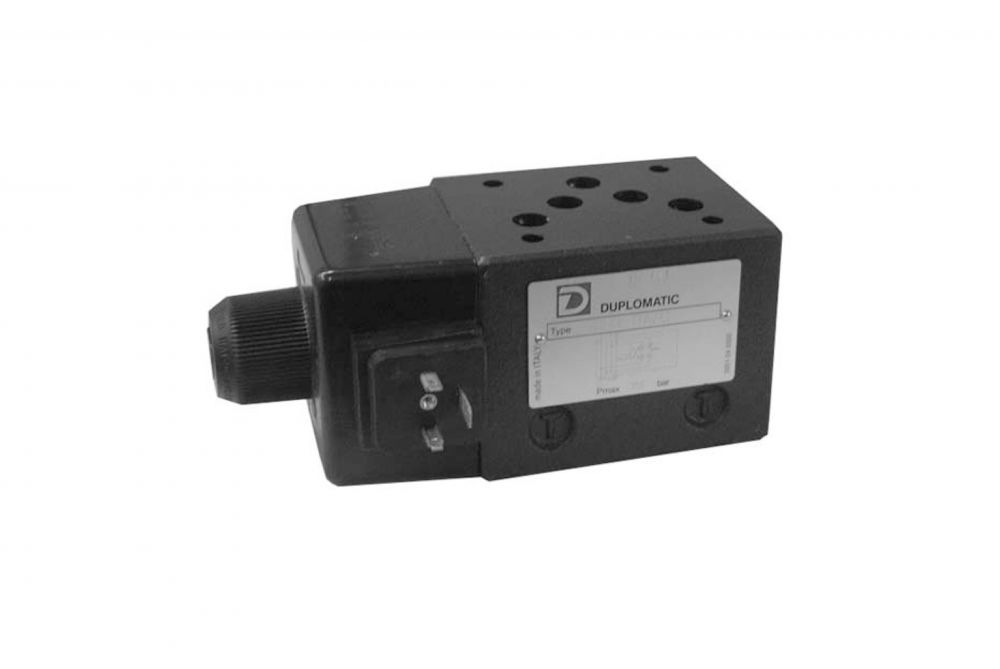

Duplomatic DD44 – Solenoid Operated Directional Control Valve – Modular

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic DD44 is used to switch multiple flow directions or to select pressure values.

The oil passage holes pass right through the entire valve body and due to this particular design feature, the DD44 can be assembled with all ISO 4401-05 (CETOP 05) modular valves.

The special connection of this hydraulic valve in parallel to the P, T, A and B lines of the circuit allows easy construction of different hydraulic configurations, reducing pressure drops to a minimum.

Product Specification

Description Units
Maximum Operating Pressure – Ports P – A – B 280 bar
Maximum Operating Pressure – Ports T 140 bar
Maximum Flow Rate 75 l/min
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Single Solenoid Mass 4,5 kg
Double Solenoid Mass 3,6 kg

Duplomatic – DD44 – Solenoid Operated Directional Control Valve – Modular – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Direct Solenoid Operated
