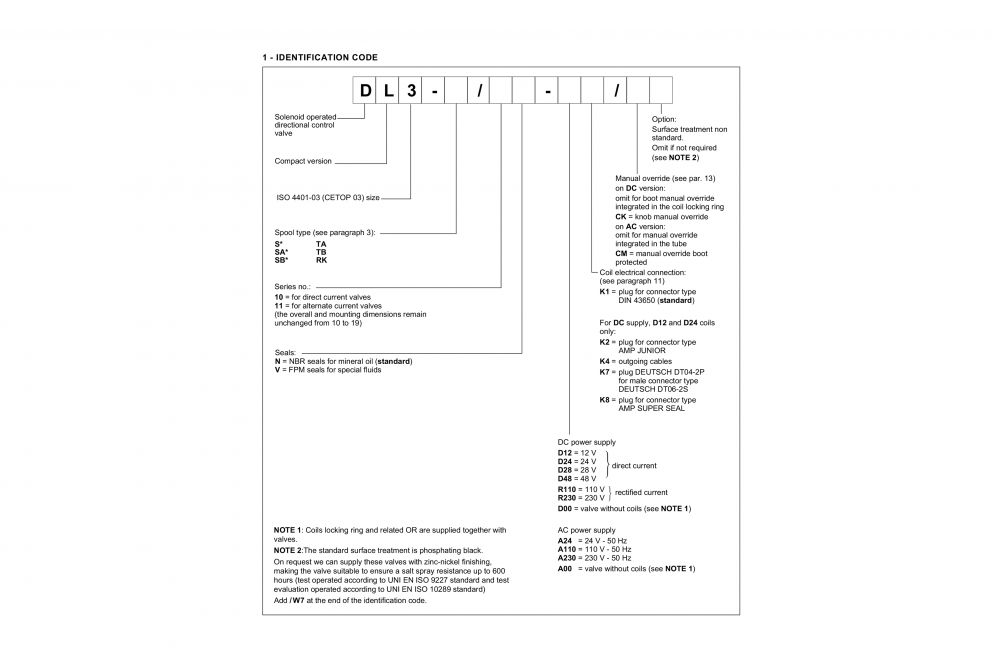

  • Duplomatic DL3 - Ordering Information

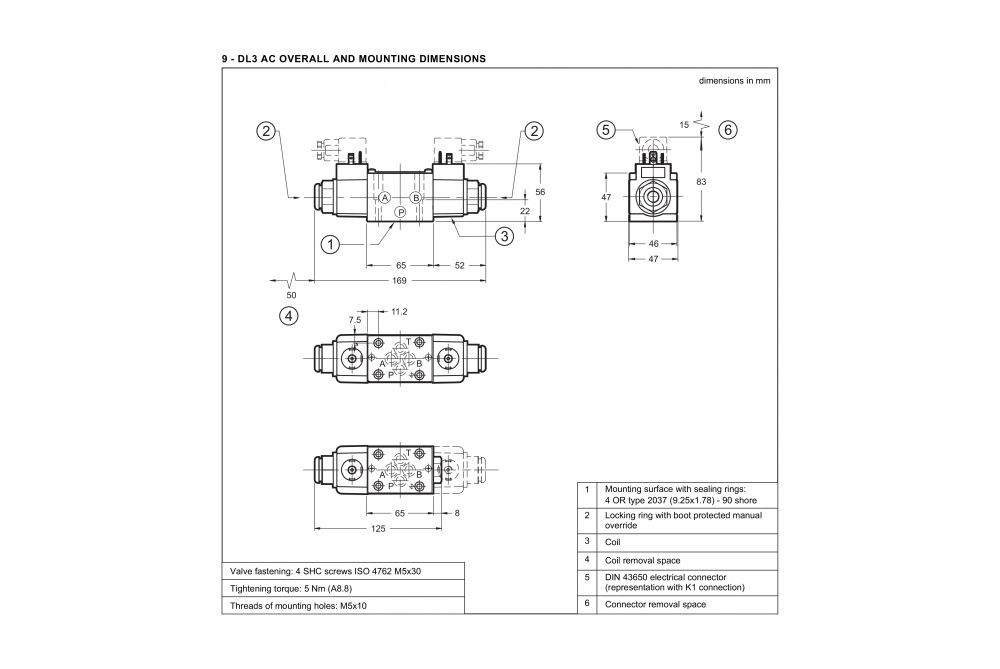

  • Duplomatic DL3 - AC Mounting Dimensions
  • Duplomatic DL3 - DC Mounting Dimensions

Duplomatic DL3 – Solenoid Operated Directional Control Valve

~ scroll down to find the part you need ~

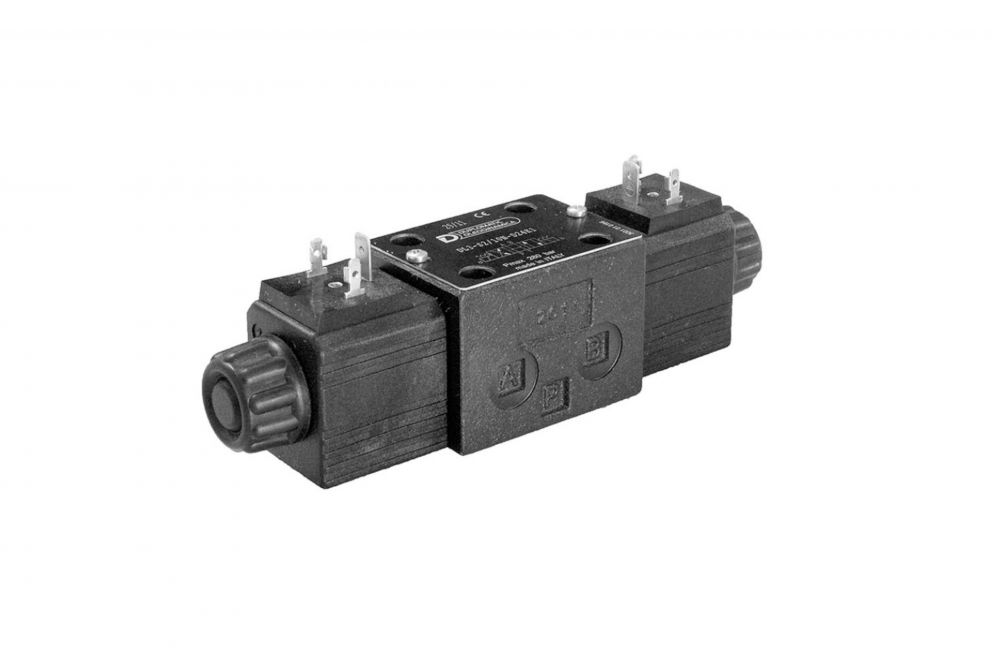

The Duplomatic Dl3 Direct acting, subplate mounting directional control hydraulic valve, CETOP 03, with mounting surface according to ISO 4401-03 (CETOP RP 121H) standards.

Suitable for the mobile sector (agricultural machines), it has four different surface treatments available: standard phosphating, carbonitriding with oxidation process, semi-gloss epoxy painting,gloss polyurethane. The valve is available with DC or AC current solenoids and with several types of electrical connections (DIN 43650, AMP JUNIOR, with outgoing cables, DEUTSCH DT04-2P, AMP SUPER SEAL, DUAL DIN 43650), to cover various installation requirements.

Compact design with reduced solenoid dimensions, suitable for mini-power packs and mobile and agricultural applications.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with interchangeable coils are used.

The valve is supplied with 3 or 4 way designs and with several interchangeable spools with different porting arrangements.

The valve is available with DC or AC current solenoids and with several types of electrical connections to cover various installation requirements.

The DC valve comes with boot protected manual override which ensures a protection degree IP69K with connections type K7 and K8.

Tech specs: pmax 280 bar – Qmax 50 l/min

Product Specification

Description CC CA
Maximum Operating Pressure – Ports P – A – B 280 bar 280 bar
Maximum Operating Pressure – Port T 250 bar 160 bar
Maximum Flow Rate 50 l/min 50 l/min
Electrical Connections DIN 43650 DIN 43650
Ambient Temperature Range -20 / + 50°C -20 / + 50°C
Fluid Temperature Range -20 / + 80°C -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt
Single Solenoid Valve Mass 1,1 kg 1,1 kg
Double Solenoid Valve Mass 1,4 kg 1,4 kg

Duplomatic – DL3 – Solenoid Operated Directional Control Valve – Data Sheet
