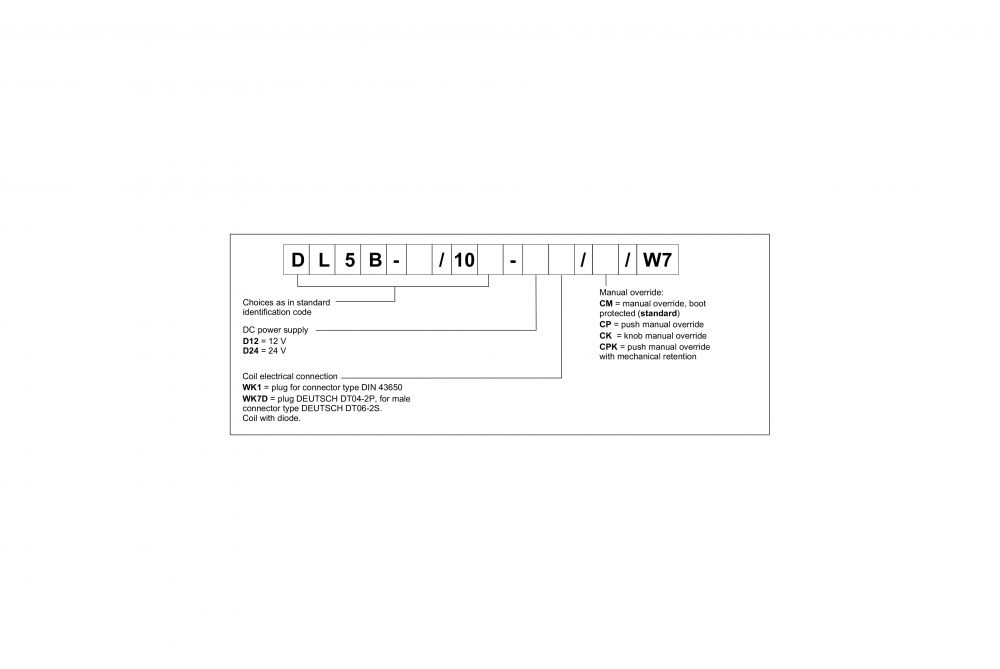

  • Duplomatic DL5B - High Corrosive Resistance Ordering Information

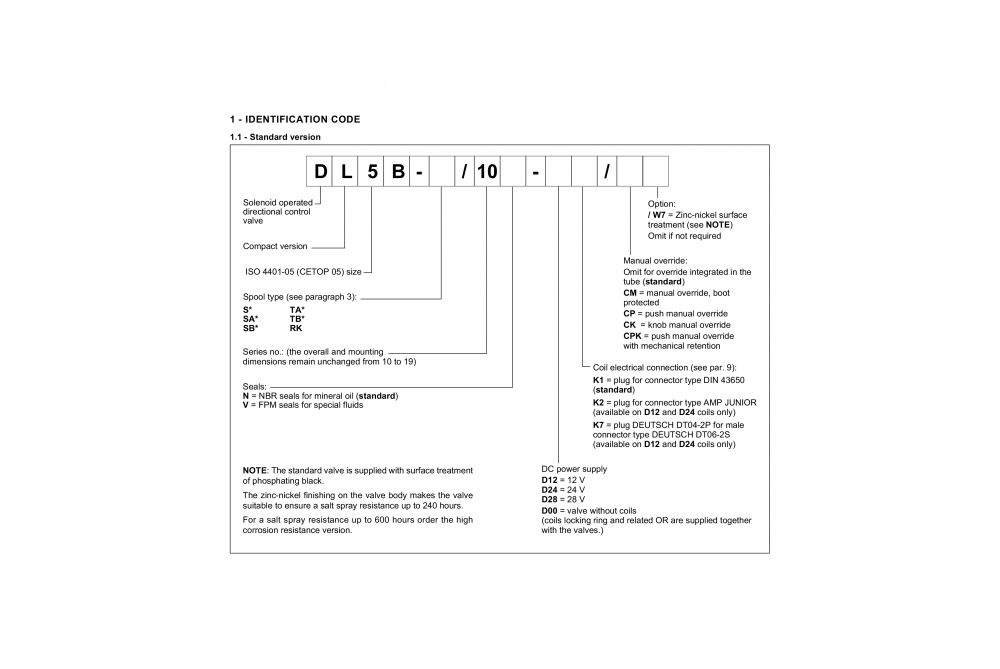

  • Duplomatic DL5B - Ordering Information
  • Duplomatic DL5B - Mounting Dimensions

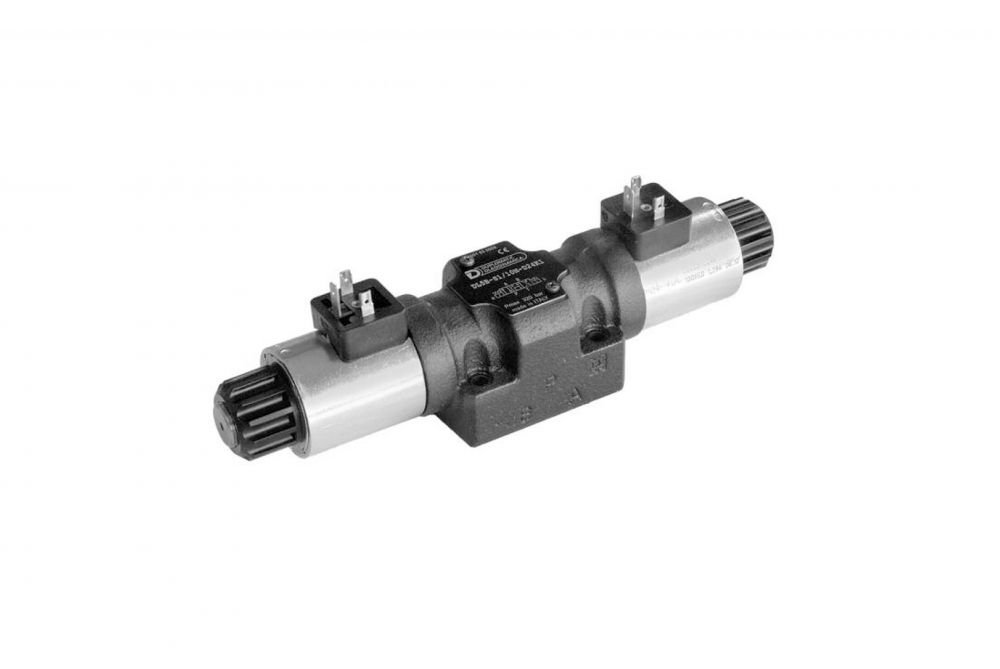

Duplomatic DL5B – DC Solenoid Operated Directional Control Valve – Compact

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic DL5B direct acting, subplate mounting directional control hydraulic valve, CETOP 05, with mounting surface according to ISO 4401 (CETOP RP 121H) standards.

The valve is suitable for special applications, guaranteed by the reduced solenoid dimensions.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with interchangeable coils are used.

The valve is supplied with 3 or 4 way designs and with several interchangeable spools with different porting arrangements.

The valve is available with DC current solenoids only.

Tech Specs: pmax 320 bar – Qmax 125 l/min

Product Specification

Description Units
Maximum Operating Pressure – Ports P – A – B 320 bar
Maximum Operating Pressure – Ports T 210 bar
Maximum Flow Rate 125 l/min
Ambient Temperature Range -20 / + 50°C
Fluid Temperature Range -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Single Solenoid Mass 2,4 kg
Double Solenoid Mass 3 kg

Duplomatic – DL5B – DC Solenoid Operated Directional Control Valve – Compact – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Direct Solenoid Operated
