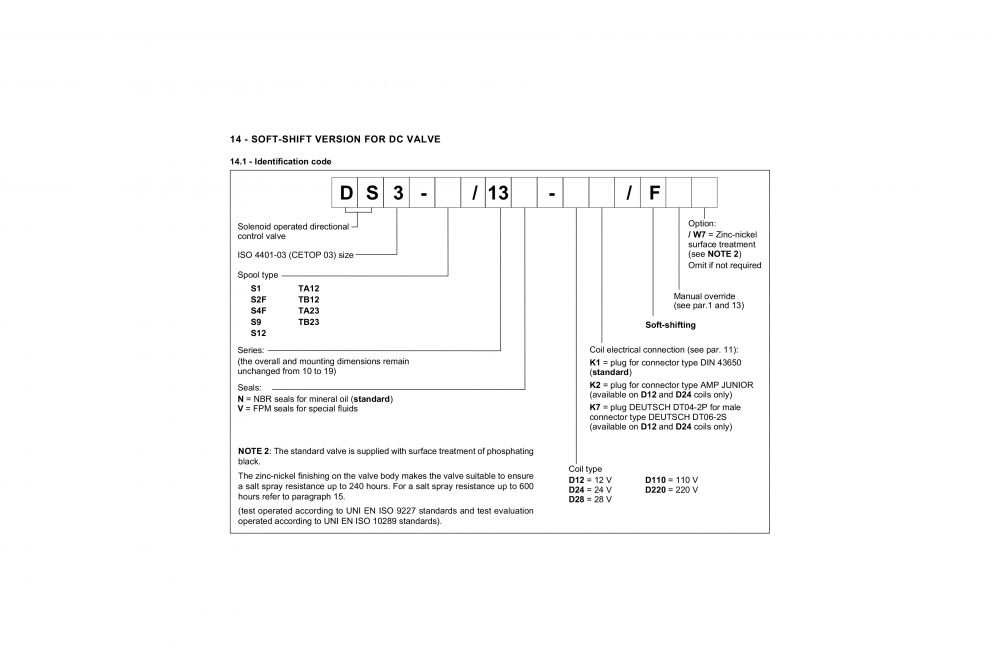

  • Duplomatic DS3 - Soft Shift DC Ordering Information

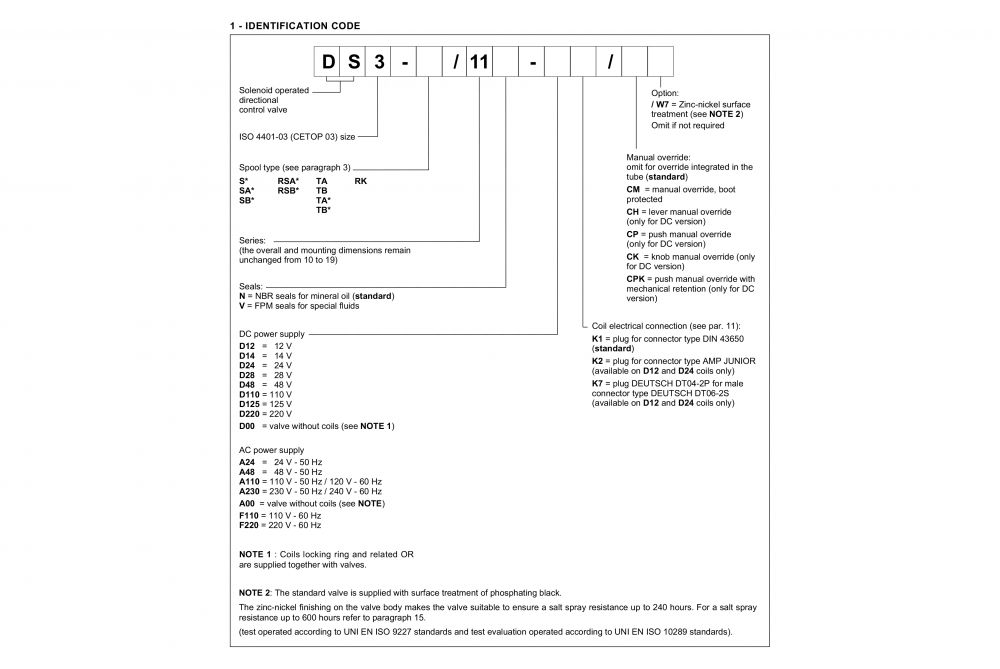

  • Duplomatic DS3 - Ordering Information
  • Duplomatic DS3 - High Corrosive Ordering Information
  • Duplomatic DS3 - DC Mounting Dimensions
  • Duplomatic DS3 - AC Mounting Dimensions

Duplomatic DS3 – Solenoid Operated Directional Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

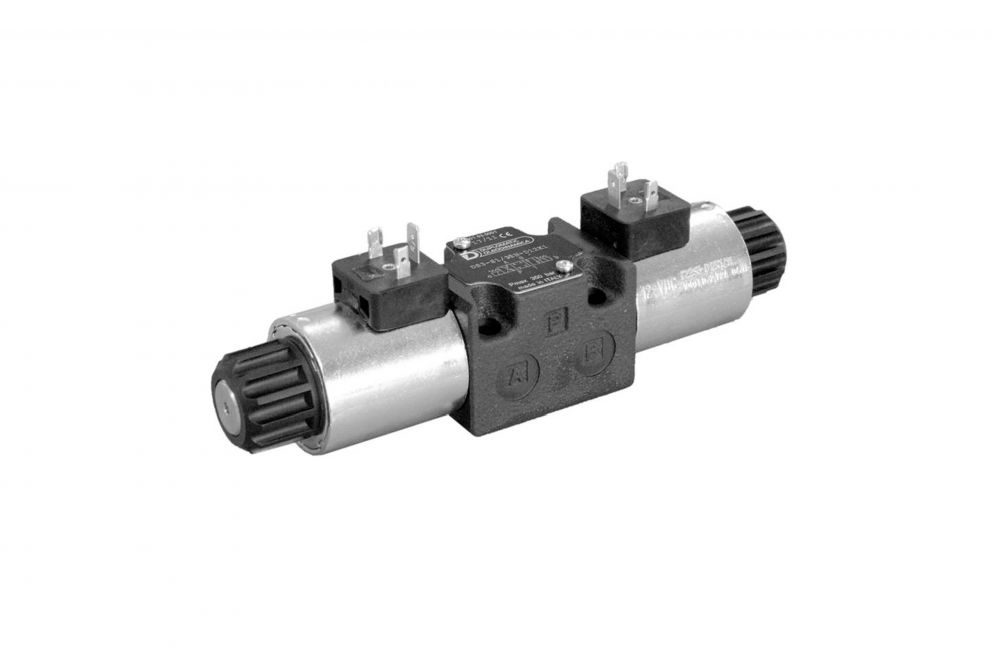

The Duplomatic DS3 direct acting, subplate mounting directional control hydraulic valve, CETOP 03, with mounting surface according to ISO 4401 (CETOP RP121H) standards.

The valve is supplied with 3 or 4 ways designs, with 2 or 3 positions with a wide range of interchangeable spools.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with interchangeable coils are used.

The valve is available with DC or AC solenoids. DC solenoids can also be fed with AC power supply, by using connectors with a built-in rectifier bridge.

The DC valve is also available in a soft-shifting version.

Alternative to the standard manual override there are lever, push, boot and mechanical detent devices.

Product Specification

Description CC CA
Maximum Operating Pressure – Ports P – A – B 350 bar 350 bar
Maximum Operating Pressure – Port T 210 bar 160 bar
Maximum Flow Rate 100 l/min 100 l/min
Electrical Connections DIN 43650 DIN 43650
Ambient Temperature Range -20 / + 50°C -20 / + 50°C
Fluid Temperature Range -20 / + 80°C -20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt
Single Solenoid Valve Mass 1,5 kg 1,4 kg
Double Solenoid Valve Mass 2 kg 2 kg

Duplomatic – DS3 – Solenoid Operated Directional Control Valve – Data Sheet
