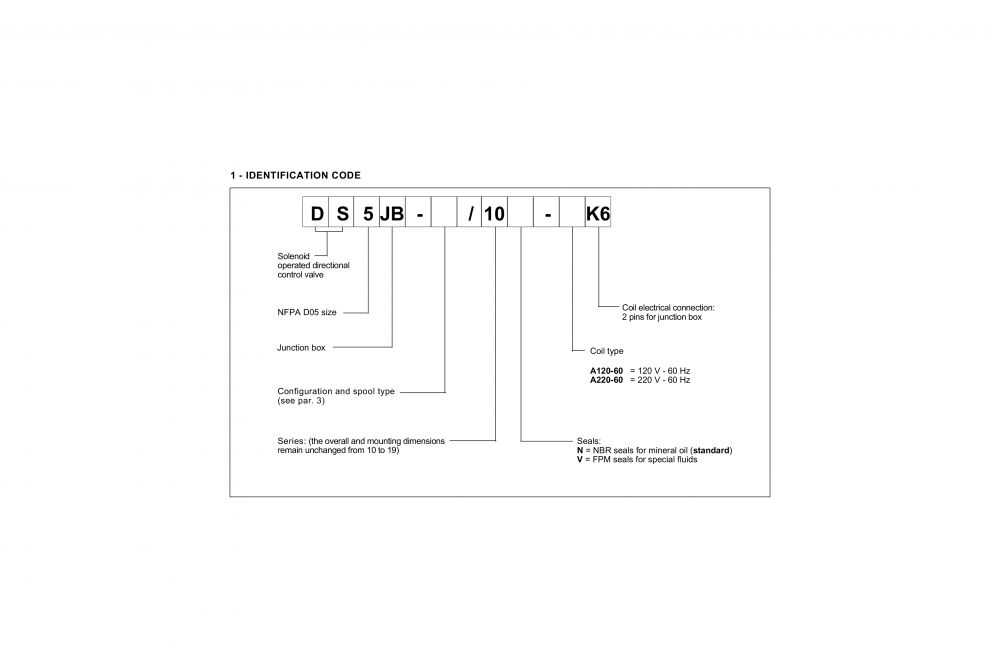

  • Duplomatic DS5JB - Ordering Information

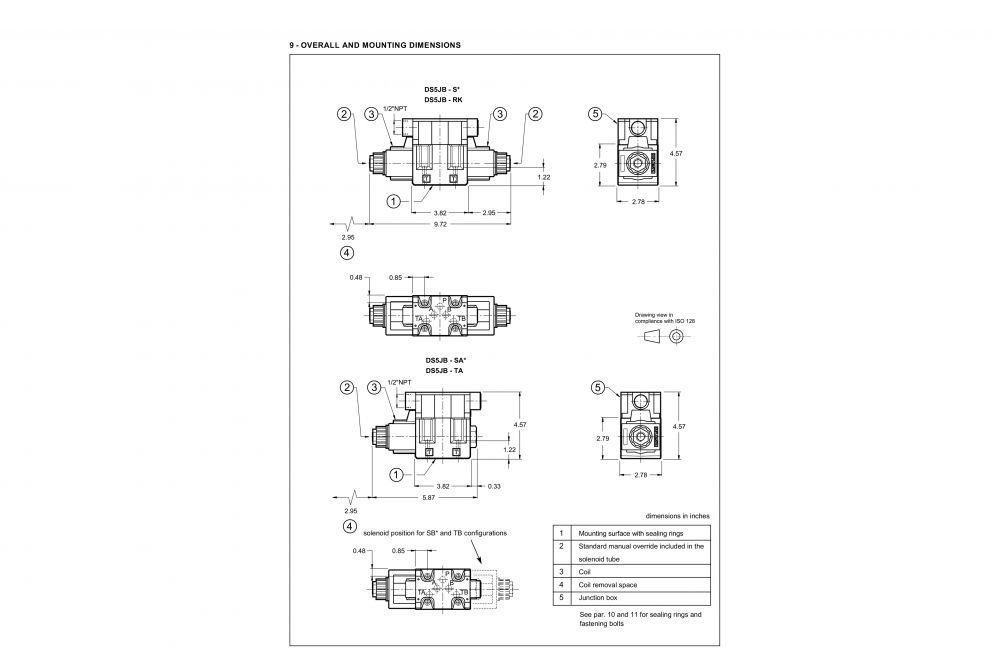

  • Duplomatic DS5JB - Mounting Dimensions

Duplomatic DS5JB – Solenoid Operated Directional Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

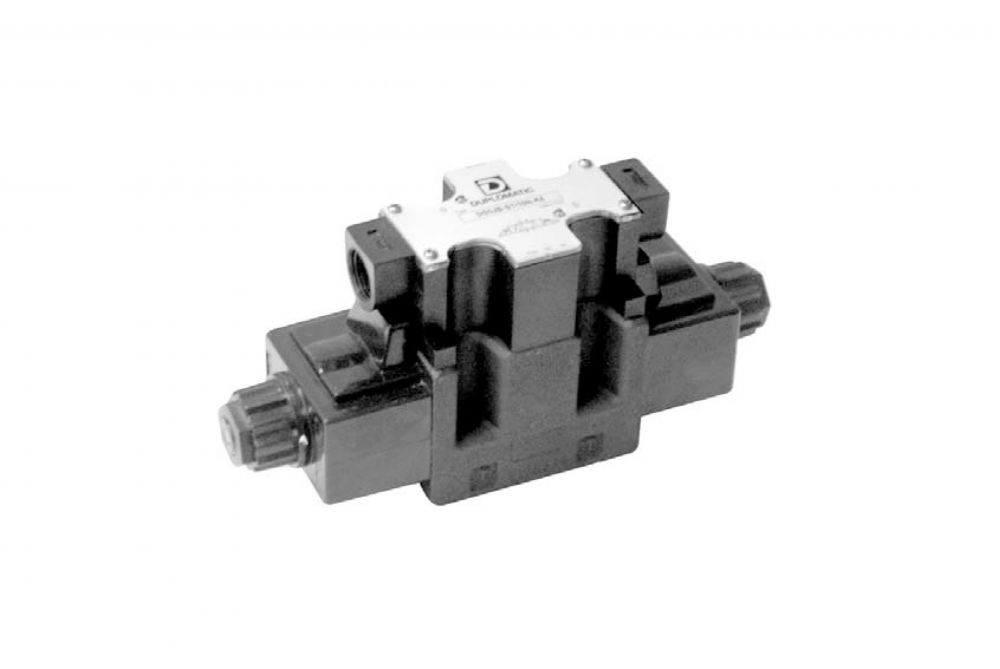

The Duplomatic DS5JB Direct acting, subplate mounting directional control valve, with mounting surface according to NFPA D05 standard.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop. Wet armature solenoids with easily removable interchangeable coils are used. It is supplied with junction box for the electrical connection.

The valve is supplied with 3 or 4 way designs and with several interchangeable spools with different porting arrangements.

The valve is available with AC solenoids.

Product Specification

Description Units
Maximum Operating Pressure – Ports P – A – B 4600 psi
Maximum Operating Pressure -T Port Standard Version 2000 psi
Maximum Flow Rate 32 gpm
Electrical Connections Junction Box
Ambient Temperature Range -4 / +125°F
Fluid Temperature Range -4 / +175°F
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999
Class 20/18/15
Recommended Viscosity 25 cSt
Single Solenoid Valve Mass 5,5 kg
Double Solenoid Valve Mass 7,5 kg

Duplomatic – DS5JB – Solenoid Operated Directional Control Valve – Data Sheet

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Direct Solenoid Operated
