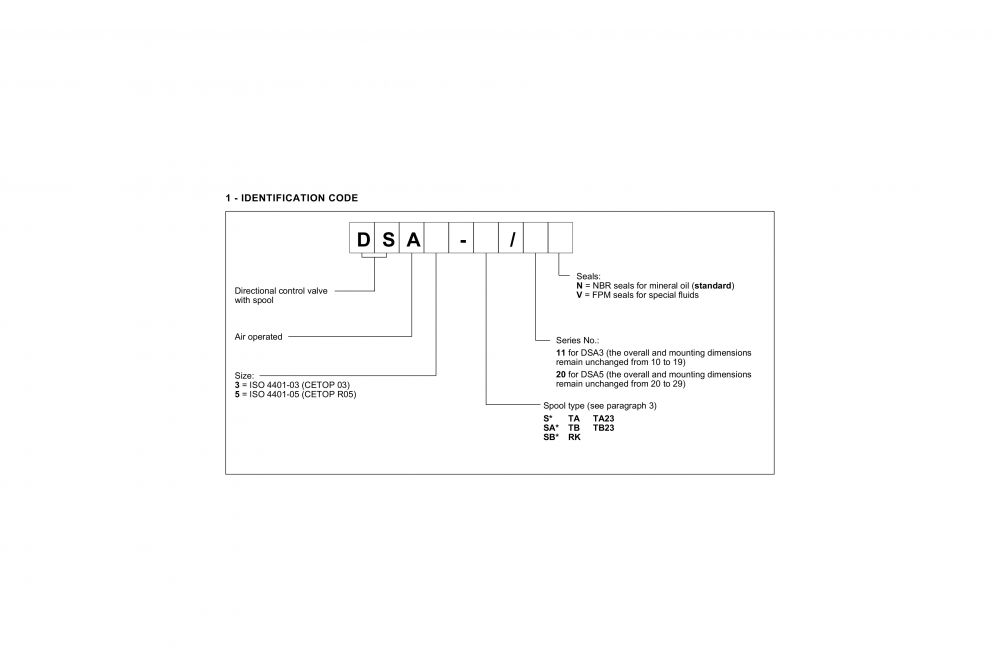

  • Duplomatic DSA - Ordering Information
  • Duplomatic - DSA Mounting Dimensions

Duplomatic DSA* – Pneumatically Operated Directional Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic DSA* are pneumatically operated directional control valves, available with 3 or 4 ways with several interchangeable spools  and with mounting interface according to ISO 4401 (CETOP RP121H) standards.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop.

It is available with 2 or 3 positions with return spring, or with 2 positions with mechanical retention.

The Y external drain is available (standard) for the ISO 4401-05 (CETOP R05) size and it must be connected when there is back pressure higher than 25 bar on the T port.

Product Specification

Description DSA3 DSA5
Maximum Working Pressure: P – A – B Ports 350 bar 350 bar
Maximum Working Pressure: T Port without Y external drain 25 bar 25 bar
Maximum Working Pressure: T Port with Y external drain (available for DSA5 only) 320 bar
Nominal Flow Rate 75 l/min 120 l/min
Ambient Temperature Range -20 / +50 °C -20 / +50 °C
Fluid Temperature Range -20 /+80 °C -20 /+80 °C
Fluid Viscosity Range 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15 According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt
Single Operator Valve Mass 1,3 kg 3,2 kg
Dual Operator Valve Mass 1,7 kg 4,0 kg

Duplomatic – DSA* – Pneumatically Operated Directional Control Valve – Data Sheet
