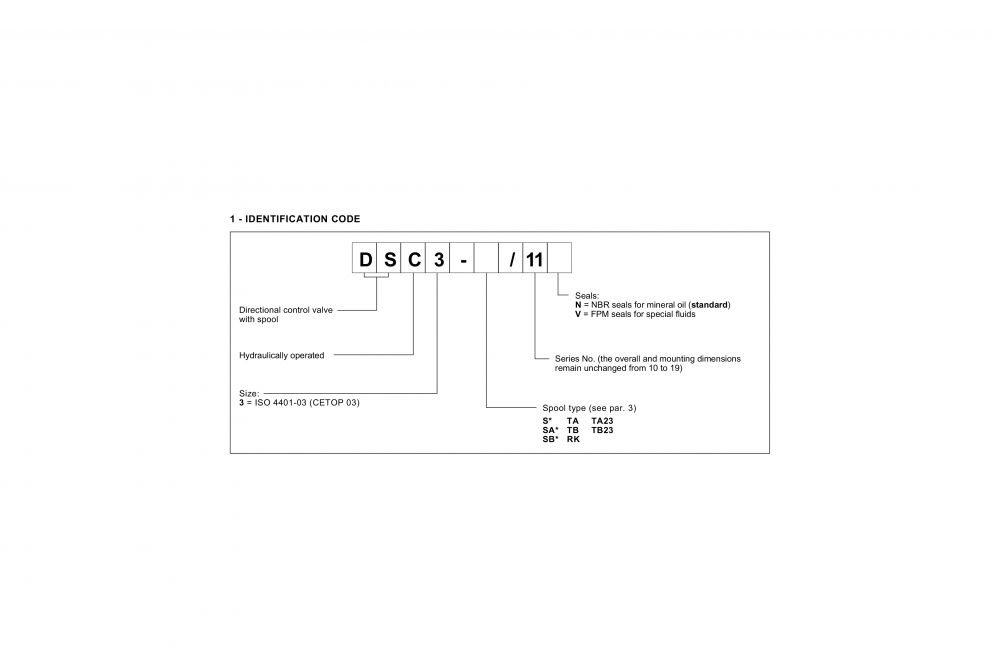

  • Duplomatic DSC3 - Ordering Information

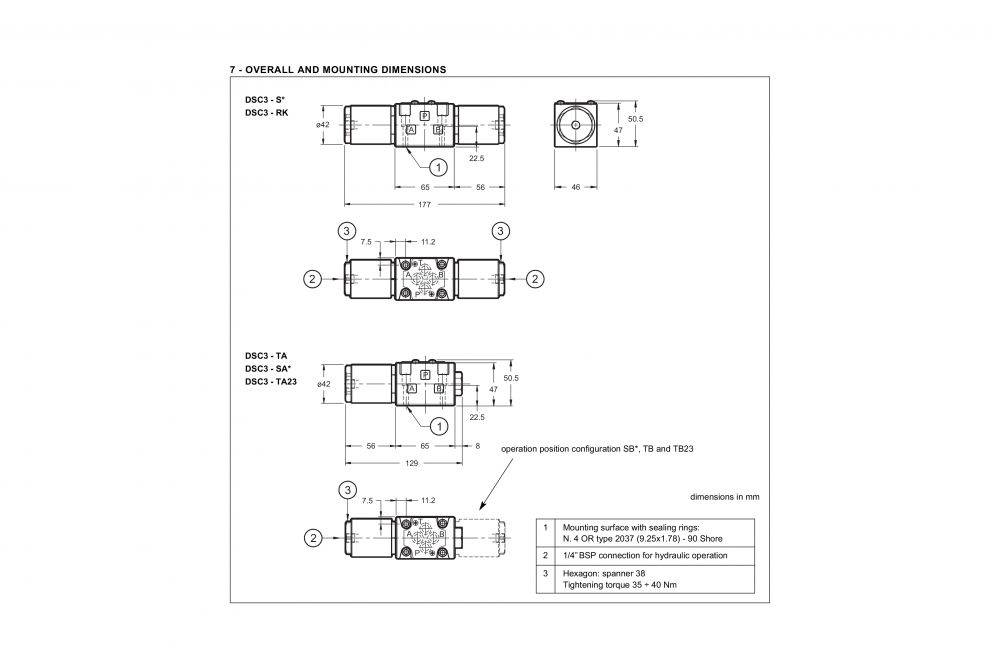

  • Duplomatic DSC3 - Mounting Dimensions

Duplomatic DSC3 – Hydraulically Operated Directional Control Valve

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

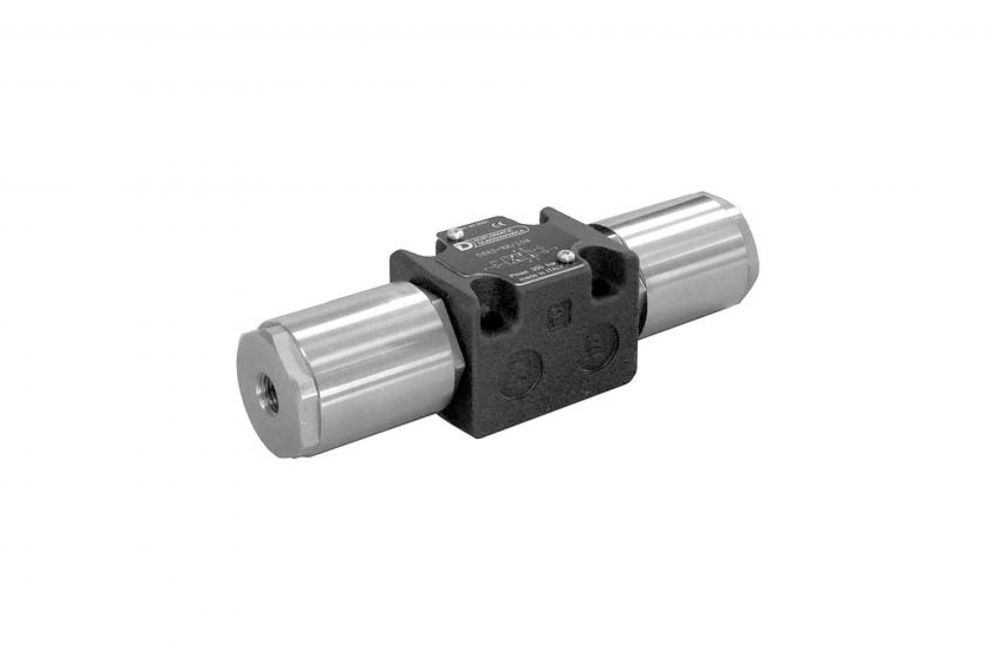

The Duplomatic DSC3 are hydraulically operated directional control valves, available with 3 or 4 ways with several interchangeable spools and with mounting interface according to ISO 4401 (CETOP RP121H) standards.

The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop.

It is available with 2 or 3 positions with return spring, or with two positions with mechanical retention.

Product Specification

Description Units
Maximum Working Pressure: P – A – B Ports 350 bar
Maximum Working Pressure: T Port 25 bar
Piloting Pressure – Min 15 bar
Piloting Pressure – Max 210 bar
Nominal Flow Rate 75 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 /+80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
Single Operation Valve Mass 1,4 kg
Double Operation Valve Mass 1,7 kg

Duplomatic – DSC3 – Hydraulically Operated Directional Control Valve – Data Sheet
