Duplomatic DSE3 – Directional Control Hydraulic Proportional Valves

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

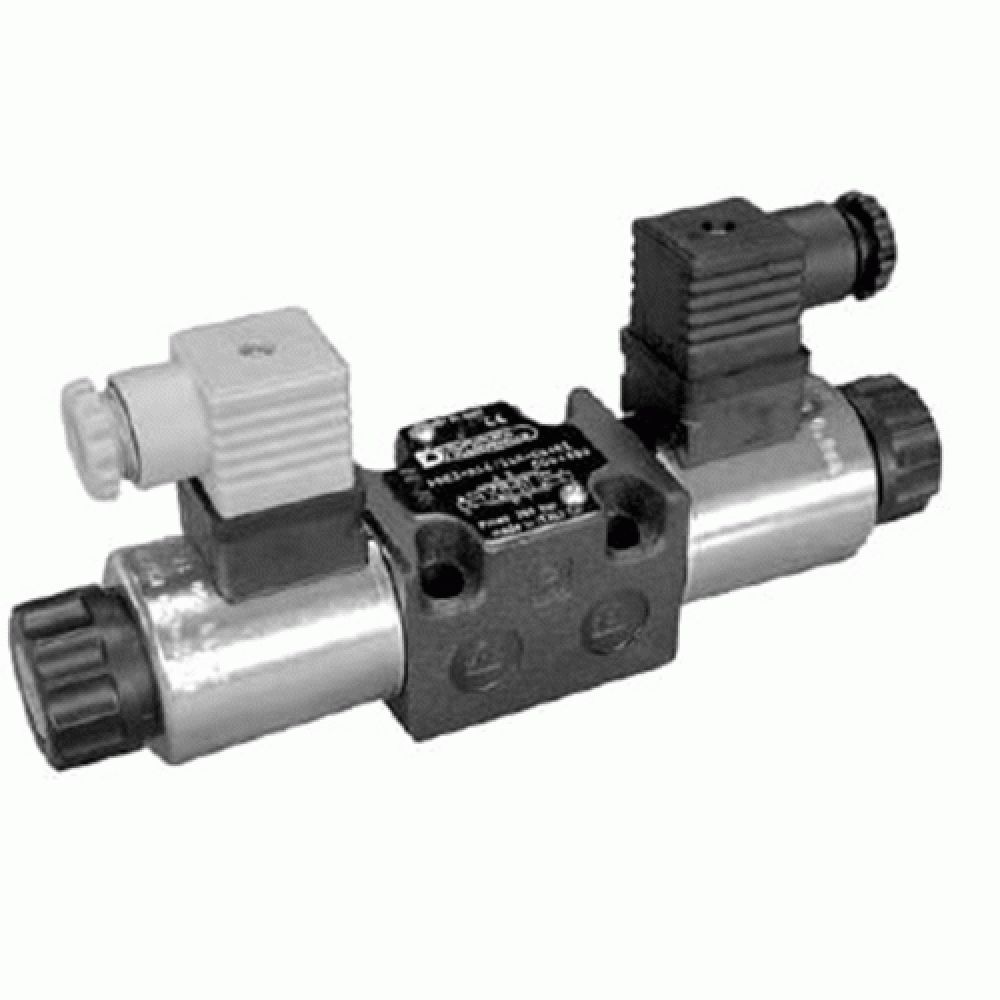

The Duplomatic DSE3 valve is a directly operated directional control proportional valve, CETOP 03, with ports in compliance with ISO 4401 standards (CETOP RP 121H).

It is used for directional and speed control of hydraulic actuators.

Valve opening and hence flow rate can be modulated continuously in proportion to the current supplied to the solenoid.

The valve can be controlled directly by a current control supply unit or by means of the relative electronic control units to exploit valve performance to the full.

Also available with manual lever override.

Product Specification

Description Units
Max Operating Pressure P – A – B Ports 350 bar
Max Operating Pressure T Port 210 Bar
Maximum Flow with 10 Bar P – T 1,3 – 4 – 8 – 16 – 26 l/min
Hysteresis (with PWM 200 Hz) < 6 % Q Max
Repeatability <+1.5 % of Q Max
Ambient Temperature Range -20 / + 60°C
Fluid Temperature Range – 20 / + 80°C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 18/16/13
Recommended Viscosity 25 cSt
Mass Single Solenoid Valve 1.6 Kg
Mass Double Solenoid Valve 2 Kg

Duplomatic – DSE3 – Directional Control Hydraulic Proportional Valves – Data Sheet

Additional Information

Manufacturer

Duplomatic

Proportional Products

Directional Control Without On-Board Control
