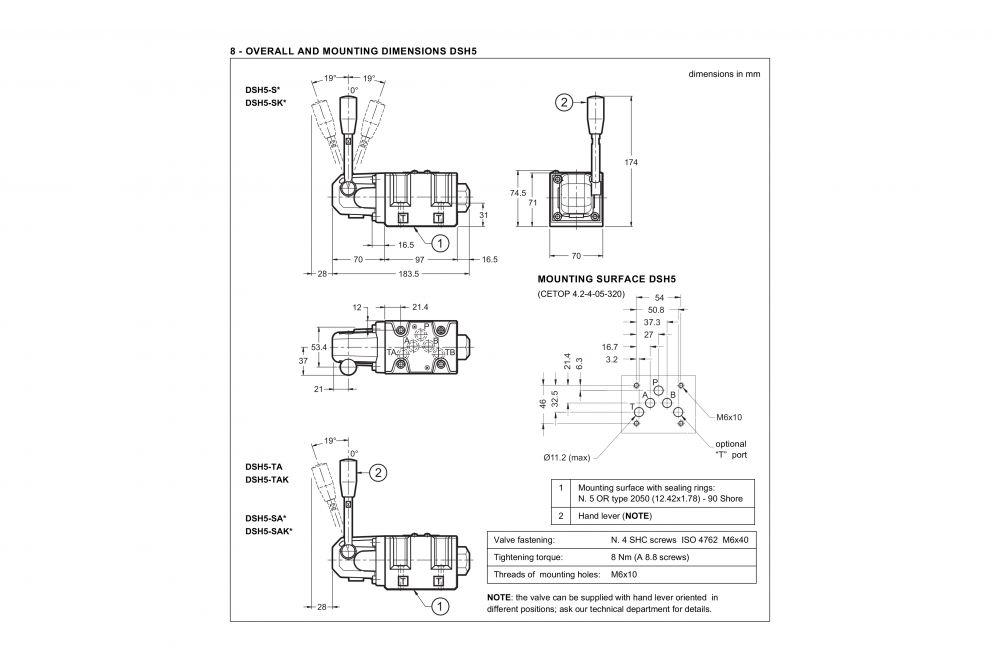

  • Duplomatic DSH5 - Mounting Dimensions

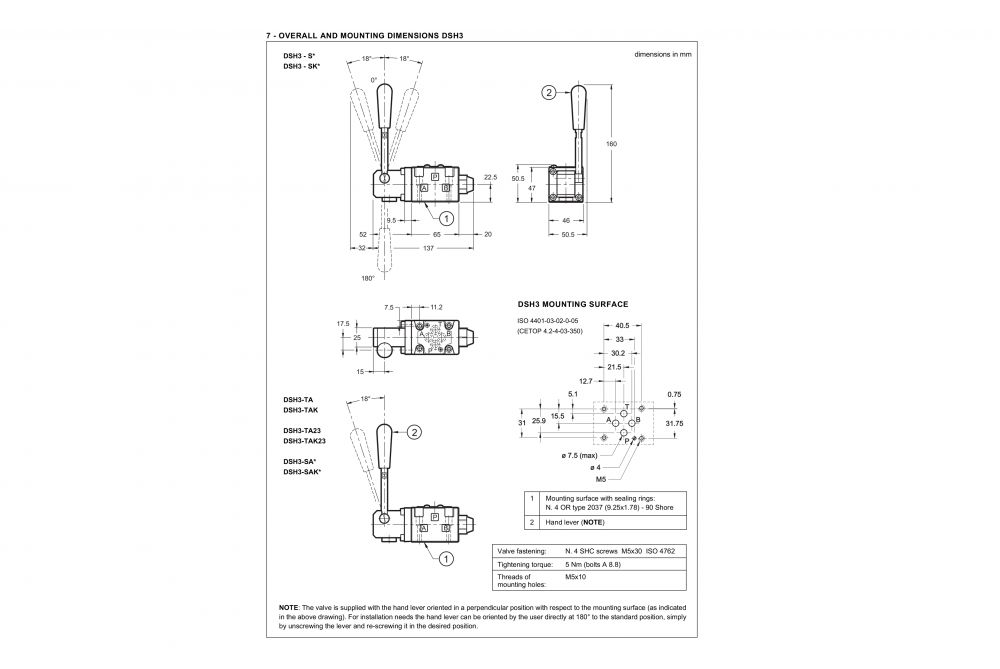

  • Duplomatic DSH3 - Mounting Dimensions
  • Duplomatic DSH - Ordering Information

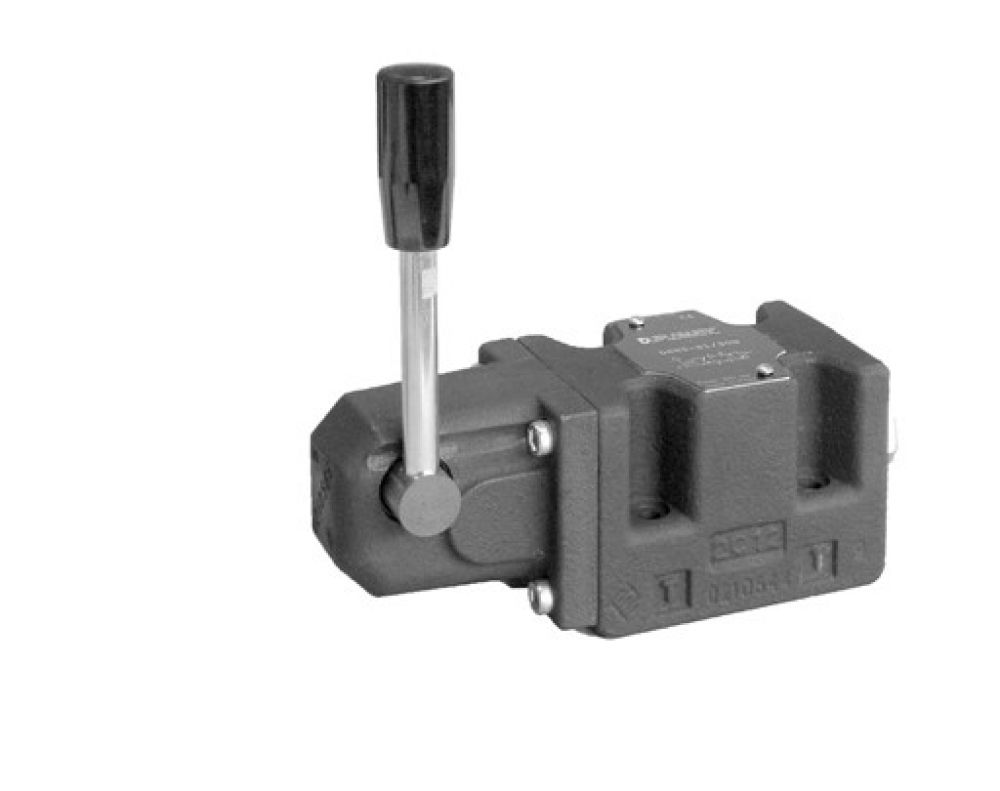

Duplomatic DSH* – Lever Operated Directional Control Valve

~ scroll down to find the part you need ~

Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.
The Duplomatic  DSH* are lever operated directional control valves, available with 3 or 4 ways and with several types of interchangeable spools.
The valve body is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop.
They are available with 2 or 3 positions with return spring or mechanical retention.
On DSH3 version is possible to rotate the lever (3) by 180° compared with the standard position, depending on installation requirements.

Product Specification

Description DSH3 DSH5
Maximum Working Pressure: P – A – B Ports 350 bar 320 bar
Maximum Working Pressure: T Ports 210 bar 160 bar
Nominal Flow Rate 75 l/min 150 l/min
Ambient Temperature Range -20 / +50 °C -20 / +50 °C
Fluid Temperature Range -20 /+80 °C -20 /+80 °C
Fluid Viscosity Range 10 ÷ 400 cSt 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15 According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt 25 cSt
Mass 2,1 kg 4,2 kg

Duplomatic – DSH* – Lever Operated Directional Control Valve – Data Sheet
