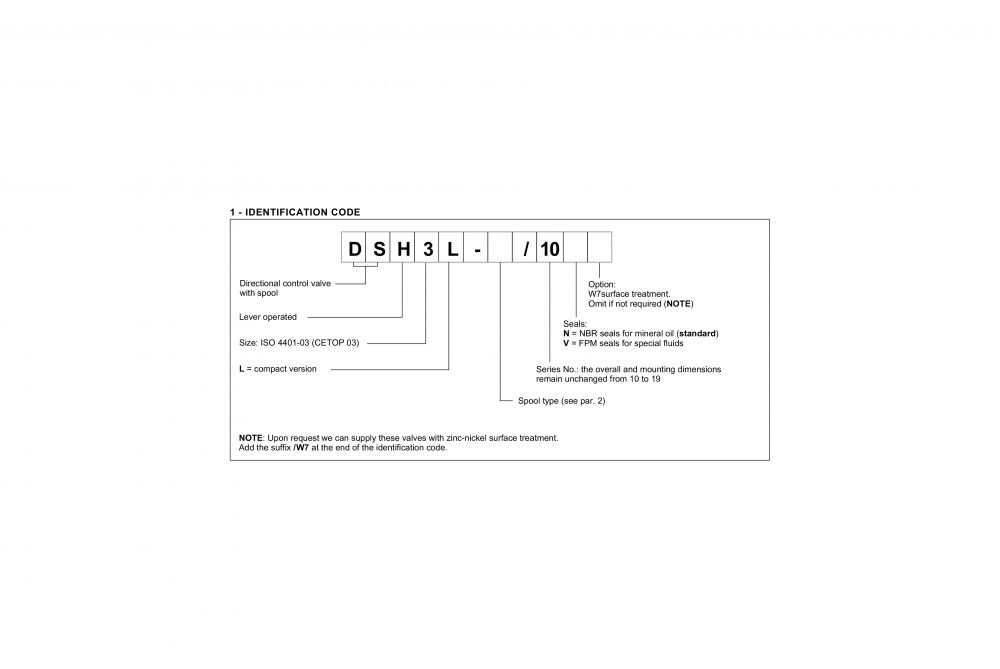

  • Duplomatic DSH3L - Ordering Information

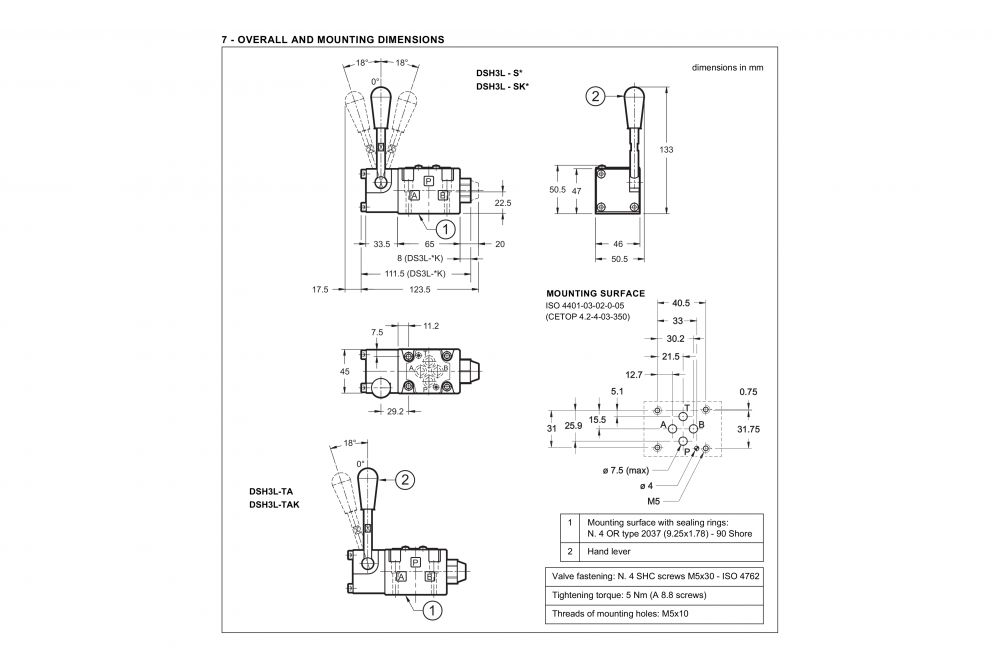

  • Duplomatic DSH3L - Mounting Dimensions

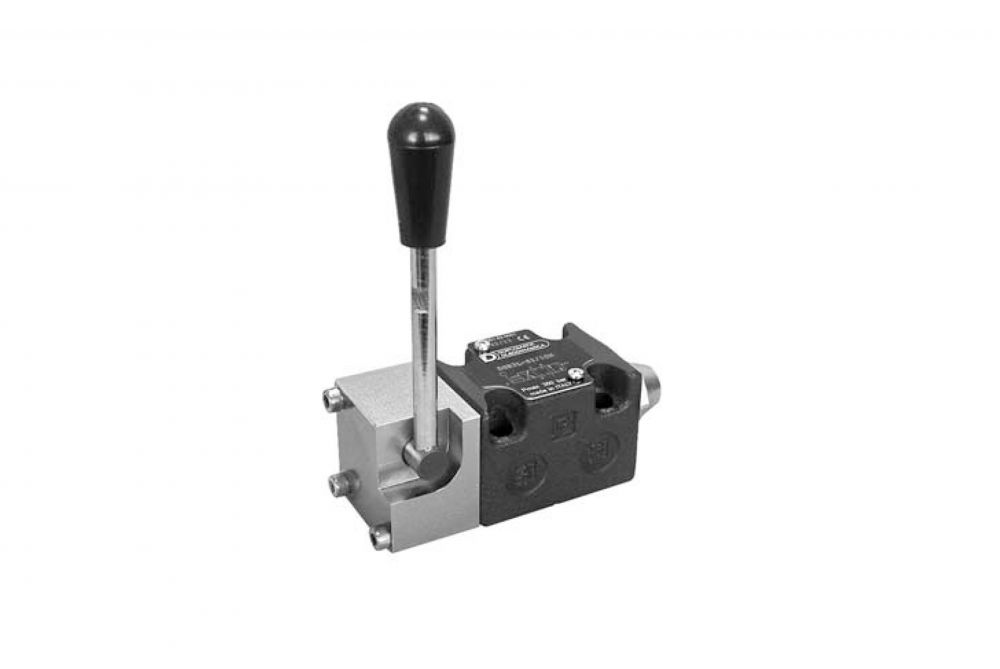

Duplomatic DSH3L – Lever Operated Directional Control Valves – Compact

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic DSH3L are lever operated directional control valves, available with the more common types of spools.

The valve body  is made with high strength iron castings provided with wide internal passages in order to minimize the flow pressure drop.

They are available with 2 or 3 positions with return spring or mechanical retention.

Upon request we can supply these valves with zinc-nickel surface treatment

Product Specification

Description Units
Maximum Working Pressure: P – A – B Ports 350 bar
Maximum Working Pressure: T Ports 210 bar
Nominal Flow Rate 60 l/min
Ambient Temperature Range -20 / +50 °C
Fluid Temperature Range -20 /+80 °C
Fluid Viscosity Range 10 ÷ 400 cSt
Fluid Contamination Degree According to ISO 4406:1999 Class 20/18/15
Recommended Viscosity 25 cSt
Mass 1,4 kg

Duplomatic – DSH3L – Lever Operated Directional Control Valves – Compact – Data Sheet
