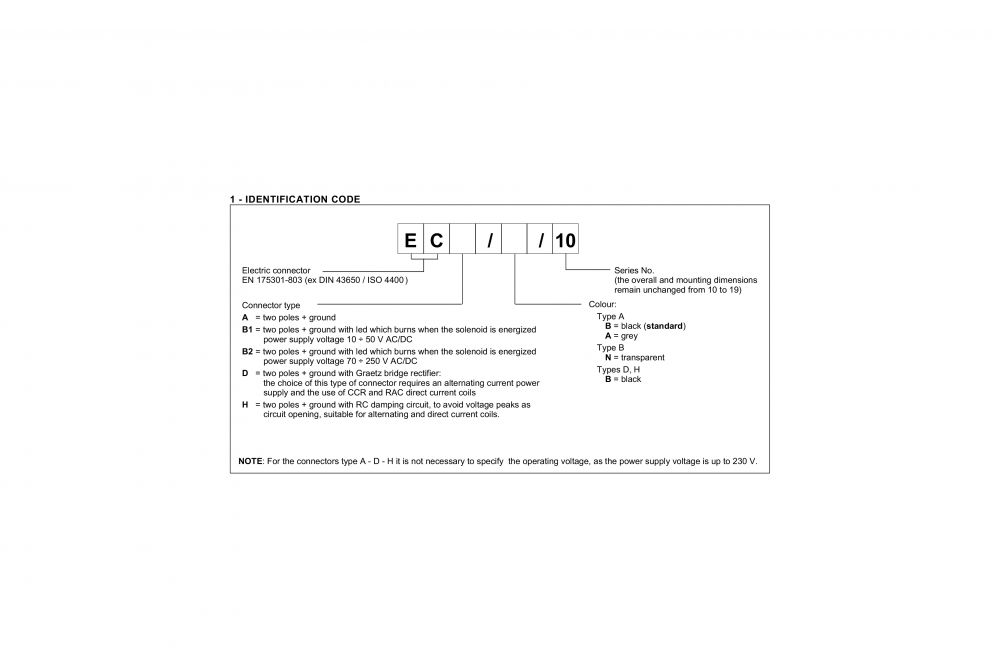

  • Duplomatic EC - Ordering Information

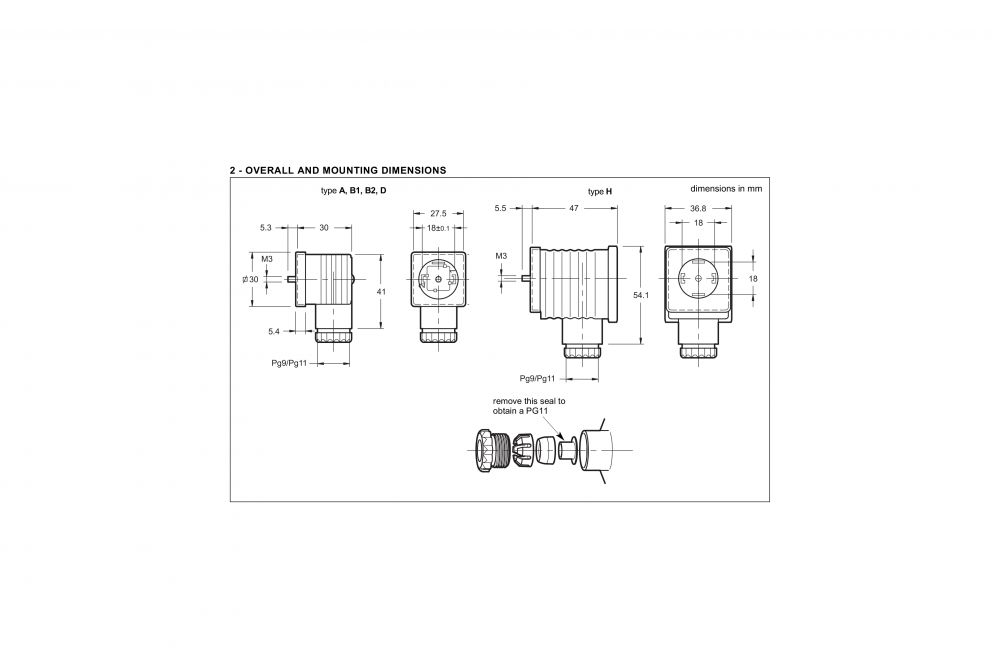

  • Duplomatic EC - Mounting Dimensions

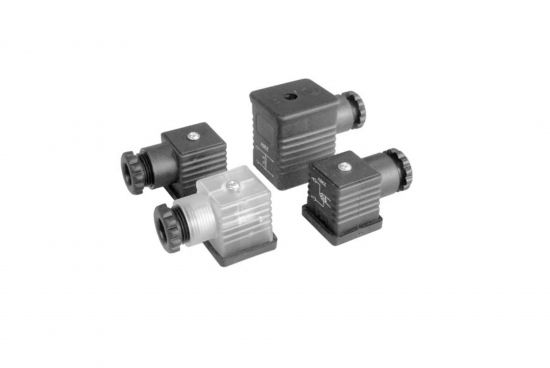

Duplomatic EC – Electrical Connectors

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The EC connectors, according to EN 175301-803, are in the model “A” configuration and are used mainly for the electrical connection of valve solenoids.

When they are correctly installed and coupled they provide waterproof protection according to IEC EN 60529 standards, class of protection IP65.

The class of insulation is therefore in compliance with IEC 60664-1:2007specifications, operating voltage up to 250 Volt.

The wire terminal block is removable from the external housing to allow the wire connections to the clamps, and to allow the electrical contacts can be turned through 90° (except version H) if required.

Four different types with specific functions are available:

  • type A, connector two poles + ground
  • type B*, with LED
  • (available voltages: 10 ÷ 50 and 70 ÷ 250V)
  • type D, with bridge rectifier
  • type H, with RC damping circuit

Type A is also available in gray colour, to differentiate the solenoids mounted on the side “A” or “B”.

They are supplied with M3 fixing screw and NBR gasket.

Product Specification

Description Type A Type B* Type D Type H
Voltage Supply Up to 230 V Dc/Ac 10 ÷ 50 / 70 ÷ 250  V Dc/Ac  Up to 230 V Dc/Ac   Up to 230 V Dc/Ac
Number of Poles 2 + Ground 2 + Ground  2 + Ground 2 + Ground
Nominal Current on Connections 10 A 10 A 10 A 10 A
Maximum Current on Connections 16 A  16 A 16 A 16 A
Contact Resistance  ≤ 4 mΩ  ≤ 4 mΩ  ≤ 4 mΩ  ≤ 4 mΩ
Maximum Conductor Size  1,5 mm  1,5 mm   1,5 mm  1,5 mm
Cable Exit  Pg9 / Pg11 Unified   Pg9 / Pg11 Unified  Pg9 / Pg11 Unified  Pg9 / Pg11 Unified
Electromagnetic Compatibility (EMC) According to 2004/108/CE According to 2004/108/CE According to 2004/108/CE According to 2004/108/CE
Low Voltage According to 2006/95/CE According to 2006/95/CE According to 2006/95/CE According to 2006/95/CE
Protection Degree IP 65 – IEC 60529 IP 65 – IEC 60529  IP 65 – IEC 60529 IP 65 – IEC 60529
Insulation Class  Class C (IEC 60664-1:2007-04)  Class C (IEC 60664-1:2007-04) Class C (IEC 60664-1:2007-04) Class C (IEC 60664-1:2007-04)
Operating Temperature -40 / +90°C -40 / +90°C -40 / +90°C -40 / +90°C

Duplomatic – EC – Electrical Connectors – Data Sheet
