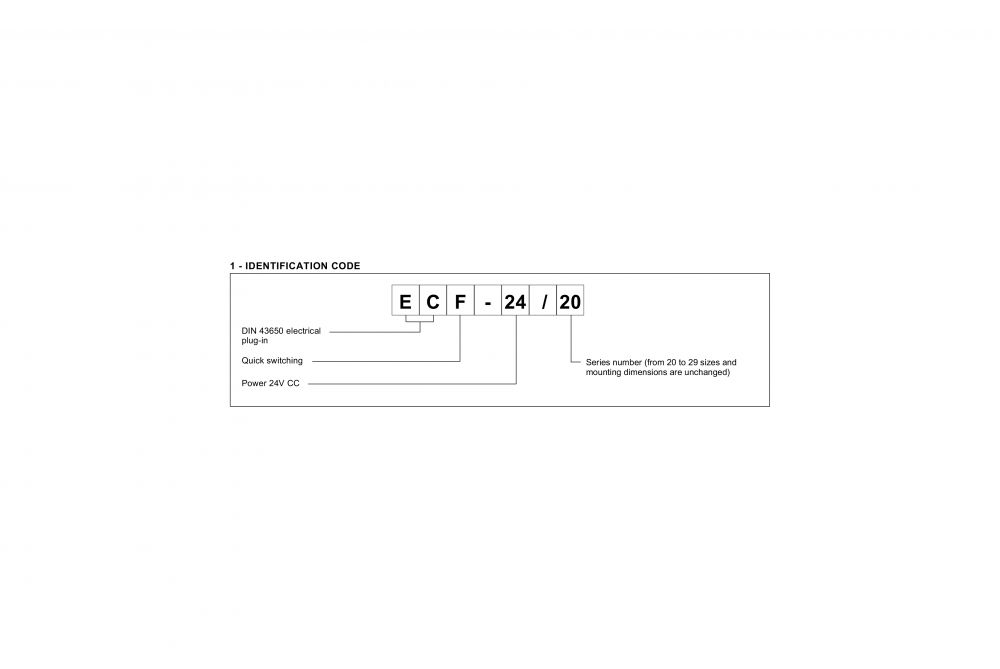

  • Duplomatic ECF - Ordering Information

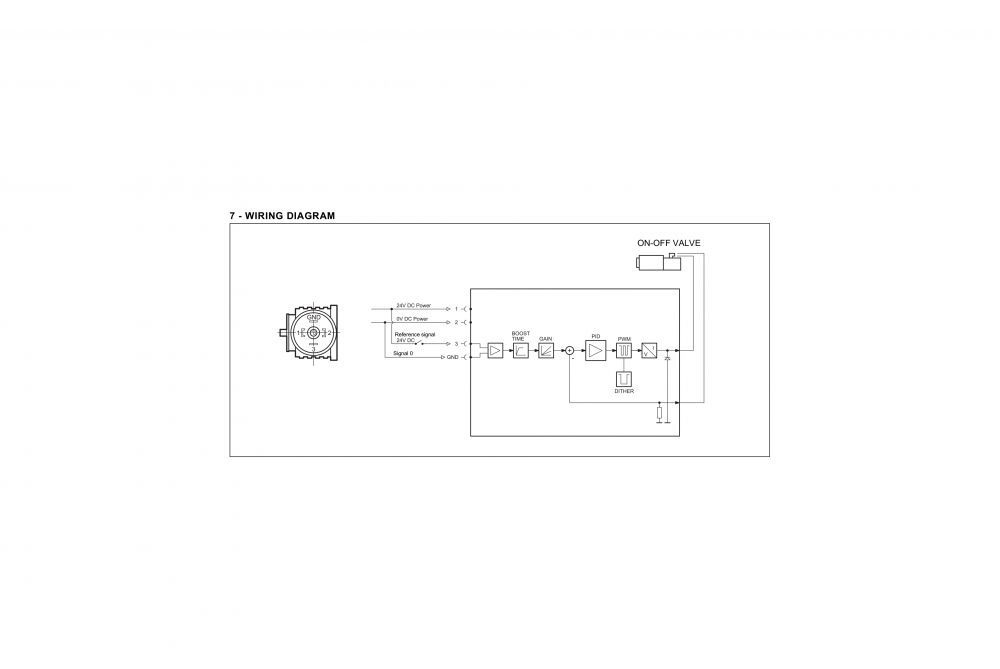

  • Duplomatic ECF - Wiring Diagram
  • Duplomatic ECF - Mounting Dimensions

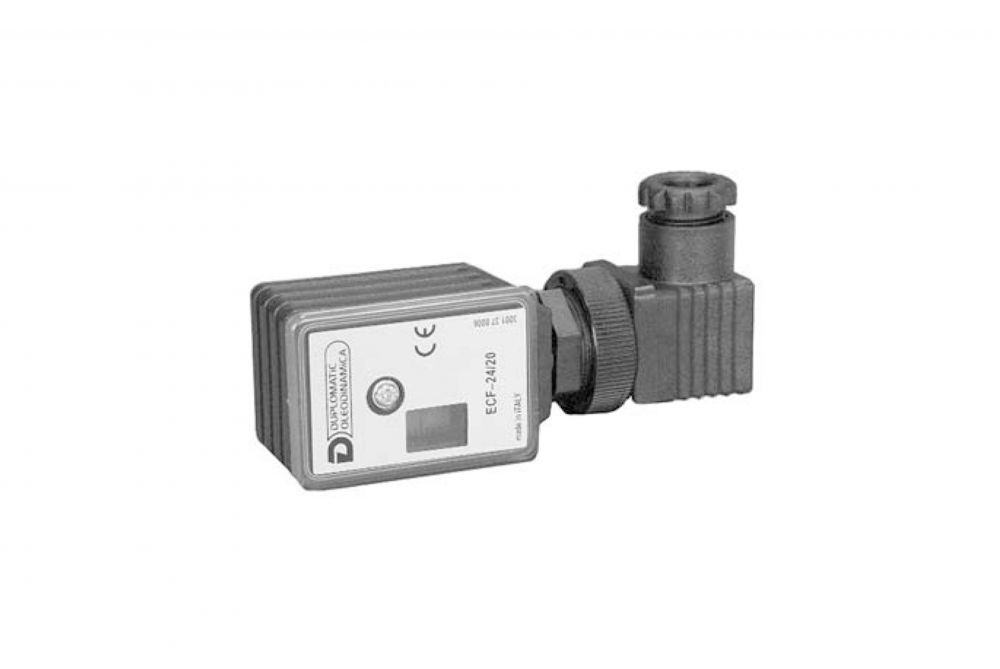

Duplomatic ECF – Amplified Connector for On – Off Single Solenoid Valves

~ scroll down to find the part you need ~
Duplomatic Oleodinamica represents the real alternative in the hydraulics market.

Duplomatic’s wide range of products and worldwide service network, grant its users a real competitive advantage.

The Duplomatic ECF connector is a digital amplifier controlling open loop on-off valves.

The unit supplies a set current independently from temperature variations or load impedance.

A quick solenoid energizing is possible in two different ways, according to the used coil type (12V o 24V).

Setting is possible by buttons and display inside the case, or with a PC by RS232 with the software EDC-PC.

Product Specification

Description Units
Power Supply 24 ÷ 30 Ripple Included
Required Power Min 50 -Max 150 W
Output Current Max 3000 mA
Power Supply Electrical Protections – Overload Over 33V
– Polarity Inversion
Output Electrical Protections Short-Circuit
Analogue Electrical Protections Up to 30 V DC
Reference Signal 24 VDC
Connector Type DIN 43650
Electromagnetic Compatability (EMC) – Emissions CEI EN 61000-6-4 According to 2004/108/CE Standards
Electromagnetic Compatability (EMC) – Immunity CEI EN 61000-6-4 According to 2004/108/CE Standards
Protection to Atmospheric Agents IP 65 – 67
Operating Temperature Range -20 / +70 °C
Mass 0,10 Kg

Additional Information

Manufacturer

Duplomatic

Directional Control Valves

Accessories

Duplomatic – ECF – Amplified Connector for On – Off Single Solenoid Valves – Data Sheet
