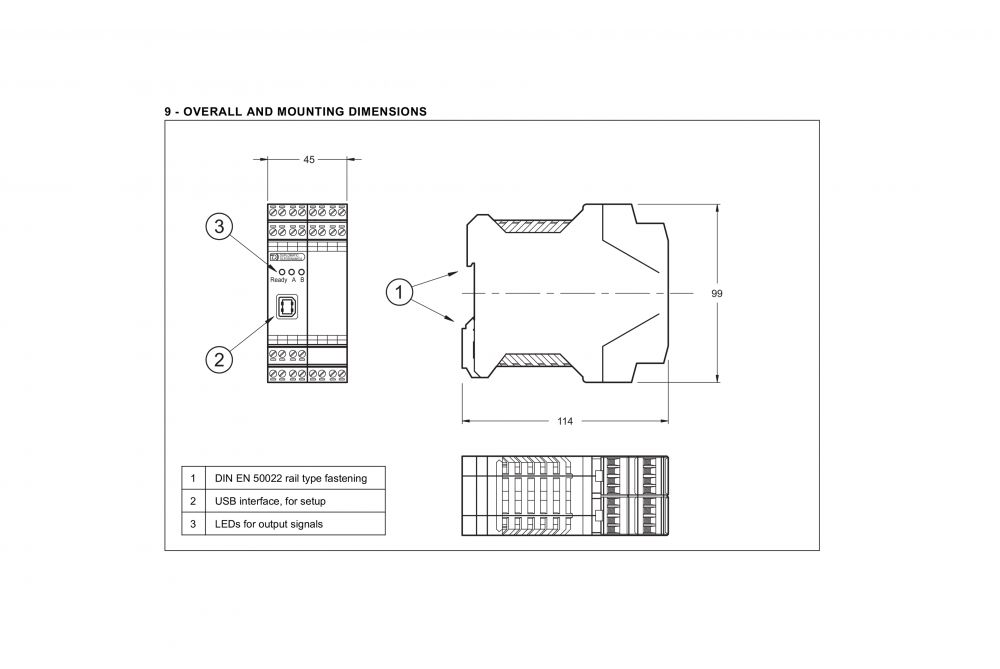

  • Duplomatic EWM-ST-AA - Analogue Positioning Card Mounting Dimensions

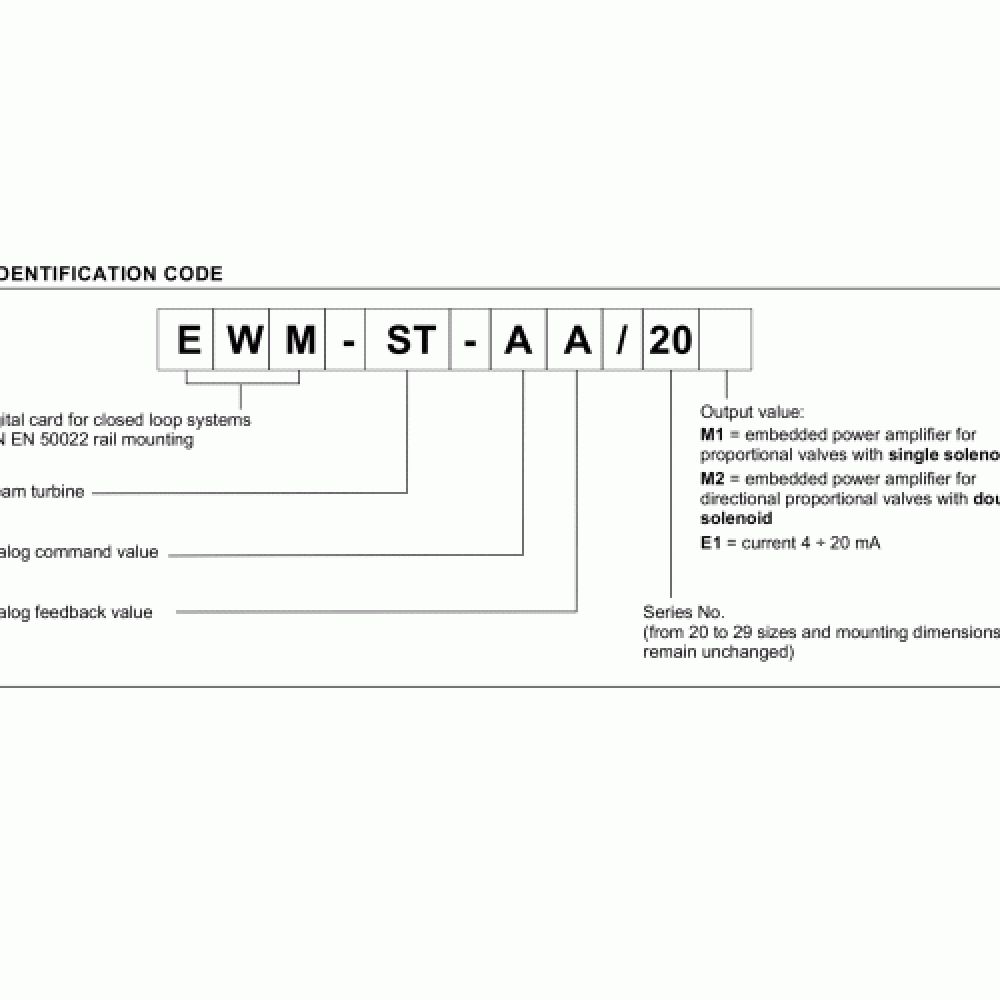

  • Duplomatic EWM-ST-AA - Analogue Positioning Card Ordering Information
  • Duplomatic EWM-ST-AA - Analogue Positioning Card Wiring Diagram

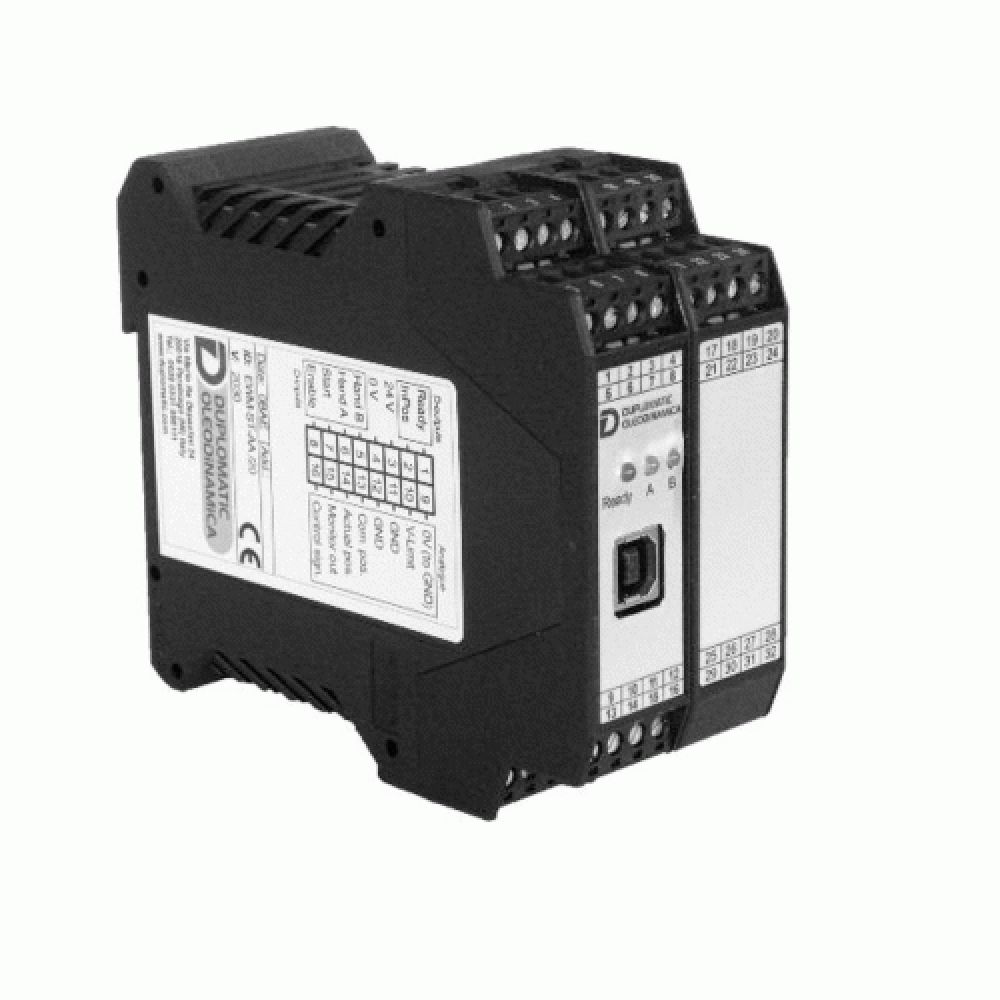

Duplomatic EWM-ST-AA – Analogue Positioning Card with Analogue Feedback

~ scroll down to find the part you need ~
Duplomatic Oleodinamica designs and produces a complete range of hydraulic components that are suitable for all application sectors of both industrial and mobile fields.

The Duplomatic EWM-ST-AA Positioning card is designed for steam turbine application. It allows easy stroke positioning control of hydraulic actuators in closed loop systems.

  • Card setup via software only, through an on-board USB-B port.
  • The card has a monitor output to DCS.
  • It’s available with integral power amplifier or current output.

Product Specification

Description Units
Power Supply 12 ÷ 30 V DC Ripple Included
Fuse, External M1 and M2 3A Medium Time Lag
Fuse, External E1 1A Medium Time lag
Current Consumption M1 and M2 3 A
Current Consumption E1 < 100 mA
Command Position 4 ÷ 20 mA (Rι = 240 Ω)
0 ÷ 10 V (Rι = 25 kΩ)
Position Accuracy 0.001%
Command Speed 4 ÷ 20 mA (Rι = 240 Ω)
0 ÷ 10 V (Rι = 90 kΩ)
Feedback Value 4 ÷ 20 mA (Rι = 240 Ω)
0 ÷ 10 V (Rι = 25 kΩ)
Output Value M1 and M2 500 ÷ 2600 mA
Output Value E1 4 ÷ 20 mA
Sample Time 1 ms
Interface USB-B 2.0
Electromagnetic Compatibility (EMC) 2004/108/EC Immunity EN 61000-6-2
Emissions EN 61000-6-4
Housing Material Thermoplastic Polyamide PA6.6 – Combustibility Class VO (UL94)
Housing Dimensions 120(d) x 99(h) x 46(w)mm
Connections USB-B (2.0) – 7 x 4 Poles Screw Terminals – PE direct via DIN rail
Operating Temperature Range -20 / +60 °C
Protection Degree IP 20

Duplomatic – EWM-ST-AA – Analogue Positioning Card with Analogue Feedback – Data Sheet

Duplomatic – EWM-ST-AA – Analogue Positioning Card with Analogue Feedback – Start-Up Manual

Additional Information

Manufacturer

Duplomatic

Electronic Control Modules

Axes Positioning
